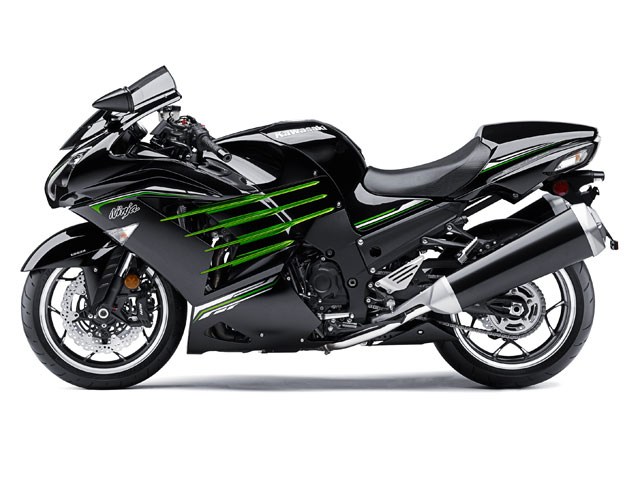

2013 Kawasaki NINJA® ZX™-14R

2013 Kawasaki NINJA® ZX™-14R

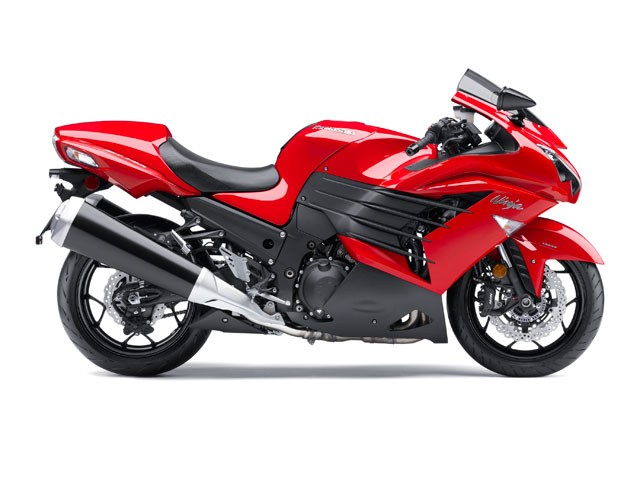

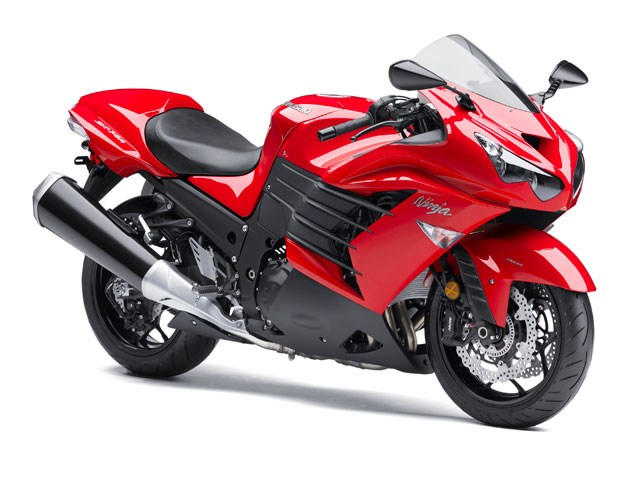

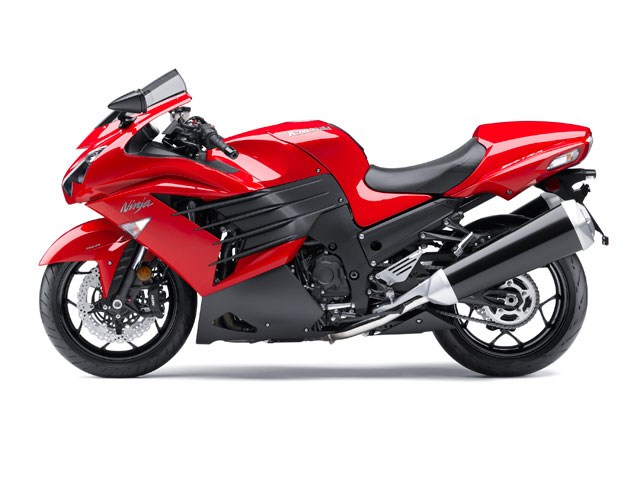

Passion Red
MSRP: $14,999.00
Manufacturer: Kawasaki
Condition: New

Description

The massively more powerful, R-designated, Ninja® ZX™-14R made its debut last year as an almost entirely new motorcycle. It remains on-top for 2013, reigning as the undisputed king of the sportbike world. New optional ABS brakes complement its amazing comfort and usability on the street, and help increase its appeal to a wide range of riders. It has to be tough competing against a machine like the ZX-14R, year after year, and continuous refinements have kept it several steps ahead of the sportbike competition, all while filling enthusiasts’ face shields with wild, ear-to-ear grins.

Key Features

  • Massively powerful 1,441cc inline-four engine is the strongest motorcycle engine Kawasaki has ever produced and delivers the most power of any current production sportbike in the world
  • KTRC traction-control system features three different modes for varying conditions and is controlled by a handy switch assembly on the left handlebar
  • Slipper clutch assembly controls rear-wheel torque effects while braking and downshifting
  • Exhaust system features tapered head pipes, a catalyzer and an efficient muffler assembly for low noise and emissions
  • Aluminum monocoque frame is narrow, strong and rigid for impressive sport riding performance
  • Aluminum swingarm assembly is longer than traditional designs and features strengthening gussets to cope with the engine’s substantial torque
  • Supersport bodywork package builds upon the slick aesthetic image of the previous machine, includes a rear seat cowl and adds better air management to the mix for improved rider and passenger comfort
  • All-new 10-spoke wheels are more than 3 pounds lighter in total than the previous machine’s units; this reduces unsprung weight, which aids handling and maneuverability
  • New disc material and pads improve the 14R’s radial-mount braking system
  • Revised suspension settings front and rear add wheel control and compliance to an already plush ride
  • Higher overall finish quality than before, including hidden bodywork fasteners

Specifications

Specifications

Engine
Four-stroke, liquid-cooled, DOHC, four valve per cylinder, inline-four
Displacement
1,441 cc
Bore x Stroke
84.0 x 65.0 mm
Compression Ratio
12.3:1
Fuel System
DFI® with four 44mm Mikuni throttle bodies
Ignition
TCBI with Digital Advance
Transmission
Six-Speed
Final Drive
X-Ring Chain
Rake/Trail
23 degrees / 3.7 in.
Front Tire Size
120/70 ZR17
Rear Tire Size
190/50 ZR17
Wheelbase
58.3 in.
Front Suspension / wheel travel
43mm inverted cartridge fork with adjustable preload, 18-way compression and 15-way rebound damping adjustment / 4.6 in.
Rear Suspension / wheel travel
Bottom-link Uni-Trak® and gas-charged shock with adjustable preload, stepless rebound and compression damping adjustments, adjustable ride height / 4.9 in.
Front Brakes
Dual semi-floating 310 mm petal discs with dual radial-mounted four-piston calipers and optional ABS
Rear Brakes
Single 250mm petal disc with twin-piston caliper and optional ABS
Overall length
85.4 in.
Overall width
30.3 in.
Overall height
46.1 in.
Ground clearance
4.9 in.
Seat Height
31.5 in.
Curb Weight
584.3 lbs.
Fuel Capacity
5.8 gal
Color(s)

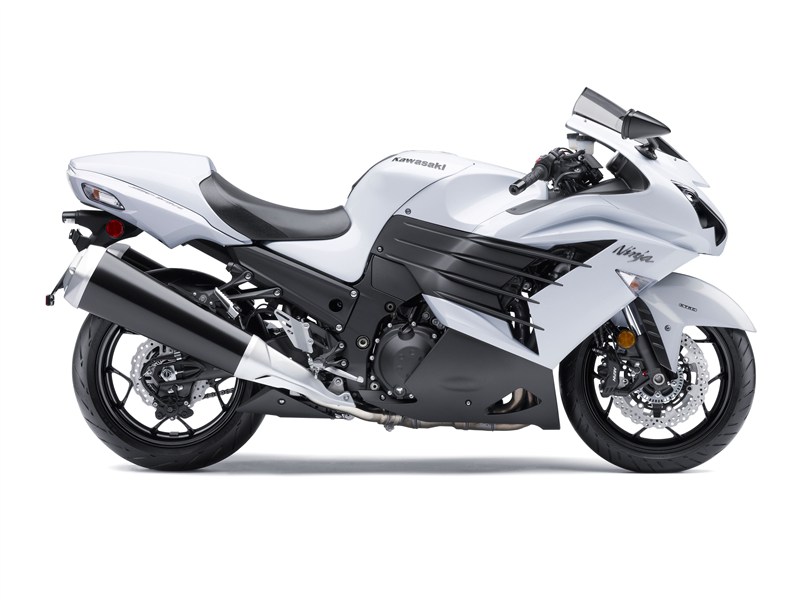

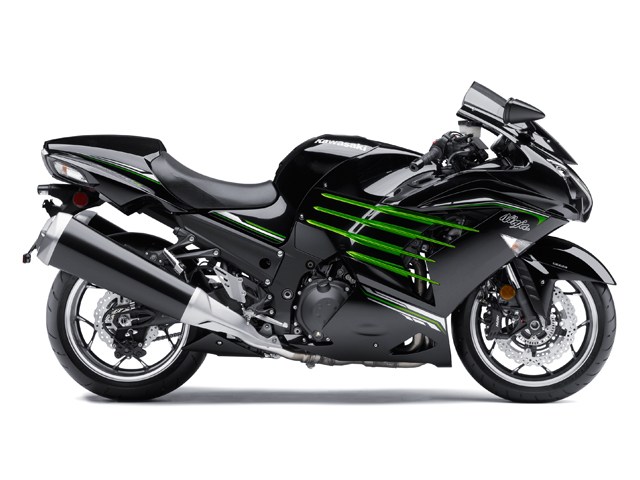

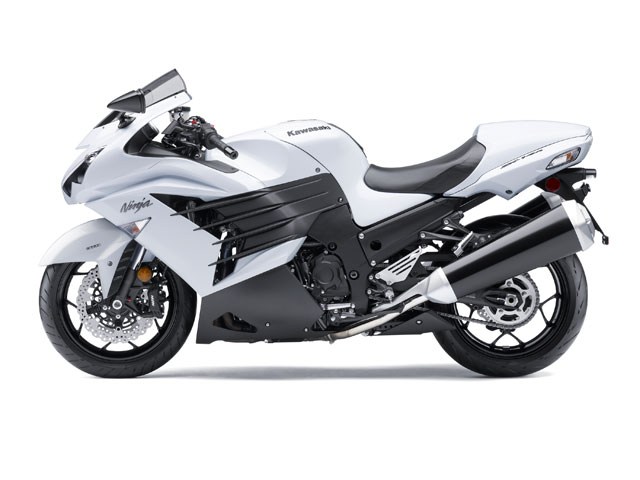

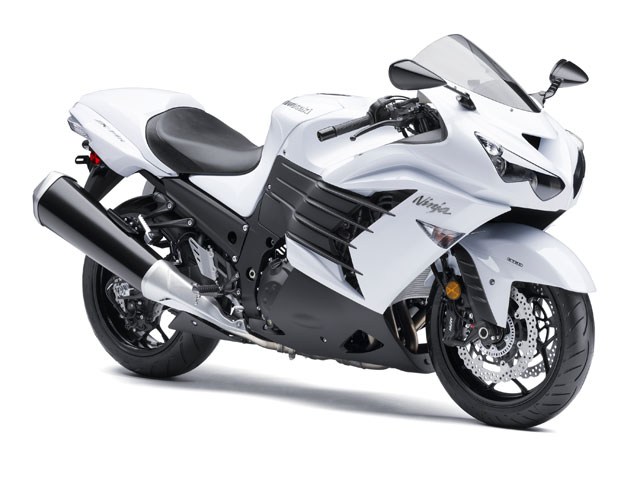

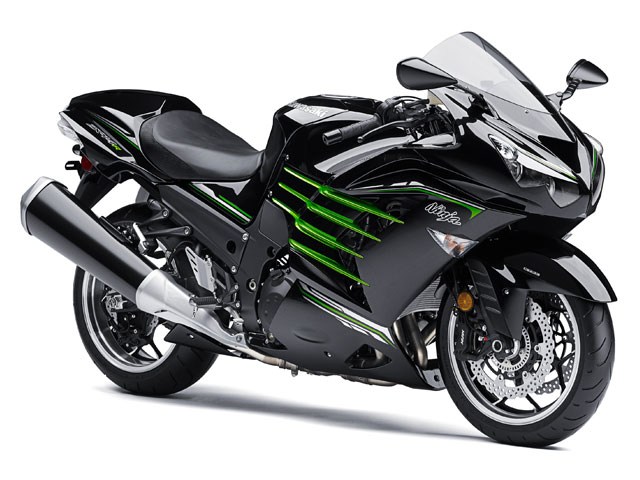

Passion Red, Pearl Stardust White, Metallic Spark Black/Golden Blazed Green (SE)
Warranty
12 months
Good Times™ Protection Plan
12, 24, 36 or 48 months


Features

Key Features

  • Massively powerful 1,441cc inline-four engine is the strongest motorcycle engine Kawasaki has ever produced and delivers the most power of any current production sportbike in the world
  • KTRC traction-control system features three different modes for varying conditions and is controlled by a handy switch assembly on the left handlebar
  • Slipper clutch assembly controls rear-wheel torque effects while braking and downshifting
  • Exhaust system features tapered head pipes, a catalyzer and an efficient muffler assembly for low noise and emissions
  • Aluminum monocoque frame is narrow, strong and rigid for impressive sport riding performance
  • Aluminum swingarm assembly is longer than traditional designs and features strengthening gussets to cope with the engine’s substantial torque
  • Supersport bodywork package builds upon the slick aesthetic image of the previous machine, includes a rear seat cowl and adds better air management to the mix for improved rider and passenger comfort
  • All-new 10-spoke wheels are more than 3 pounds lighter in total than the previous machine’s units; this reduces unsprung weight, which aids handling and maneuverability
  • New disc material and pads improve the 14R’s radial-mount braking system
  • Revised suspension settings front and rear add wheel control and compliance to an already plush ride
  • Higher overall finish quality than before, including hidden bodywork fasteners

1,441cc Four-cylinder Liquid-Cooled DOHC Engine

  • Long-stroke design, ported cylinder heads, lightweight forged pistons, and aggressive camshaft profiles provide more torque and power throughout the rev range than any other production sportbike
  • Piston jet system sprays a continuous stream of cooling lubrication to the underside of each piston for cooler running temperatures, more consistent power output and excellent long-term durability
  • Strong cam chain and tensioning system offers excellent high-rpm durability
  • Thick 40mm crankshaft main journals contribute to long-term engine durability
  • Surface and heat treatments allow the transmission gears to better harness the engine’s prodigious power output
  • Chrome composite-plated aluminum cylinder bores are lightweight, durable, and effectively transfer heat away from the combustion chamber and piston for maximum durability at high power outputs
  • Mechanical noise is kept to a minimum via special piston profiles and a urethane insulation sheet on the inside of the magnesium chain cover

High-flow Exhaust System

  • Header assembly has tapered-diameter pipes for optimal engine response and power output
  • The internal construction of the dual mufflers minimizes the impact of noise and emissions regulations, while maintaining impressive top-end power
  • Airflow directed into the exhaust by the large secondary air ports in the cylinder head and head cover, plus a third honeycomb catalyzer in the exhaust collector, help meet strict Euro III emissions standards

Gear-driven Dual Engine Balancers

  • Revised balance weights keep the newly dimensioned engine (more stroke) in ideal balance, resulting in improved comfort for riders and passengers
  • Already in perfect primary balance, the ZX-14R’s engine design features dual secondary balancers that virtually eliminate unwanted vibrations for extremely smooth operation and reduced rider fatigue

Ram Air Induction

  • Central ram air duct in the newly shaped fairing draws cooler, higher-pressure air from the face of the fairing and efficiently guides it through the larger and more efficient air cleaner and into the reworked engine for maximum power output

Digital Fuel Injection

  • DFI® throttle body assembly features individual 44mm throttle bodies fitted with an idle speed control and sub-throttle valves controlled by the 32-bit ECU. They provide precise response, smooth performance, automatic idle speed adjustment, and help the bike meet strict Euro III emissions requirements
  • High performance intake tract porting optimizes flow characteristics
  • Fuel injectors deliver lateral spray at a 20-degree angle to disperse the finely atomized (75-micron droplet size) fuel over a wide area

Dual-Mode Digital Ignition

  • Rider selectable High & Low maps offer a choice between full power and approximately 50 percent power output to help suit changing conditions
  • Digital Timing Advance enhances low
  • and mid-range power
  • Individual spark plug-mounted ignition coils fire each of the four spark plugs independently to achieve the optimum timing for that cylinder
  • ECU includes an idle speed control system for easier starting and warm-up

KTRC Traction Control

  • KTRC traction-control system features three different selectable modes to suit rider preference and different riding conditions

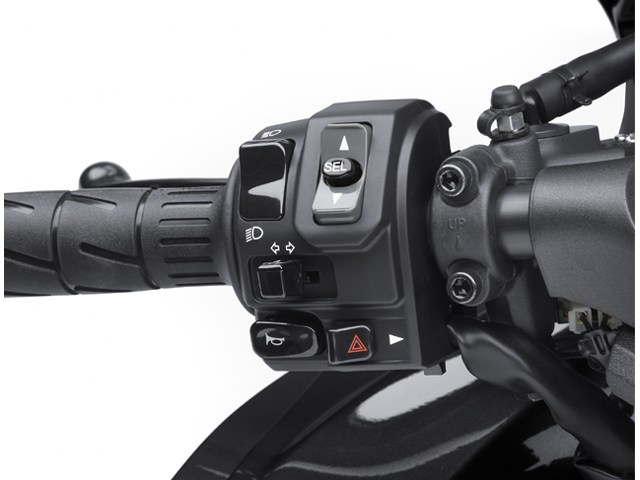

  • Modes are selected by a handy switch assembly on the left handlebar
  • Modes are indicated on the LCD cockpit display

Back-Torque Limiting “Slipper” Clutch

  • Back-torque limiting “slipper” clutch assembly helps control rear-wheel torque effects while downshifting or coasting to minimize wheel hop, chatter and reduce rider stress

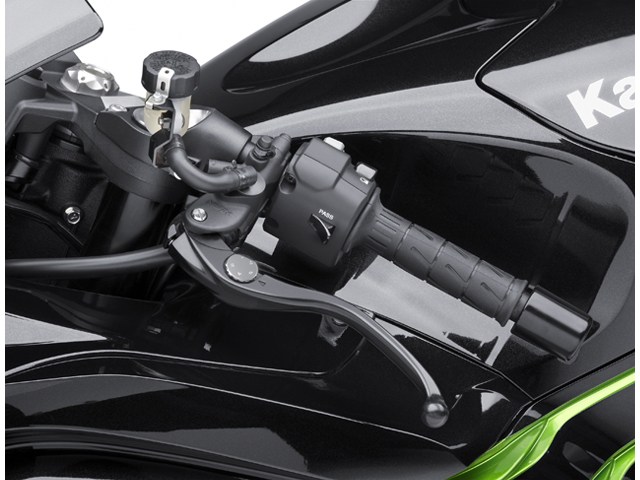

  • Radial-pump hydraulic clutch master cylinder offers smooth and precise engagement and optimal feel at the lever

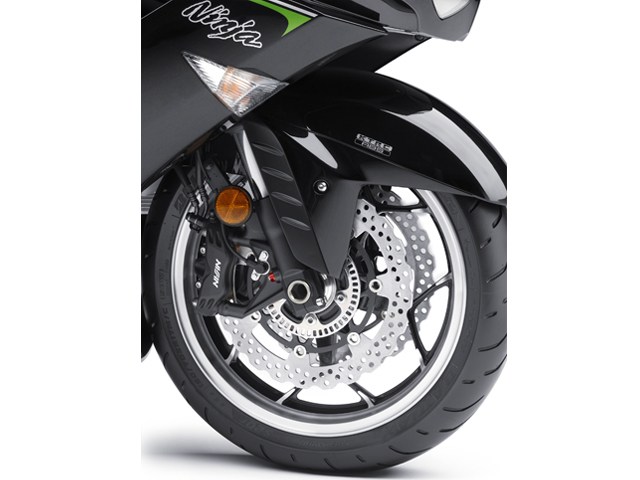

Petal-type Discs with Radial-mount Calipers and Optional ABS

  • ABS brakes offer excellent performance and enhanced confidence in adverse conditions
  • Compact, lightweight ABS unit is highly effective without weighing the bike down
  • Petal-type brake rotors provide better cooling and enhanced warp resistance than traditional discs
  • Radial mounted four-piston front brake calipers offer greater rigidity than traditional caliper mounting to improve brake feel
  • A separate brake pad is used for each piston. Individual pads provide increased cooling efficiency and can absorb more heat without deforming so they maintain a consistent brake feel longer
  • Radial-pump front brake master cylinder provides excellent lever feel and feedback

Monocoque Aluminum Frame

  • Lightweight monocoque frame is a hollow aluminum box that arches over the engine from the steering head to the swingarm pivot. It is narrow, strong, rigid and very light
  • Many of the frame’s cast aluminum sections – steering head and swingarm pivot areas – are produced via a die-casting process for weight savings
  • Rigidly mounted engine is a stressed frame member, which increases the frame’s torsional rigidity and saves weight vs. traditional designs
  • Engine is positioned forward in the frame, with the long wheelbase and front/rear weight balance carefully designed to achieve high-speed stability and responsive handling
  • Long swingarm design helps maximize forward drive and is gusseted to better cope with the engine’s healthy torque output
  • Massive head pipe casting contributes to frame rigidity
  • Frame houses the air box and air filter in a space-saving design that simplifies air cleaner maintenance
  • Battery is also housed within the frame and is easily accessible through an aluminum frame cover

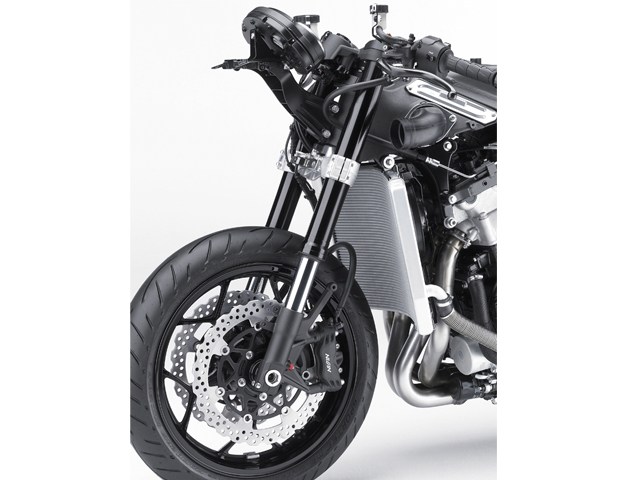

Comfortable Sporting Suspension

  • Inverted and multi-adjustable 43mm cartridge-type fork provides excellent wheel control and without sacrificing ride comfort
  • Stepless damping adjustment allows ultra-precise tuning of fork reactions
  • Fully adjustable bottom-link Uni-Trak® rear suspension is a compact design that offers premium control and feedback
  • Linkage rates designed to allow linear suspension action and excellent wheel control
  • Bottom-link design helps create a lower center of gravity, which makes the motorcycle more nimble

Aggressive Supersport Bodywork

  • Monocoque frame is positioned over the engine so the sleek fairing is uninterrupted by protruding frame spars, adding to the extremely long and low styling

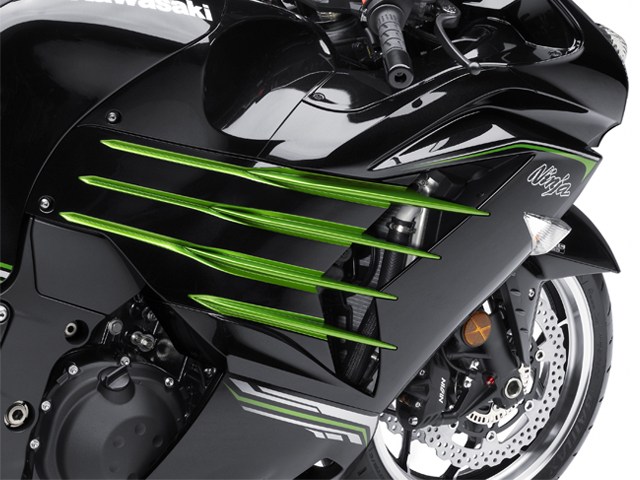

  • Efficient fairing venting offers excellent engine-heat control to help maintain rider and passenger comfort on hot days

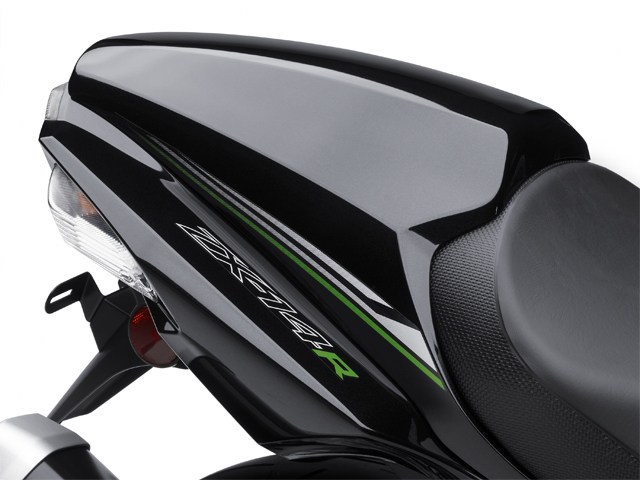

  • Standard rear-seat cowl adds aesthetic appeal
  • Both the front and rear turn signals are integrated into the bodywork and have clear lenses to enhance for a more modern appearance

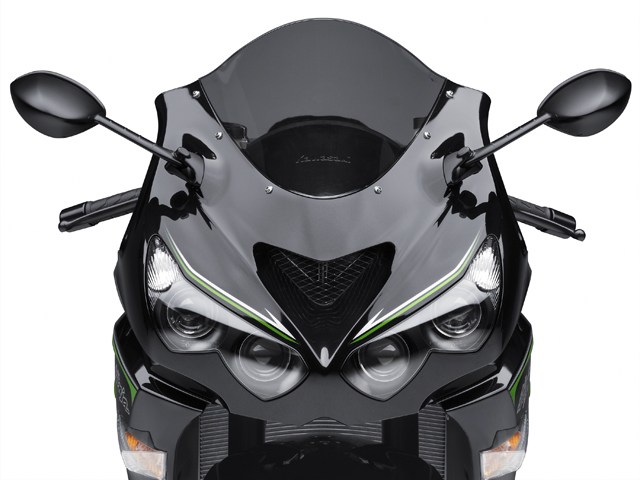

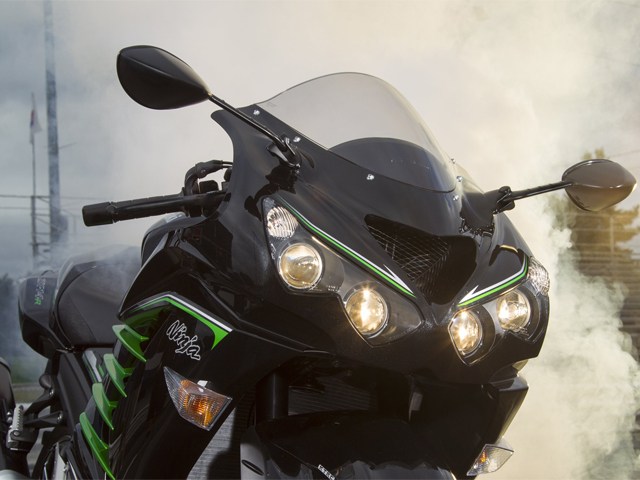

  • Quadruple projector beam headlights give the ZX™-14R a distinctive look. The outer lights contain position lamps and high beams, while the low beams are located in the center lamps
  • Lightweight Denso radiator with dual fans and high-density cores provides maximum cooling efficiency

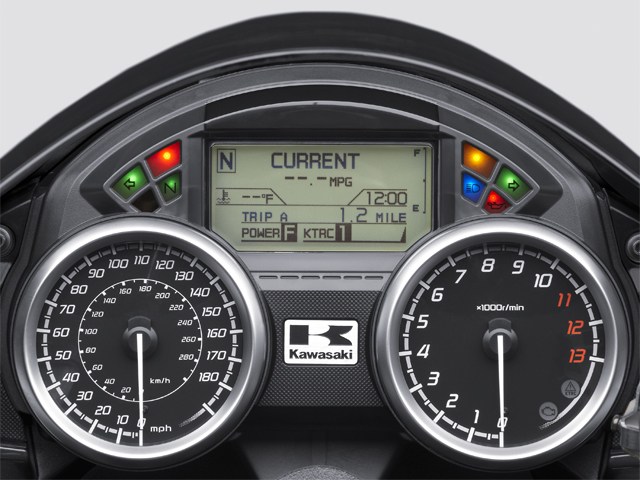

Full Instrumentation

  • Black-faced dual analog speedometer and tachometer are easy to read
  • Multi-function LCD digital display includes an odometer, two trip meters, fuel gauge, gear position indicator, clock, and many other variables, including traction-control and power mode information through its LCD indicator
  • Programmable shift indicator lamp illuminates at pre-set rpm to signal rider upshift
  • Programmable clutch engagement lamp illuminates at pre-set rpm to signal the rider to engage the clutch
  • Controller Area Network (CAN) interface between the gauges uses fewer wires yet allows a greater volume of information, such as estimated fuel mileage, to be exchanged
