2013 Kawasaki CONCOURS® 14 ABS

2013 Kawasaki CONCOURS® 14 ABS

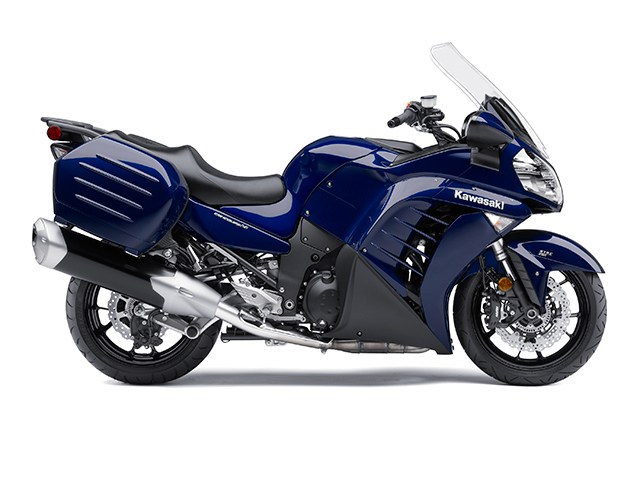

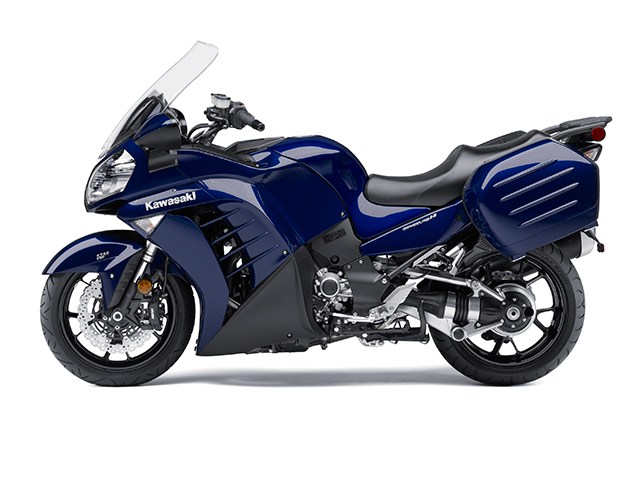

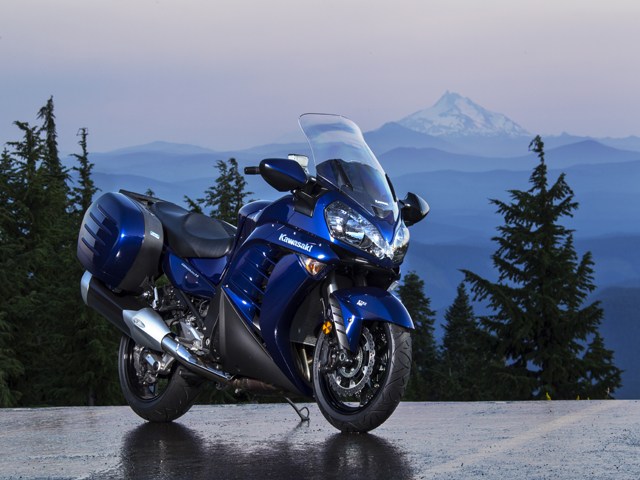

Metallic Nocturne Blue
MSRP: $16,199.00
Manufacturer: Kawasaki
Condition: New

Description

Sport touring riders are among the most discerning of all motorcyclists, and the Concours® 14 supersport tourer's combination of technology, comfort and continent conquering performance meets the toughest demands of this selective crowd. It is powered by a muscular heart derived from the legendary Ninja® ZX™-14 sportbike. Comfortable ergonomics make it well-suited to long days in the saddle, while offering proper body positioning for sport riding. Its overall performance will entice riders to pull out the big maps and plan extraordinary sporting tours through the next county or country.

Key Features

  • Ninja ZX-14-based 1,352cc inline-four with variable valve timing provides smooth power across a wide rev range
  • Kawasaki Traction Control (KTRC) reduces engine output when wheelspin is detected, helping the rear tire to regain grip
  • Kawasaki Coactive-braking Technology (K-ACT) links front and rear brakes and has two modes to suit different riding styles
  • Aluminum monocoque frame is lightweight, narrow and rigid
  • Tetra-Lever shaft drive offsets the lifting and squatting tendencies of shaft drive
  • Fuel economy assistance mode prioritizes fuel savings, giving up to a 25 percent mileage boost
  • Standard heated grips help provide comfort even in harsh conditions
  • Convenient Kawasaki Intelligent Proximity Activation Starting System (KIPASS)
  • Electrically adjustable windscreen has memory function and suits a variety of riders
  • Includes a 36 month limited factory warranty that can be supplemented with up to an additional 36 months of Kawasaki’s Good Times™ Protection Plan. That’s a total of up to an amazing SIX YEARS of coverage!

Specifications

Specifications

Engine
Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four with VVT
Displacement
1,352cc
Bore x Stroke
84.0 x 61.0mm
Maximum Torque
102.0 lb-ft @ 6,200 rpm
Compression Ratio
10.7:1
Fuel System
DFI® with four 40mm throttle bodies
Ignition
TCBI with Digital Advance
Transmission
6-Speed
Final Drive
Tetra-Lever shaft drive
Rake/Trail
26.1 degrees/4.4 in.
Front Tire Size
120/70 ZR-17
Rear Tire Size
190/50 ZR-17
Front Suspension / wheel travel
43mm inverted, telescopic fork with adjustable rebound damping and spring preload / 4.4 in.
Rear Suspension / wheel travel
Tetra-Lever with stepless rebound damping adjustment and remote spring preload adjuster / 5.4 in.
Front Brakes
Dual floating 310mm petal discs with four-piston calipers with ABS
Rear Brakes
Single 270mm petal disc with ABS
Fuel Capacity
5.8 gal.
Seat Height
32.1 in.
Curb Weight
688.0 lbs.
Wheelbase
59.8 in.
Overall Length
87.8 in.
Overall height windscreen lowered / raised:
50.8 in. / 57.7 in.
Overall width
39.4 in.
Color(s)

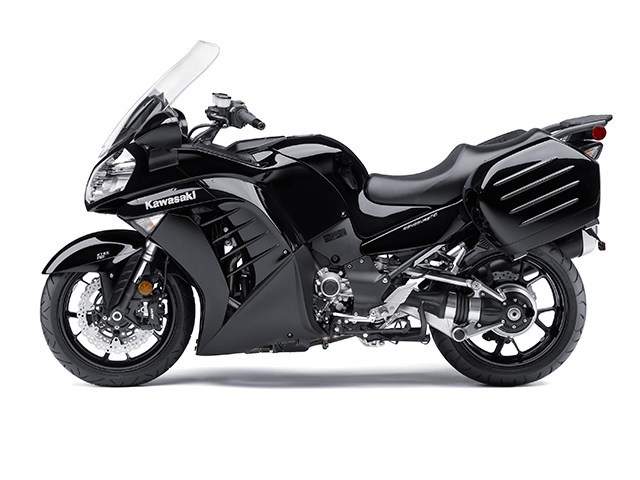

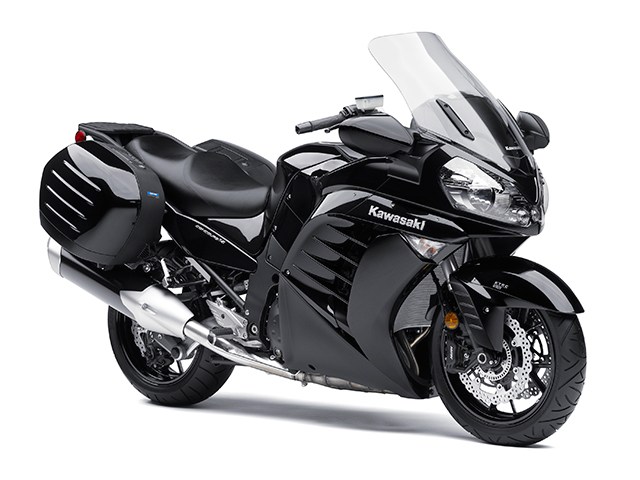

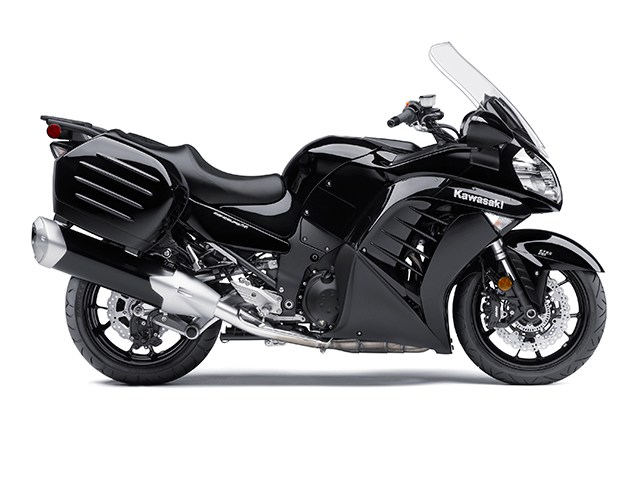

Metallic Spark Black, Metallic Nocturne Blue
Warranty
36 Months
Good Times™ Protection Plan
12, 24 or 36 months are available


Features

Key Features

  • Ninja ZX-14-based 1,352cc inline-four with variable valve timing provides smooth power across a wide rev range
  • Kawasaki Traction Control (KTRC) reduces engine output when wheelspin is detected, helping the rear tire to regain grip
  • Kawasaki Coactive-braking Technology (K-ACT) links front and rear brakes and has two modes to suit different riding styles
  • Aluminum monocoque frame is lightweight, narrow and rigid
  • Tetra-Lever shaft drive offsets the lifting and squatting tendencies of shaft drive
  • Fuel economy assistance mode prioritizes fuel savings, giving up to a 25 percent mileage boost
  • Standard heated grips help provide comfort even in harsh conditions
  • Convenient Kawasaki Intelligent Proximity Activation Starting System (KIPASS)
  • Electrically adjustable windscreen has memory function and suits a variety of riders
  • Includes a 36 month limited factory warranty that can be supplemented with up to an additional 36 months of Kawasaki’s Good Times™ Protection Plan. That’s a total of up to an amazing SIX YEARS of coverage!

1,352cc Four-cylinder, DOHC Engine with Variable Valve Timing (VVT)

  • Tuned to provide smooth power across an extremely wide rev range, the Concours 14 has power to spare
  • Variable valve timing improves the engine’s flexibility and efficiency by altering camshaft profiles to boost low-end and mid-range without sacrificing top-end power
  • Its compact and narrow engine design minimizes weight for maximum handling and performance
  • Chrome composite-plated aluminum cylinder bores are lightweight, durable and quickly carry heat away from the combustion chamber and piston for supreme durability under high loads

Gear-driven Dual Engine Balancers

  • Already in perfect primary balance, the Concours inline four-cylinder engine uses dual secondary balancers to virtually eliminate unwanted vibrations for enhanced rider comfort

Ram Air Induction

  • Ram air ducts provide a straight path for cool, high-pressure air to enter the airbox for maximum intake efficiency and power

Digital Fuel Injection

  • A digital computer feeds the engine exactly the amount of fuel it needs for cleaner emissions and maximum fuel economy
  • A 32-bit electronic control unit works with the dual throttle-valve system to further enhance throttle response and control

Digital Ignition

  • Four individual spark plug-mounted ignition coils fire each spark plug independently to achieve optimum timing
  • An idle speed control system included in the ECU provides easy starting and warm-up

KTRC Traction Control

  • Kawasaki’s traction control system reduces engine output when wheelspin is detected, helping the rear tire to regain grip
  • Advanced, 3-way control (airflow, ignition timing, fuel delivery) gives KTRC smooth operation, natural feel and the ability to operate on long stretches of rough roads
  • KTRC adds no weight, since it uses the existing ECU and ABS sensors

Second Generation K-ACT ABS

  • Second generation K-ACT (Kawasaki Advanced Coactive-braking Technology) ABS links front and rear brakes for most effective front-rear brake force distribution
  • Small and lightweight K-ACT ABS unit with a high-spec ECU is capable of detailed calculations for ultra-smooth operation
  • The rider can choose one of two modes to suit riding situation or rider preference: The linked effect from front brake lever actuation is largely the same in both modes, but the linked effect when actuating the rear brake pedal is quite different
  • In Standard Mode, rider control is prioritized, with linked effect reduced at initial pedal stroke for natural sensation when sport riding
  • In High Combined Mode, there’s a more pronounced linked effect from the beginning of the pedal stroke – ideal for touring and two-up highway use
  • A low-battery mode maintains ABS function as best as possible when the battery charge is low. In low-battery mode, ABS timing and pressure relief functions are maintained, so brake effectiveness is preserved (although riders will notice that ABS operation is not as smooth). The K-ACT lamp will flash and “Low Battery” will be displayed on the LCD screen. The system resets when the engine is turned off

Fuel Economy Assistance Mode

  • Activating fuel economy assistance mode changes the engine to a leaner map, which prioritizes fuel economy for as much as a 25 percent MPG boost
  • Fuel economy assistance works in any gear as long as rpm is below 6000, throttle opening less than 30 percent and speed less than 80 mph

Advanced KIPASS

  • Each Concours 14 comes with one key fob (kept in a pocket) and a small card-type key for emergency/backup use
  • The card-type key includes an immobilizer function (but no remote activation) and is highly portable, measuring just 1.2 x 1.6 x 0.25 inch

Radial Pump Clutch Master Cylinder

  • A hydraulic radial pump clutch master cylinder delivers smooth, precise clutch engagement

Monocoque Aluminum Frame

  • Hollow aluminum box sections arch over the engine from the steering head to the swingarm pivot for a narrow, rigid and very light frame
  • The rigidly mounted engine acts as a stressed frame member to increase the frame’s torsional rigidity while reducing weight
  • Forward engine positioning, wheelbase length and front/rear weight balance were carefully designed to achieve high-speed stability and responsive handling

Radial-mount Petal-type Front Disc Brakes

  • Radial design uses mounting points at the top and bottom of the caliper, with mounting bolts inserted through the rear of the caliper instead of the side/front for increased rigidity and improved braking feel
  • Separate brake pads for each caliper piston provide increased cooling efficiency and more consistent brake feel under extreme conditions
  • Petal design front and rear brake rotors provide enhanced cooling and better warp resistance
  • Radial-pump front brake master cylinder improves brake performance and lever feel

Tetra-Lever Shaft Drive

  • Unique four-link design offsets lifting and squatting tendencies of shaft drive when the throttle is opened and closed, significantly reduces driveline lash during sport riding, and provides smooth acceleration when exploiting the engine’s incredible power output
  • Virtually maintenance-free, the Tetra-Lever system dramatically reduces routine maintenance requirements

Plenty of Storage

  • Concours 14’s large-volume, easily detachable side cases are integrally designed to complement the rest of the machine. Water-resistant, they easily each hold a full-face helmet
  • The cases are mounted as close as possible to the bike’s centerline and center of gravity, with lightweight construction that minimizes their influence on handling
  • A lightweight rear carrier is designed to be compatible with an accessory top case
  • An all-purpose 40-watt accessory socket is mounted on the dash, providing convenient access to power for electronics

Full Instrumentation

  • Easy-to-read speedometer and tachometer, multi-function LCD digital display including an odometer, two trip meters, fuel gauge, gear position indicator, tire pressure indicator and a clock are just a partial listing of the 2013 Concours 14’s display capabilities
  • Controller Area Network (CAN) interface between the gauges uses fewer wires and allows a greater volume of information to be exchanged than in traditional instrument panels
  • Other key instrument functions include the K-ACT mode indicator, Economical Riding Indicator, and Fuel Economy Assistance Mode mark
  • Multi-function display includes outside air temperature, whose sensor is located at the intake duct (the farthest point from the engine)
  • The Mode Select button on the front of the left grip lets the rider change LCD modes without taking his/her hand off the grip, toggling through average fuel consumption, instant fuel consumption, remaining range, tire pressure, battery voltage and outside temperature

Comfort & Touring Potential

  • Aggressive fairing with specially designed venting facilitates heat dissipation, greatly reducing the amount of hot air transmitted to the rider
  • A tall windscreen with a wide upper portion reduces upper-body turbulence. The screen is electrically adjustable, with four programmable preset positions
  • When the power is turned off, the windscreen goes to its lowest position. When the power is turned back on, the windscreen’s memory function returns it to the selected preset position
  • Passages from windscreen slits direct air through the inner fairing to vents next to the instrument panel; alleviating the lower pressure helps prevent turbulence around the rider’s head
  • An exhaust pipe guard attached to the upper part of the exhaust mid-pipe helps protect the rider from heat when stopped
  • Stepless adjustable grip heaters are standard, with an easy-to-reach switch located in front of a lockable storage case on the inner left fairing panel
  • This lockable storage case in the left fairing inner panel uses an electromagnetic lock to prevent entry when the engine is off
  • Mirrors are positioned ideally to increase rear visibility and provide optimal hand protection from the wind
  • Attachment hooks at the front of the tank facilitate securing a tank bag

Quality Fit and Finish & Design

  • Top-shelf fit and finish results in a high quality and luxurious feel
  • Stylish muffler end cap gives the silencer a compact appearance

Optional Accessories

  • Engine guards, a large top case, tank bag, GPS bracket, a low seat and side spoilers – and much more – are on the list of authorized Kawasaki Accessories, available through your local Kawasaki dealer

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
