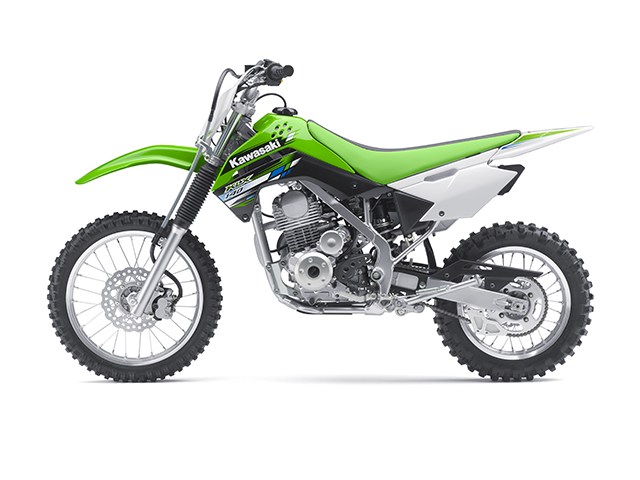

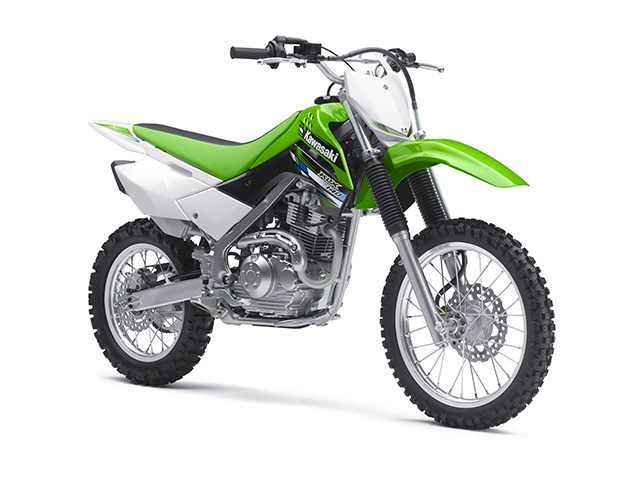

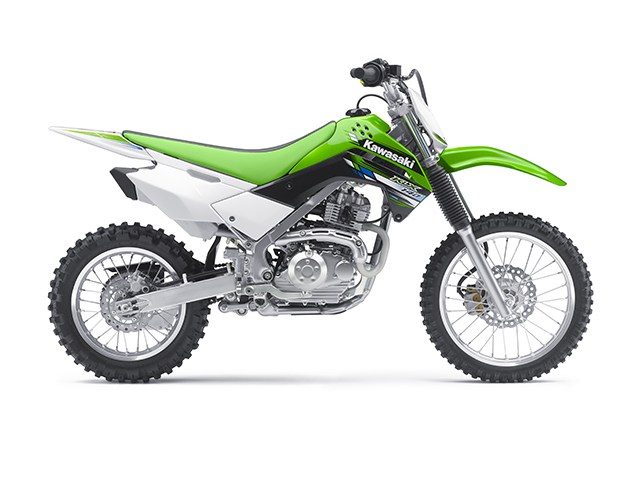

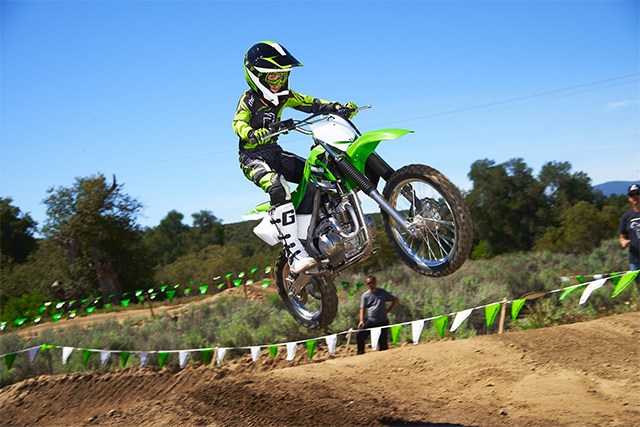

2013 Kawasaki KLX®140

2013 Kawasaki KLX®140
Lime Green
MSRP: $2,999.00
Manufacturer: Kawasaki
Condition: New

Description

Regardless of a rider’s level of experience, the KLX™ 140 provides the perfect opportunity to show just how much a little can do. This compact, multi-talented dirt bike offers straightforward push-button starting, and a steady flow of power that will fit the needs of both young and old.

At A Glance…

  • 144cc air-cooled, single-cylinder engine is simple to operate and to maintain
  • Close-ratio transmission makes optimum use of the engine’s power
  • Progressive manual clutch offers young riders the chance to master clutch engagement and gear shifting
  • Keyless electric starting via a starter button on the handlebar; an LED indicates when the power button is on to help prevent accidental battery drain
  • Front 220mm petal disc and large-bore 27mm twin-piston caliper (same size as those on the KX450F/250F) for strong and easy-to-control braking
  • Quiet muffler is equipped with a USFS-approved spark arrester, meaning the KLX140L can access designated public off-road riding areas

Specifications

Specifications

Engine
Four-stroke, SOHC, two-valve single
Displacement
144cc
Bore x Stroke
58.0 x 54.4mm
Cooling System
Air
Carburetion
Keihin PB20
Compression ratio
9.5:1
Ignition
CDI
Transmission
Five-speed with wet multi-disc manual clutch
Final drive
Chain
Frame Type
High-Tensile steel, box-section perimeter
Rake/Trail
27 degrees / 3.3 in.
Front suspension / wheel travel
33mm telescopic fork / 7.1 in.
Rear suspension / wheel travel
UNI-TRAK® linkage system and single shock with 5-way preload adjustability / 7.1 in.
Front Tire Size
70/100-17
Rear Tire Size
90/100-14
Front brakes / rear brakes
Single 220mm petal disc with a dual-piston caliper / Single 186mm petal disc with single-piston caliper
Overall length
71.7 in.
Overall width
31.1 in.
Overall height
41.3 in.
Wheelbase
49.6 in.
Ground clearance
9.3 in.
Seat height
30.7 in.
Curb weight
205.0 lbs.
Fuel capacity
1.5 gal.
Color Choices
Lime Green
Warranty
6 months base warranty


Features

At A Glance…

  • 144cc air-cooled, single-cylinder engine is simple to operate and to maintain
  • Close-ratio transmission makes optimum use of the engine’s power
  • Progressive manual clutch offers young riders the chance to master clutch engagement and gear shifting
  • Keyless electric starting via a starter button on the handlebar; an LED indicates when the power button is on to help prevent accidental battery drain
  • Front 220mm petal disc and large-bore 27mm twin-piston caliper (same size as those on the KX450F/250F) for strong and easy-to-control braking
  • Quiet muffler is equipped with a USFS-approved spark arrester, meaning the KLX140L can access designated public off-road riding areas

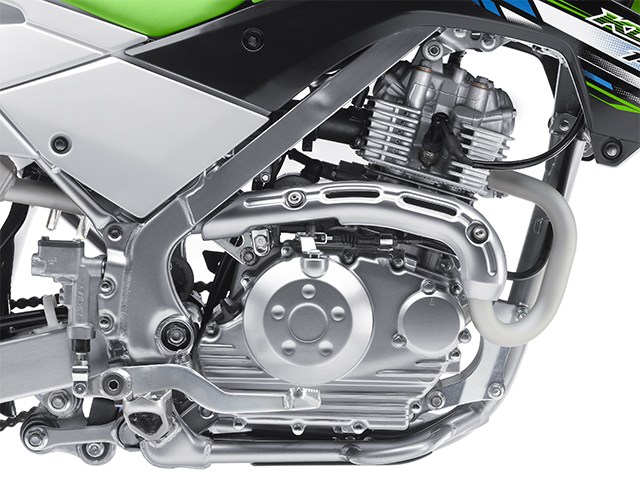

144 cc air-cooled, single-cylinder engine

  • Reliable and easy to use lightweight engine is simple to operate and maintain
  • Engine revs easily and allows riders to use the engine’s full rpm range up to the rev limiter at 10,500 rpm
  • Exhaust pipe is curved to achieve optimum length for good power characteristics
  • Quiet muffler is equipped with a USFS-approved spark arrester, meaning the KLX140 can access designated public off-road riding areas
  • Oil-coated air filter is washable, reusable, easily accessed and highly effective in dusty situations

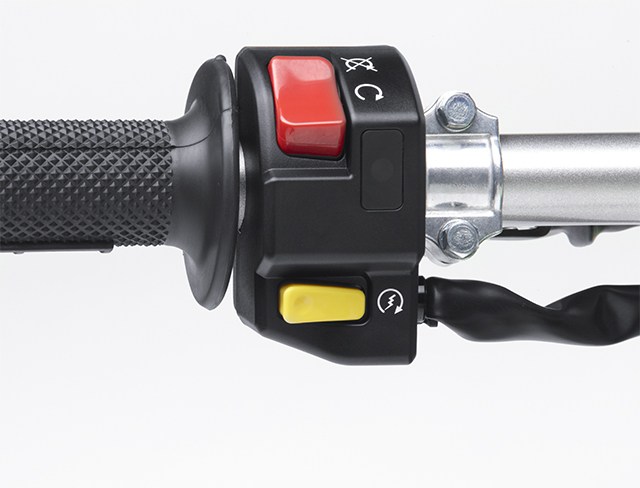

Electric start

  • Keyless electric starting via handlebar-mounted button
  • Orange LED light activates when the power button is depressed, indicating that power is “ON” to help prevent accidental battery drain
  • Digital CDI ignition helps ensure quick, reliable starts

Carburetor

  • Oval piston-valve Keihin PB20 carburetor features several Kawasaki-original modifications to provide stable fuel delivery under rough off-road conditions
  • Partitions in the float chamber keep the fuel from sloshing excessively, while an umbrella around the main jet traps fuel when jumping
  • Dual air vents help provide a stable fuel supply and eliminate hesitation even when the bike is at extreme lean angles
  • Needle valve is suspended on a spring, which acts like a shock absorber
  • Float material is rubber instead of plastic

Close-ratio transmission

  • Close gear ratios help the acceleration performance of the KLX 140
  • Shift lever features a ball bearing design for easy shifting like KX™ models, and has a folding tip for reduced crash damage

Progressive manual clutch

  • Manual clutch offers young riders the chance to master clutch engagement and gear shifting
  • Spring damper in the clutch provides a 2-stage engagement that permits half-clutch use when riding at extremely low rpm or idling speeds, and helps provide better clutch feel and durability

Box-section perimeter frame

  • Ready for the off-road abuse, the highly rigid, KX-inspired high-tensile steel perimeter frame uses the same upper tubes as the high-performance KLX250S
  • Aluminum swingarm is lightweight, strong and features a hairline finish just like the KX machines
  • KX-style chain adjusters allow precise chain adjustment

Superior suspension

  • 33mm telescopic fork has spring rates and damping settings specific to each model
  • KLX140 rear shock features 5-way preload adjustability and a Uni-Trak® linkage
  • More advanced KLX140L rear shock and reservoir can be mounted on the KLX140 for faster riders

KX-style wheels

  • Strong, high-grade die-cast hubs offer the same durability as those on the KX models
  • Durable, lightweight RK EXCEL aluminum rims are featured on the KLX’s 17/14-inch front/rear wheels

Petal disc brakes front & rear

  • Front 220mm petal disc and large-bore 27mm twin-piston caliper (same size as those on the KX450F/250F) offer strong and easy-to-control braking

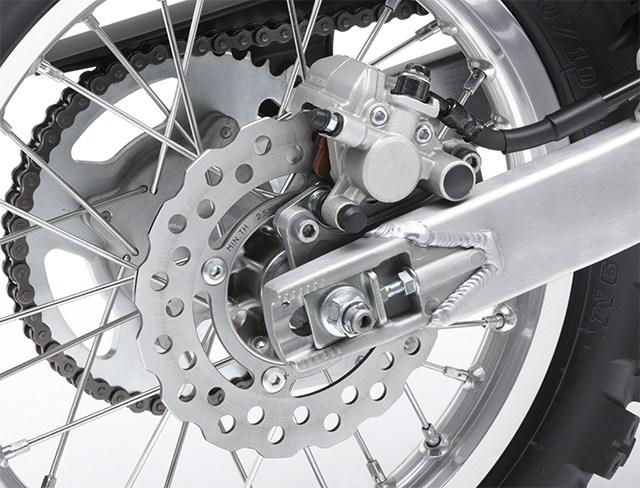

  • Rear brake uses a 186mm petal disc gripped by a 27mm single-piston caliper
  • Rear brake master cylinder features a large-volume, unitized reservoir that contributes to stable braking and helps ensure sufficient fluid pressure, even when the brake pad wears down
  • The wave shape of the petal discs help clean the brake pads for more efficient braking performance and reduce unsprung weight

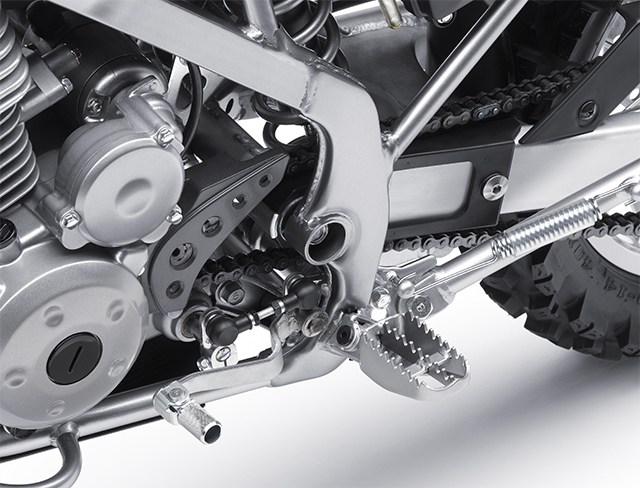

Ergonomics

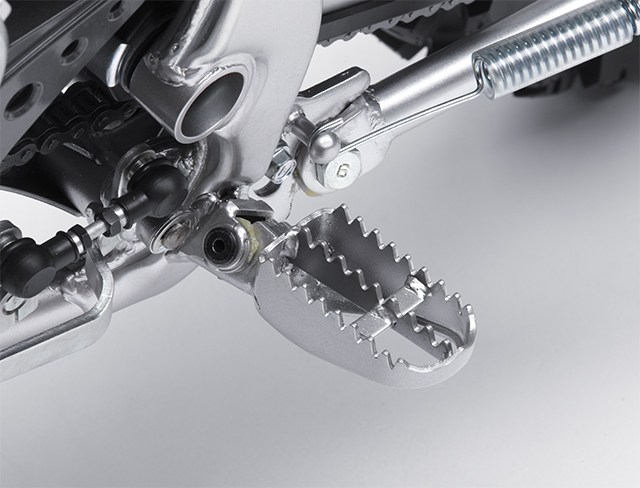

  • Flat-shaped box-section of frame, long footpegs mounted close to the bikes’ centerline and no kick-start lever combine to offer riders a good grip on the bike and thusly a higher level of machine control
  • Footpeg/frame relationship is modeled after the KX models for maximum leg grip
  • Handlebar is rubber-mounted to reduce vibration transferred to the rider’s hands
  • Two-piece upper triple clamp and handle clamp allow easy aftermarket handlebar installation
  • Raised pattern on half of the handgrip surface improves rider grip and comfort
  • Two-tone seat cover has a slip-resistant top surface for improved grip and smooth sides for excellent rider mobility when standing

Sharp, aggressive bodywork styling

  • Box-section perimeter frame features advanced styling similar to that of the KX racers
  • Two-piece shrouds with ventilation holes inspired by the top-of-the-line KX race machines
  • Fuel tank cover provides a smooth transition from tank to shroud, and contributes to the high level fit and finish
  • Eye-catching box muffler design protrudes as little as possible from behind the side cover and features a plastic muffler end-cap that offers a surface that’s cooler to the touch than steel

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
