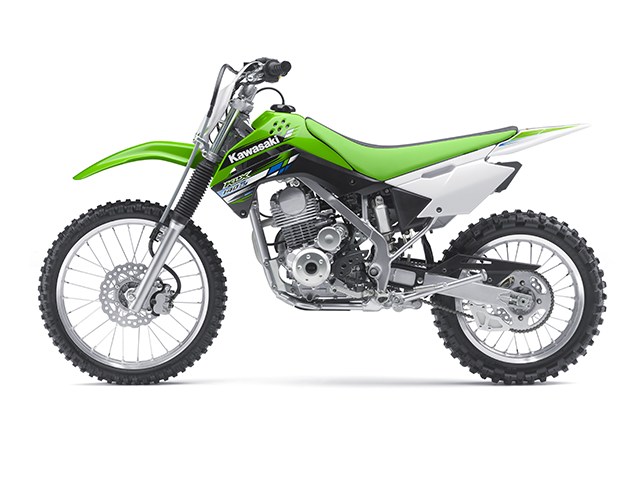

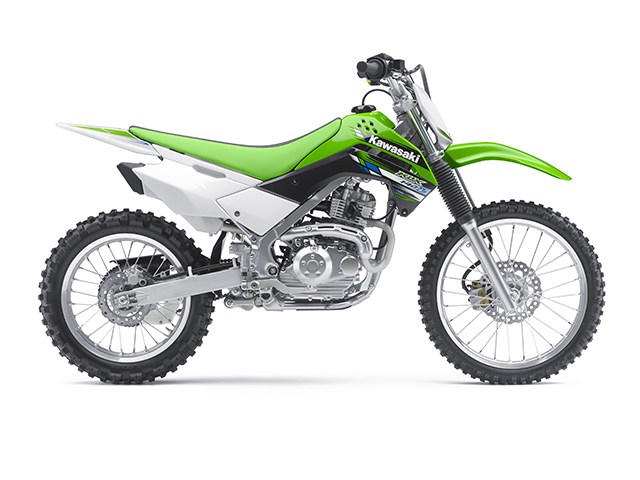

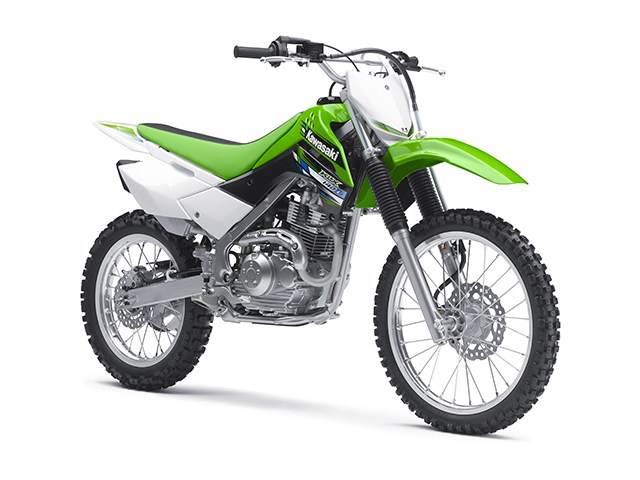

2013 Kawasaki KLX®140L

2013 Kawasaki KLX®140L
Lime Green
MSRP: $3,299.00
Manufacturer: Kawasaki
Condition: New

Description

If the standard KLX™ 140 with its 17” front and 14” rear wheels holds appeal for both young and old, the KLX140L incorporates all of its many features, yet packages them in a slightly beefier version, giving taller riders something to crow about. The 19” front and 16” rear wheels on the L-version are only part of the story, as its also equipped with a more performance-oriented , reservoir-type shock that the larger, more experienced rider will quickly appreciate.

At A Glance…

  • 144cc air-cooled, single-cylinder engine is simple to operate and to maintain
  • Close-ratio transmission makes optimum use of the engine’s power
  • Progressive manual clutch offers young riders the chance to master clutch engagement and gear shifting
  • Rear shock with piggyback reservoir has fully adjustable preload, four-way compression damping and 22-way rebound damping
  • Keyless electric starting via a starter button on the handlebar; an LED indicates when the power button is on to help prevent accidental battery drain
  • Front 220mm petal disc and large-bore 27mm twin-piston caliper (same size as those on the KX450F/250F) for strong and easy-to-control braking
  • Quiet muffler is equipped with a USFS-approved spark arrester, meaning the KLX140L can access designated public off-road riding areas

Specifications

Specifications

Engine
Four-stroke, SOHC, two-valve single
Displacement
144cc
Bore x Stroke
58.0 x 54.4mm
Compression ratio
9.5:1
Cooling System
Air
Carburetion
Keihin PB20
Ignition
CDI
Transmission
Five-speed with wet multi-disc manual clutch
Final drive
Chain
Frame Type
High-Tensile steel, box-section perimeter
Rake/Trail
27 degrees / 3.8 in.
Front suspension / wheel travel
33mm telescopic fork / 7.1 in.
Rear suspension / wheel travel
Uni-Trak® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping / 7.1 in.
Front Tire Size
70/100-19
Rear Tire Size
90/100-16
Front brakes / rear brakes
Single 220mm petal disc with a dual-piston caliper / Single 186mm petal disc with single-piston caliper
Overall length
74.6 in.
Overall width
31.1 in.
Overall height
42.3 in.
Ground clearance
10.0 in.
Seat height
31.5 in.
Curb weight
209.4 lbs.
Wheelbase
50.6 in.
Fuel capacity
1.5 gal.
Color Choices
Lime Green
Warranty
6 months base warranty
Good Times™ Protection Plan
12, 24, or 36 months


Features

At A Glance…

  • 144cc air-cooled, single-cylinder engine is simple to operate and to maintain
  • Close-ratio transmission makes optimum use of the engine’s power
  • Progressive manual clutch offers young riders the chance to master clutch engagement and gear shifting
  • Rear shock with piggyback reservoir has fully adjustable preload, four-way compression damping and 22-way rebound damping
  • Keyless electric starting via a starter button on the handlebar; an LED indicates when the power button is on to help prevent accidental battery drain
  • Front 220mm petal disc and large-bore 27mm twin-piston caliper (same size as those on the KX450F/250F) for strong and easy-to-control braking
  • Quiet muffler is equipped with a USFS-approved spark arrester, meaning the KLX140L can access designated public off-road riding areas

144 cc air-cooled, single-cylinder engine

  • Reliable and easy to use lightweight engine is both simple to operate and to maintain
  • Engine revs easily and allows riders to use the full rpm range up to the 10,500 rpm rev limiter
  • Exhaust pipe is curved to achieve optimum length for good power character
  • The quiet muffler is equipped with a USFS approved spark arrester, meaning the KLX140L can access designated public off-road riding areas
  • Oil-coated air-filter is washable, reusable, easily accessed and highly effective in dusty situations
  • 31.5” seat height accommodates taller riders

Electric start

  • Starting is via a (keyless) electric starter button on the handlebar
  • Orange LED light activates when the power button is depressed, indicating that power is “ON”
  • Digital CDI ignition helps ensure quick, reliable starts

Carburetor

  • Oval piston-valve Keihin PB20 carburetor features several Kawasaki-original modifications to provide stable fuel delivery under rough off-road conditions
  • Partitions in the float chamber keep the fuel from sloshing excessively and an umbrella around the main jet traps fuel when jumping
  • Dual air vents help provide a stable fuel supply and eliminate hesitation even when the bike is at extreme lean angles
  • Needle valve is suspended on a spring that acts like a shock absorber
  • Float material is rubber instead of plastic

Close-ratio transmission

  • Close gear ratios help the KLX 140L’s acceleration performance
  • Like the KX models, the shift lever features a ball bearing to ease shifting and has a folding tip for less damage in a crash

Progressive manual clutch

  • Manual clutch offers young riders the chance to master clutch engagement and gear shifting
  • A spring damper in the clutch gives it a 2-stage engagement that permits half-clutch use when riding at extremely low rpm or idling speeds, and helps provide direct clutch feel and better durability

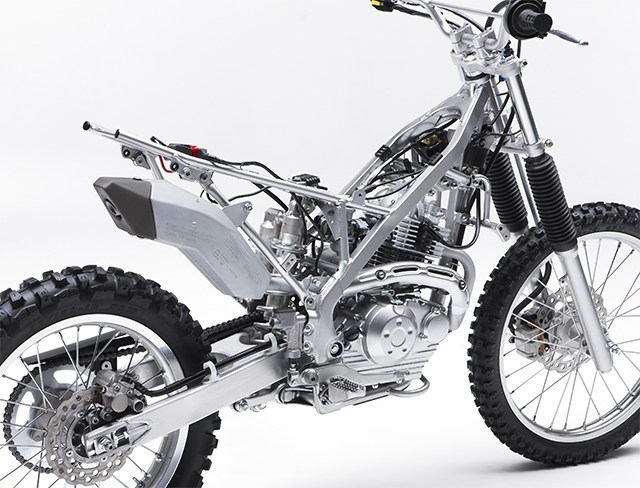

Box-section perimeter frame

  • Ready for the off-road abuse, the highly rigid, KX™-inspired high-tensile steel perimeter frame uses the same upper tubes as the KLX250S

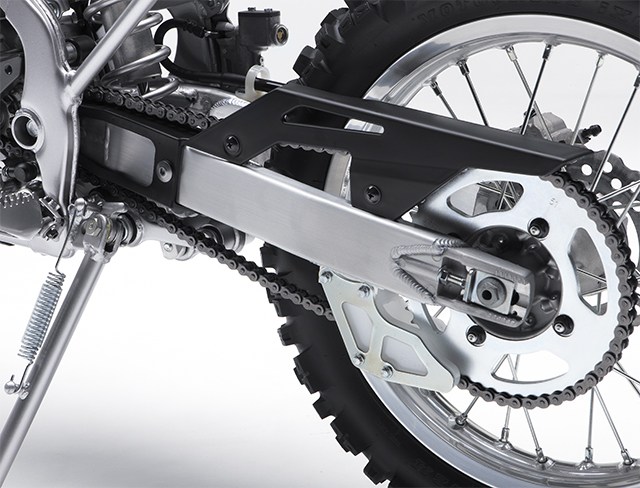

  • Aluminum swingarm offers light weight, strength and a hairline finish like on the KX machines
  • KX-style chain adjusters allow precise chain adjustments

Superior suspension

  • 33mm telescopic fork assembly has spring rates and damping settings specific to the 140L

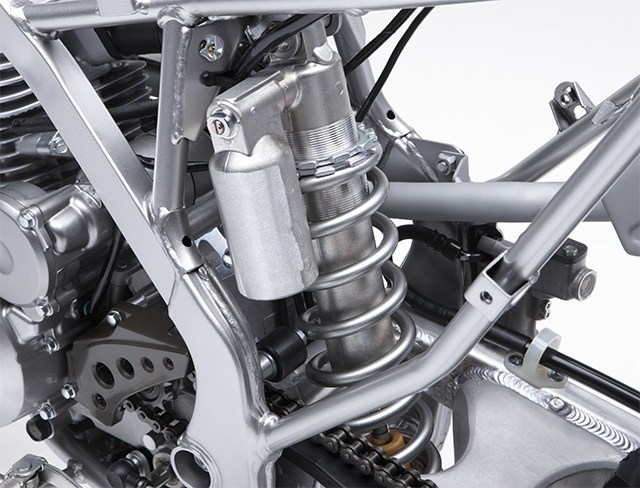

  • Intended for use at a quicker pace, the KLX140L features a Uni-Trak® linkage and a rear shock with a piggyback reservoir, fully adjustable spring preload, 4-way compression damping and 22-way rebound damping

KX-style wheels

  • Strong, high-grade die-cast hubs offer the same durability as those found on the KX
  • Durable, lightweight RK EXCEL aluminum rims on the 19/16-inch front/rear wheels

Petal disc brakes front & rear

  • Front 220mm petal disc and large-bore 27mm twin-piston caliper (same size as those on the KX450F/250F) offer strong and easy-to-control braking
  • Rear brake uses a 186mm petal disc gripped by a 27mm single-piston caliper
  • Rear brake master cylinder features a large-volume, unitized reservoir that contributes to stable braking and helps ensure sufficient fluid pressure even when the brake pad wears down
  • In addition to helping reduce unsprung weight, the wave shapes of the petal discs help clean the brake pads for more efficient braking performance

Ergonomics

  • Combination of the flat surface of the frame’s box-section, long footpegs mounted close to the bikes’ centerline and no kick-start lever add up to good grip and a high level of machine control
  • Footpeg/frame relationship is modeled after the KX line for maximum leg grip
  • Handlebar is rubber-mounted for reduced vibration transferred to the rider’s hands
  • Two-piece upper triple clamp and handle clamp foster easy aftermarket handlebar installation
  • Raised pattern on half of the grip surface offers more control and comfort
  • Two-tone seat cover has a slip-resistant top surface for good grip when seated and smooth sides for excellent rider mobility when standing

Sharp, aggressive bodywork styling

  • Box-section perimeter frame features advanced styling similar to that found on the KX racers
  • Two-piece shrouds with ventilation holes inspired by the top-of-the-line KX race machines
  • Fuel tank cover provides a flush transition from tank to shroud, and contributes to the bike’s high level of fit and finish
  • Eye-catching box muffler design protrudes as little as possible from behind the side cover, and features a plastic muffler end-cap that offers a surface cooler to the touch than steel

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
