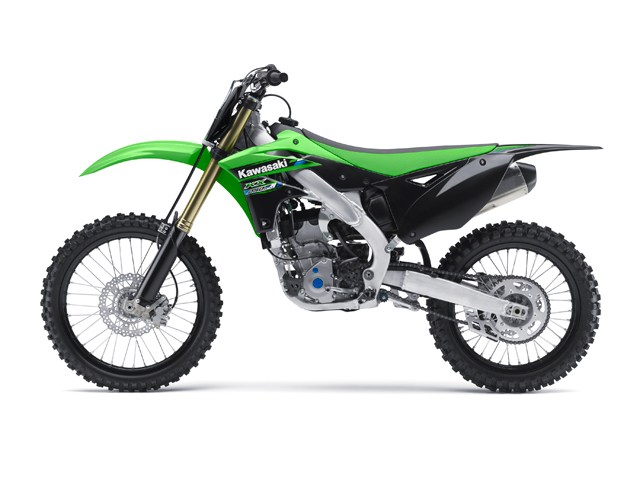

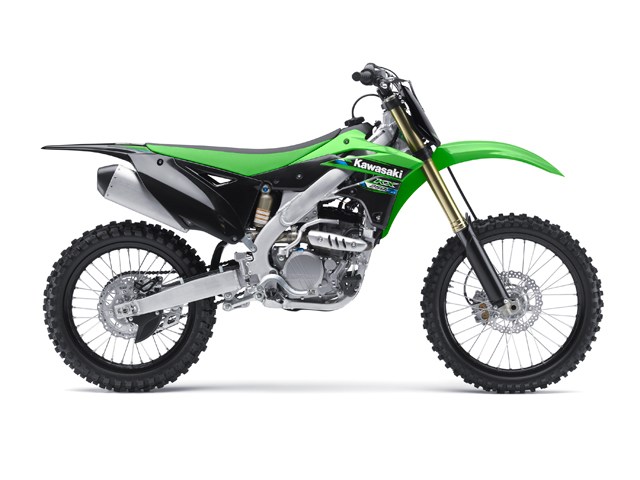

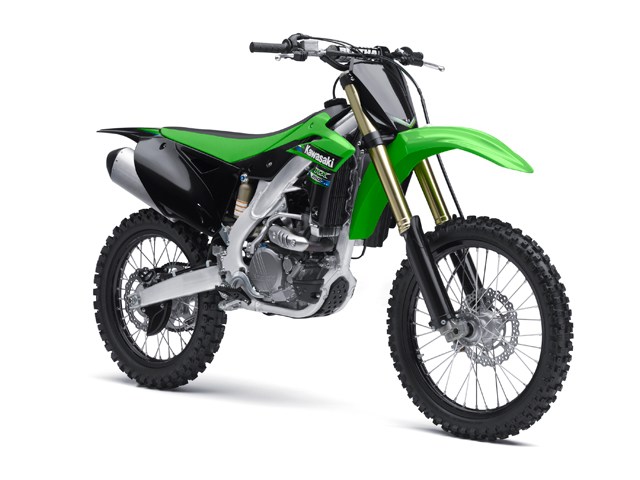

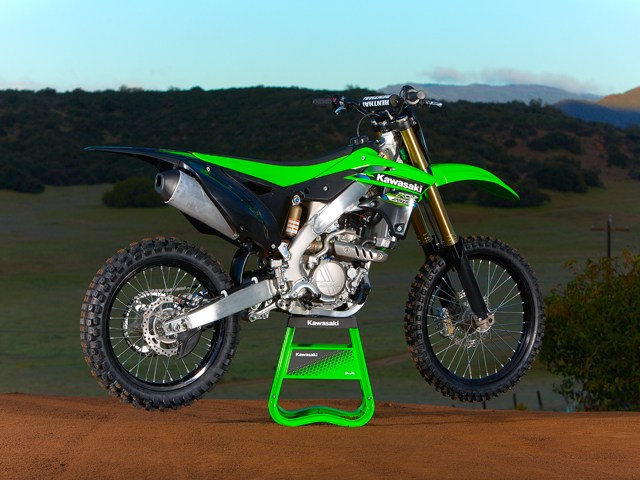

2013 Kawasaki KX™250F

2013 Kawasaki KX™250F
Lime Green
MSRP: $7,599.00
Manufacturer: Kawasaki
Condition: New

Description

For almost a decade, no other bike has spent more time on AMA Supercross and Motocross podiums than the Kawasaki KX™250F. The race-proven technology of the quarter-liter motocross leader returns for 2013, with an all-new plug-and-play adjustable ECU, narrower new frame, upgraded Separate Function Fork (SFF) fork and slimmer ergonomics, so the KX250F is poised to continue its class dominance in 2013.

At a glance…

  • Upgraded Showa Separate Function Fork (SFF) provides more progressive damping force and features larger-diameter 48mm inner fork tubes for improved rigidity and less stiction
  • Dual injector Digital Fuel Injection system
  • More robust high-rpm engine output extends deep into the overrev
  • Stronger engine components improve reliability

Specifications

Specifications

Engine
Liquid-cooled, four-stroke single with DOHC and four-valve cylinder head
Displacement
249cc
Bore x stroke
77.0 x 53.6mm
Fuel injection
DFI® with 43mm Keihin throttle body and dual injectors
Compression ratio
13.8:1
Ignition
Digital DC-CDI
Transmission
Five-speed with wet multi-disc manual clutch
Final drive
Chain
Frame
Aluminum perimeter
Rake / trail
28.7 degrees / 5.0 in.
Front suspension / wheel travel
48mm inverted Showa SFF telescopic fork with 40-way spring preload adjustability and 22 position compression and 20 position rebound damping adjustability/ 12.4 in.
Rear suspension / wheel travel
Uni-Trak® linkage system and Showa shock with 9 position low-speed and stepless high-speed compression damping, 22 position rebound damping and fully adjustable spring preload / 12.2 in.
Front tire size
80/100-21
Rear tire size
100/90-19
Front brake
Single semi-floating 250mm petal disc with dual piston caliper
Rear brake
Single 240mm petal disc with single-piston caliper
Overall length
85.4 in.
Overall width
32.3 in.
Overall height
50.0 in.
Wheelbase
58.1 in.
Ground clearance
13.0 in.
Seat height
37.2 in.
Curb weight
233.6 lbs.
Fuel capacity
1.61 gal.
Color
Lime Green


Features

At a glance…

  • Upgraded Showa Separate Function Fork (SFF) provides more progressive damping force and features larger-diameter 48mm inner fork tubes for improved rigidity and less stiction
  • Dual injector Digital Fuel Injection system
  • More robust high-rpm engine output extends deep into the overrev
  • Stronger engine components improve reliability

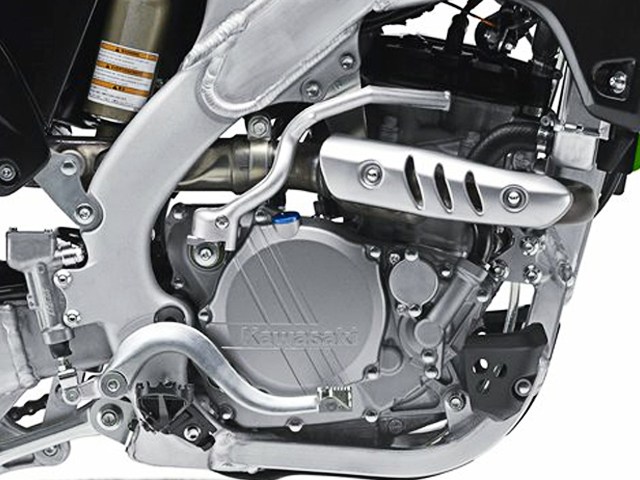

High-Revving, High Performance Engine

  • 249cc, liquid-cooled, four-stroke, four-valve, single-cylinder DOHC engine delivers hard-hitting power across the rpm range
  • Nickel plating on the cylinder wall has a high adhesion factor for optimum durability
  • Thick-stem connecting rod resists flex and enhances durability
  • Thick crank web design features a balance factor on par with the factory racers to help minimize engine vibration, provide smooth power delivery and maximize performance in the mid-high rpm range

Digital Fuel Injection (DFI) System

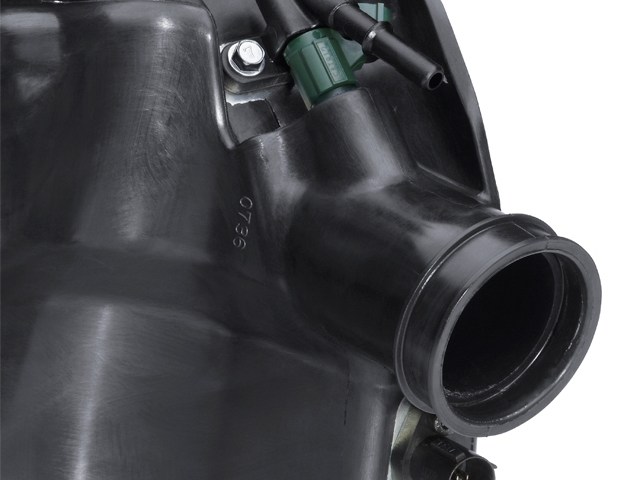

  • Revised intake tract provides a straighter shot into the combustion chamber for more direct airflow from the airbox into the combustion chamber
  • Seal between air inlet port and throttle position sensor unit on the 43mm throttle body protects TPS sensor from fuel penetration
  • Progressive throttle linkage opens more quickly after 3/8 open position
  • Simple and efficient system: No battery, fuses or relays
  • Sharp and precise engine response across entire rpm range
  • Offers easy engine starting
  • Helps prevent engine hesitation after landing from jumps and other high-impact situations

Bridged Box-Bottom Piston

  • Revised piston profile helps increase reliability
  • Light and strong piston shares same design as the factory racers, and a tin plating to optimize its interface with the nickel plating on the cylinder wall
  • Special finish improves surface lubrication and wear resistance
  • Short piston pin reduces reciprocating weight

Lightweight and Efficient Top End

  • Stronger intake valve seat material offers increased durability
  • Ultra-light valves have extremely thin valve stems on par with those found in supersport machines; intake valves feature thick heads for increased strength
  • Special casting method leaves the intake port surfaces extremely smooth for optimum intake efficiency across the rev range
  • Silicon-coated head gasket provides excellent sealing

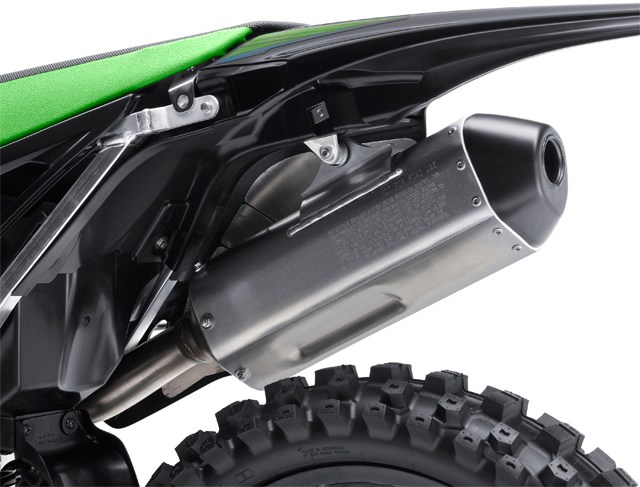

Stainless Steel Exhaust System

  • New 30mm shorter head pipe improves performance with a resonator chamber to help boost low-rpm torque
  • New high-volume muffler assembly is 30mm shorter with a larger cross section keeps noise levels at 94 dB while retaining power production
  • Durable stainless steel construction

Efficient Cooling System

  • Thick radiators are strong and offer excellent resistance to mud buildup while providing superb cooling performance
  • Cylinder head water jacket routes coolant to the front of the cylinder head for even cooling

Transmission and Shifting

  • Strong, beefy crankcases feature additional material around the engine mounts to help increase long-term durability
  • Clutch cable holder is integrated with the crankcase for accurate feel at the clutch lever
  • Scavenge oil filter screen can be accessed without splitting the crankcases, facilitating easier maintenance

Quick-turning Chassis

  • The KX250F’s slim and lightweight aluminum perimeter frame is 4mm narrower for improved ergonomics and handling
  • Center of gravity and key dimensions such as swingarm pivot, output sprocket and rear axle locations designed to increase forward drive with minimal rear-end squat

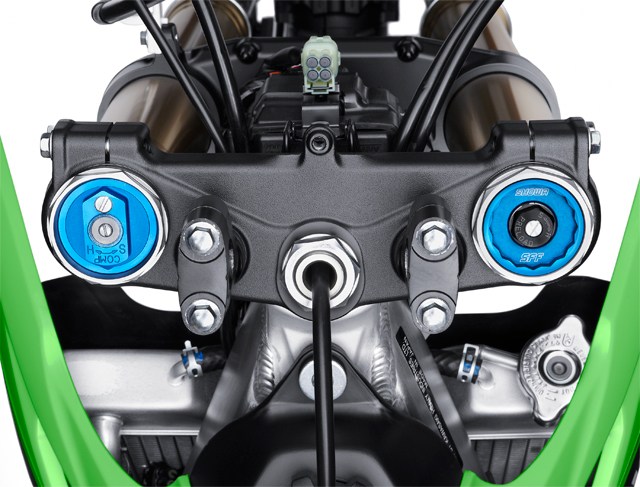

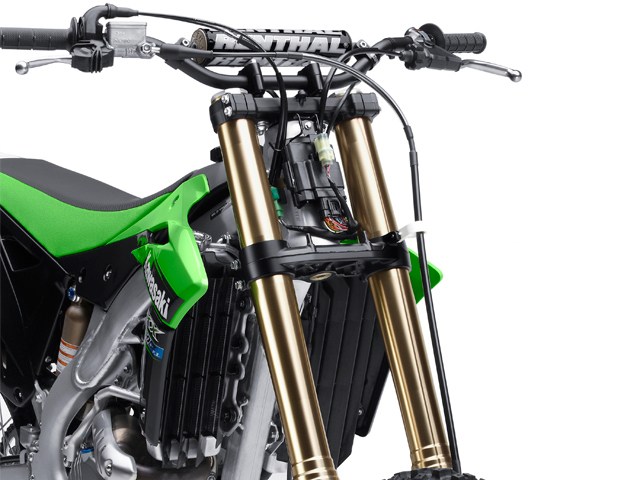

Upgraded SFF Fork

  • Upgraded 48mm Separate Function Fork (SFF) features new 1mm larger inner fork tubes which allow the internal damping components to be larger, for firmer damping response and increased ride comfort
  • SFF design separates springing and damping functions for less weight, better performance, less stiction and easier adjustability
  • Super-hard titanium coating on the outer surface of the inner fork tubes reduces stiction and improves suspension action while also helping prevent scratches and tube damage
  • Friction-reducing Kashima Coat treatment on the inside of the outer fork tubes contributes to smoother suspension action
  • Wrap-around fork tube guards provide excellent protection for the inner tubes
  • Revised lower triple clamp open at the back for increased rigidity and improved fork action

Uni-Trak® rear suspension

  • Rear shock features dual compression adjustability, allowing high-speed and low-speed damping to be tuned separately
  • Features Kashima Coat on the inside cylinder wall for reduced friction and smoother suspension action
  • New swingarm uses a longer cast front section, tapered hydroformed spars and forged chain adjusters
  • Uni-Trak® rear suspension linkage system mounts the suspension arm below the swingarm, allowing more rear suspension stroke and precise tuning
  • Linkage ratios for the Uni-Trak rear suspension match rear shock damping settings to achieve maximum rear wheel traction

Rider Interface

  • Bodywork components offer the rider a slim interface, making it easy for racers to feel comfortable and go fast
  • Formed using a double-injection molding process, the shrouds offer a slim design
  • New smaller side number plates also contribute to the slim package
  • Right side panel has an added passageway to help cool the silencer
  • Flatter design of the seat and tank offer greater freedom of movement
  • Frame is wider at the ankles to offer better grip and narrows near the bend below the seat to allow a slim riding position
  • Slim seat features upgraded polyurethane, designed for greater durability
  • Seat has a slip-resistant top and side surface for good grip when seated and while standing
  • 50mm wide (front-to-rear) footpegs offer superb grip and feel at the pegs
  • Clutch cable boot features a large quick adjuster, making it easy for riders to adjust play in the clutch cable while on the fly
  • Throttle grip has a one-piece collar that provides additional stability during throttle operation
  • Longer hand grips allow the rider to hold the bars closer to the centerline and are made of lower density material for improved rider comfort

Factory-style Components

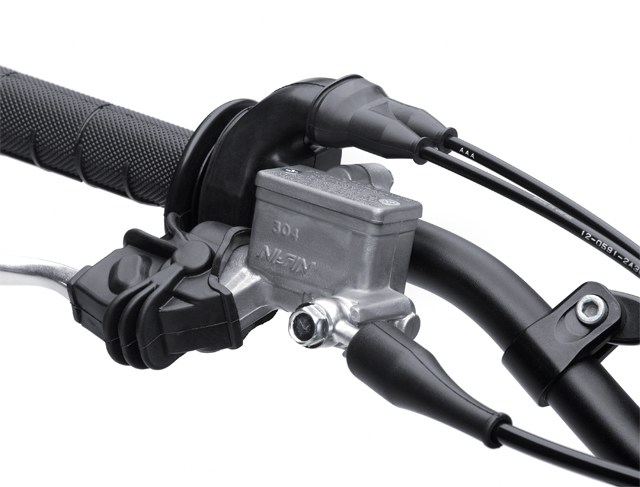

  • New pushrod type front brake master cylinder and new brake pad material provide stronger brake force and enhanced feel
  • New rear brake pad material offers powerful braking performance
  • Lightweight black anodized rims, are durable and look just like the factory racers
  • Titanium coated inner fork tubes minimize stiction and look great

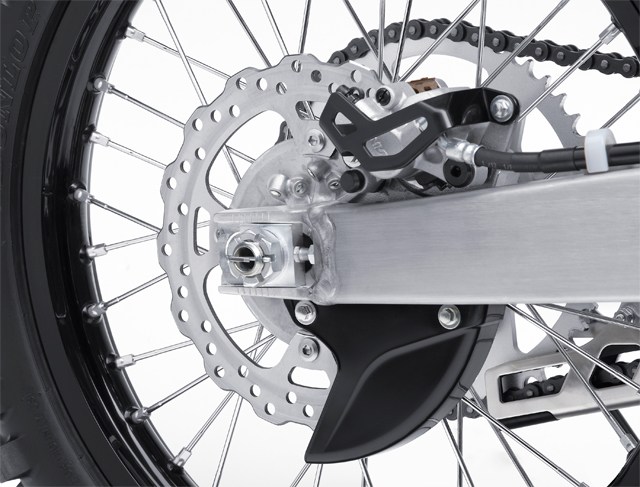

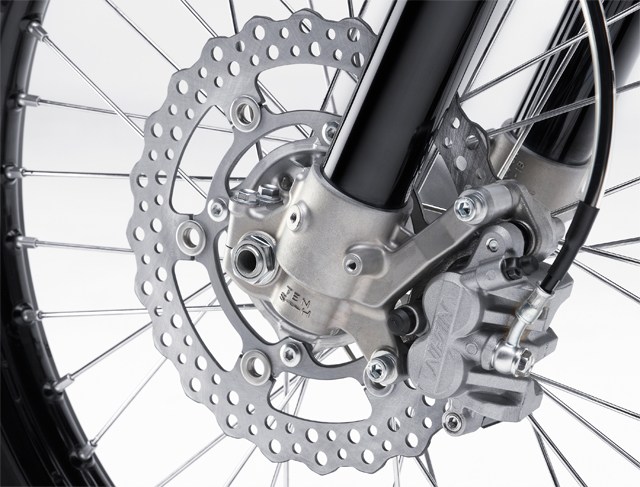

  • Front and rear petal brake discs help reduce unsprung weight, and the wave shape helps clean the brake pads for more efficient stopping performance
  • Rear caliper guard protects caliper from damage
  • Ribless rear hub and butted spokes further reduce unsprung weight
  • Renthal aluminum handlebar is standard equipment
  • Blue ignition cover plugs and oil filler cap match the blue accents on the factory race bikes
  • Factory-style graphics complement the KX250F’s highly tuned performance

Additional Features

  • New radiator shrouds and side panels provider a slimmer rider interface and a more nimble feel
  • New front fender
  • Redesigned front number plate
  • New embossed design on clutch cover

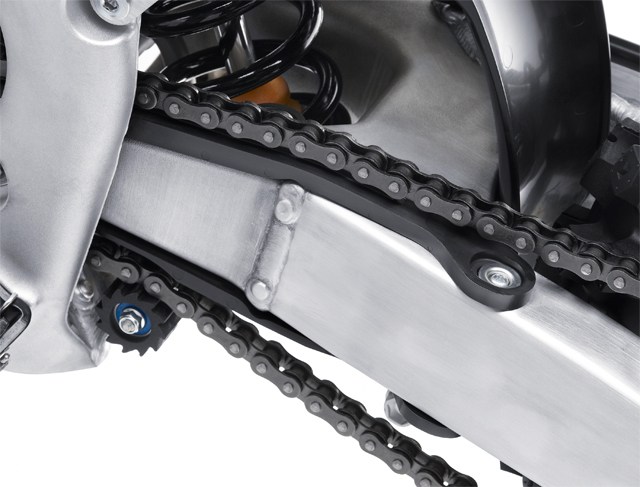

  • New higher-density chain pad on top of the swingarm is more resistant to wear
  • Large resin skid plate offers great protection with minimum weight

Optional Accessories

  • Optional DFI Calibration Kit allows custom tuning
  • Optional FI Indicator Light allows the DFI system to communicate diagnostic information
  • Optional engine parts include magneto rotors with different inertias and a 12-tooth output sprocket
  • Optional chassis parts include handlebar holder for a 1 1/8-inch handlebar, 46 to 50-tooth aluminum and steel rear sprockets, solid petal brake rotors, different fork and shock springs and manual decompression lever and cable

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
