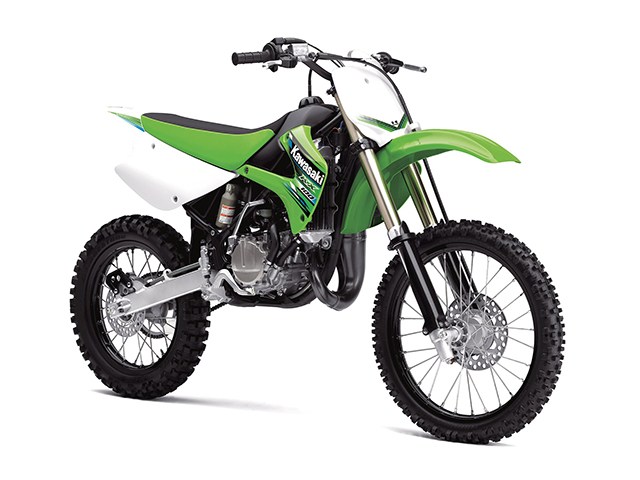

2013 Kawasaki KX™100

2013 Kawasaki KX™100
Lime Green
MSRP: $4,249.00
Manufacturer: Kawasaki
Condition: New

Description

As motocross racers begin to transition from the mini categories into full-sized competition, the KX™100 provides the ride that will both enhance and simplify this often-times difficult move. Engineered to help adolescent riders as they see both their skills and their physical presence changing, the KX100 lets them focus all of their attention on refining their own capabilities, not the constant need to manhandle an excessively large and powerful 250.

At A Glance…

  • 99cc two-stroke engine is liquid cooled to help assure even running temperatures, consistent power output and greater reliability
  • Kawasaki Integrated Power-valve System varies exhaust port height, helping to produce a broad powerband with more low-end torque while retaining excellent top-end power
  • Six-speed transmission offers positive shifting action and rugged durability; hard chrome-finished shift forks resist wear and seizure
  • Clutch uses 119mm-diameter plates for good feel and durability
  • Swingarm uses large cross-section beams for more rigidity
  • Uni-Trak® rear suspension features a shock with adjustable compression, rebound damping and spring preload, while the 36mm inverted cartridge fork has 18-way adjustable compression damping
  • Industry-leading amateur racer support through Team Green™

Specifications

Specifications

Engine
Two-stroke single with KIPS®
Displacement
99cc
Bore x Stroke
52.5 x 45.8mm
Cooling System
Liquid
Carburetion
Keihin PWK28
Induction
Two-petal reed valve
Compression ratio
9.6:1 (low speed) – 8.8:1 (high speed)
Ignition
Digital CDI
Transmission
Six-speed
Final drive
Chain
Frame Type
High-tensile steel perimeter design with subframe member
Rake/Trail
27 degrees / 4.1 in.
Front suspension / wheel travel
36mm inverted telescopic cartridge fork with 18-way compression damping / 10.8 in.
Rear suspension / wheel travel
Uni-Trak® single shock system with 4-way compression and 18-way rebound damping plus adjustable spring preload / 10.8 in.
Front Tire Size
70/100x19
Rear Tire Size
90/100x16
Front brakes / rear brakes
Hydraulic disc / Disc
Overall length
75.2 in.
Overall width
28.9 in.
Overall height
43.5 in.
Ground clearance
15.0 in.
Seat height
34.3 in.
Curb weight
156.5 lbs.
Fuel capacity
1.5 gal.
Wheelbase
50.8 in.
Color Choices
Lime Green


Features

At A Glance…

  • 99cc two-stroke engine is liquid cooled to help assure even running temperatures, consistent power output and greater reliability
  • Kawasaki Integrated Power-valve System varies exhaust port height, helping to produce a broad powerband with more low-end torque while retaining excellent top-end power
  • Six-speed transmission offers positive shifting action and rugged durability; hard chrome-finished shift forks resist wear and seizure
  • Clutch uses 119mm-diameter plates for good feel and durability
  • Swingarm uses large cross-section beams for more rigidity
  • Uni-Trak® rear suspension features a shock with adjustable compression, rebound damping and spring preload, while the 36mm inverted cartridge fork has 18-way adjustable compression damping
  • Industry-leading amateur racer support through Team Green™

Liquid-cooled, 99cc, Two-stroke Engine

  • Clutch cover is separate from the water pump cover for quick servicing
  • Liquid-cooling helps to maintain reliability, even-running temperatures and consistent power output
  • Bridges between intake and exhaust ports are machine-finished for increased durability
  • Rotor utilizes rare-earth magnets – the unitized piece is small, light and more efficient; low inertial moment improves low-rpm response
  • Connecting rod big-end bearing has a more rigid cage for improved durability
  • Intake port shape and cylinder skirt allow cooling air into the crankcase chamber
  • Primary gear is secured using a lock-nut to help reduce mechanical noise
  • Metafoam gaskets for the generator and water pump covers improve sealing

Kawasaki Integrated Power Valve System (KIPS®)

  • KIPS system varies exhaust port height for increased horsepower and torque at all rpm
  • Produces a broad powerband with more low-end torque while retaining excellent top-end power
  • Breather in KIPS cover improves high-rpm and overrun performance

28mm Keihin Carburetor

  • Crescent slide carburetor puts the needle closer to the intake ports for optimum throttle response
  • Adjustable for various conditions

Clutch

  • Clutch hub rides on needle bearings for smooth action
  • Large clutch plates measure 119mm in diameter for added durability and control
  • Clutch-release lever ratio provides light clutch lever action
  • Thick clutch basket housing improves durability
  • Clutch plate service cover simplifies maintenance and utilizes a metal-carbon composite gasket

Six-speed Transmission

  • Fifth and sixth gears ride on bushings for added reliability
  • Positive shifting action and rugged durability
  • Allows the engine’s full potential to be realized
  • Oil level window allows easy level check
  • Hard chrome-finished shift forks resist wear and seizure

High-tensile Steel Perimeter Frame

  • Wide, steel footpegs for better control and added strength
  • Thick footpeg brackets withstand today’s rigorous tracks
  • Engine and chassis bolts feature rust-resistant coating

Fuel Tank

  • Positioned low in the frame to lower center of gravity and improve handling

Uni-Trak® Rear Suspension

  • Swingarm uses large cross-section beams for more rigidity and control
  • Swingarm incorporates cast-aluminum drive chain adjuster sections for easy chain adjustments
  • Flanged collars at the bearings to protect seals from mud
  • Fully adjustable shock with compression damping, rebound damping and spring preload adjustability

36mm Inverted Cartridge Fork

  • Aluminum upper tubes are 49.5mm in diameter for excellent control and steering response
  • Compression damping is 18-way adjustable

Disc Brakes

  • Front brake lever shape offers better feel
  • Forged-aluminum rear brake pedal is strong, lightweight and features two seals at the pivot for smooth operation

Lightweight Aluminum Rims

  • Rear hub features two wheel bearings on the drive side for durability
  • Thick spokes are used in the front and rear for strength, and require less adjustment
  • Lightweight aluminum rims

Graphics

  • Aggressive Kawasaki graphics compliment its black frame and wheels, just like the larger KX models
  • Silver clutch and ignition covers resist the signs of boot rub to help keep the KX looking fresh, longer
