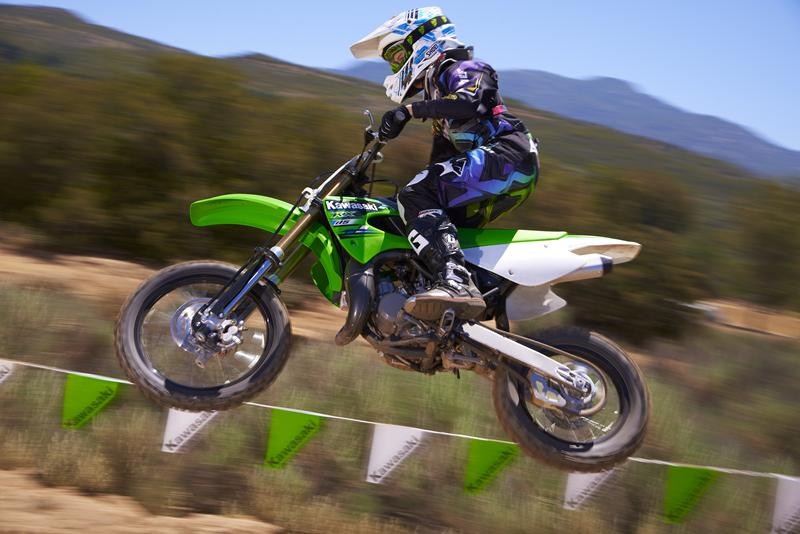

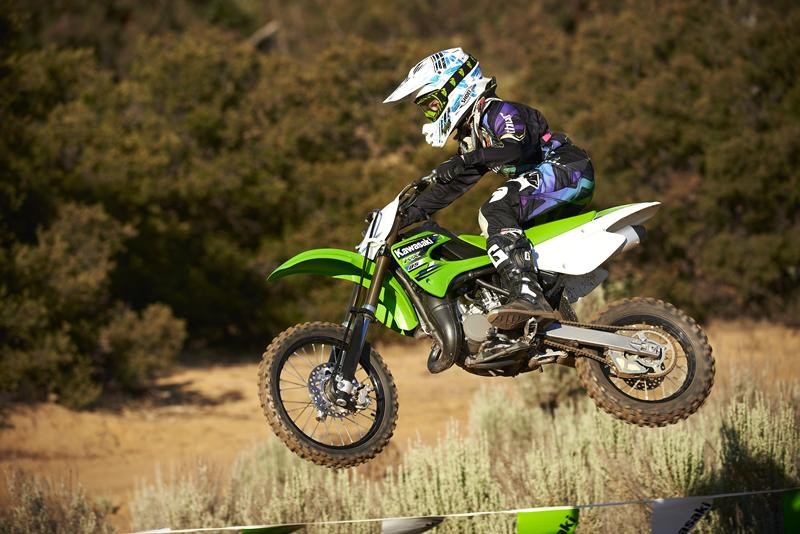

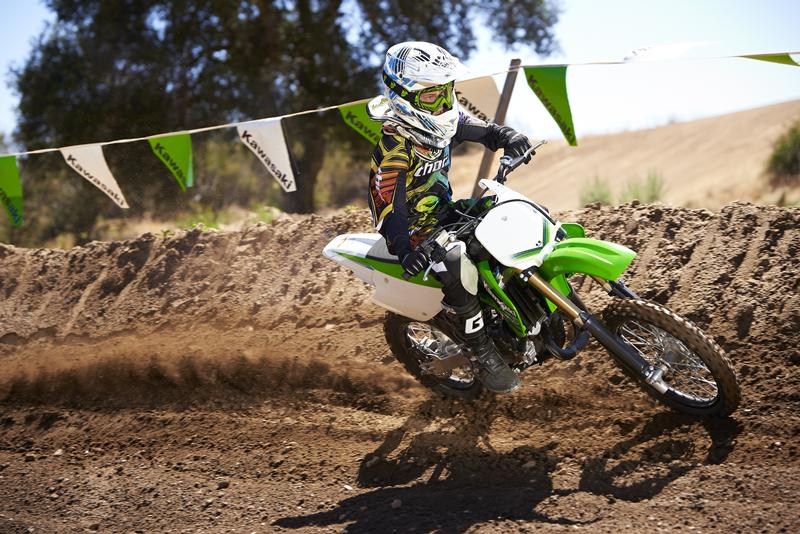

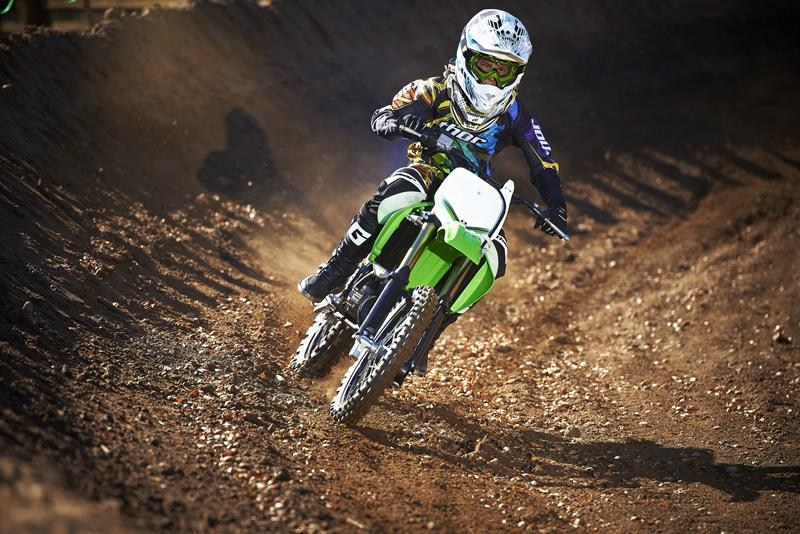

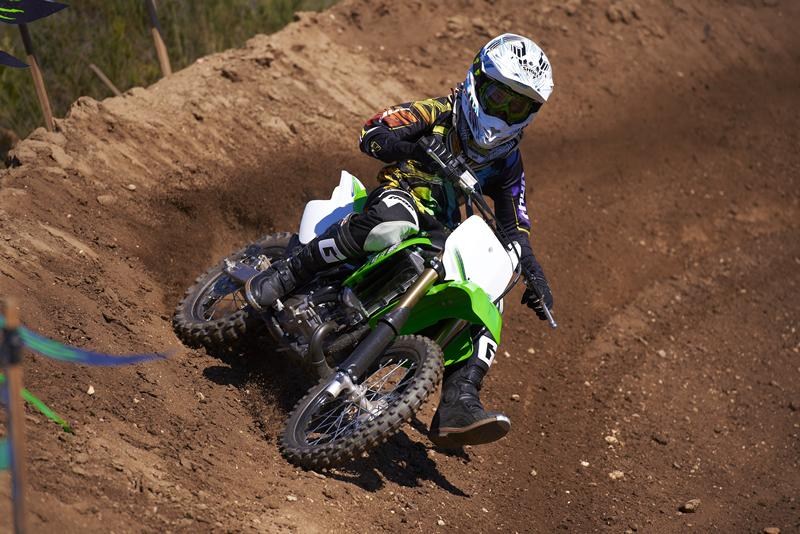

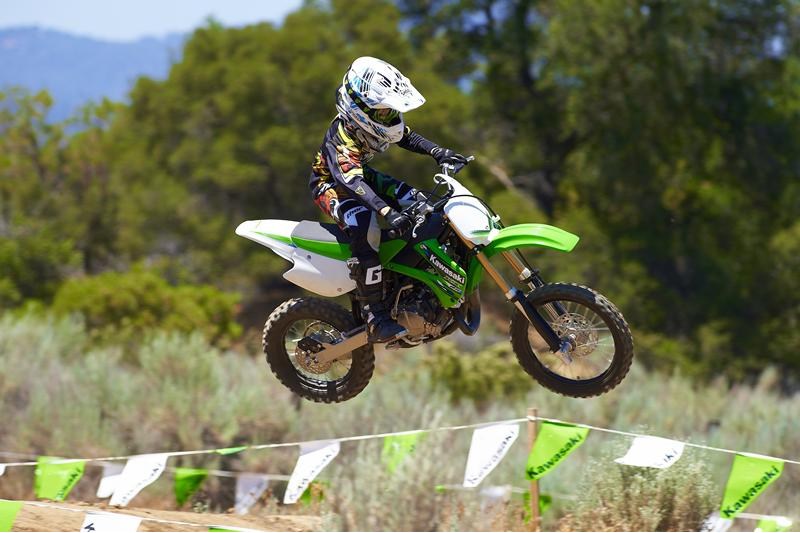

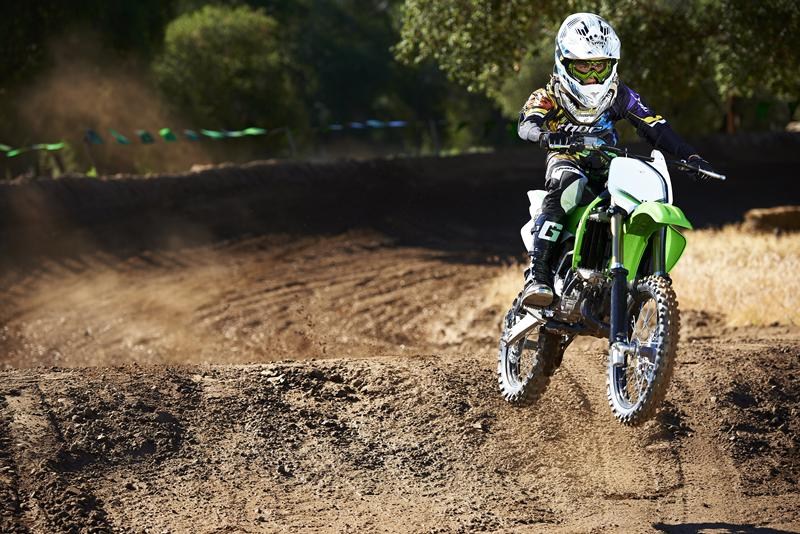

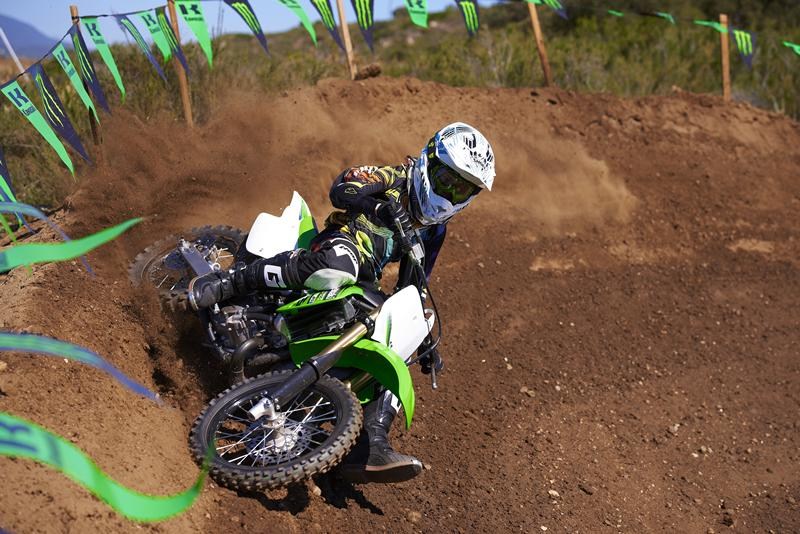

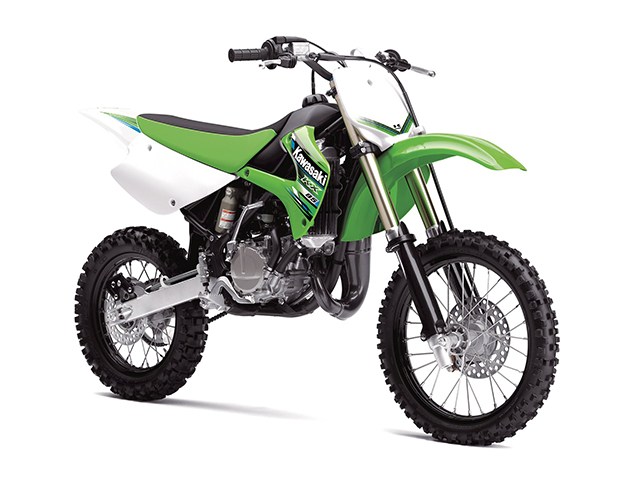

2013 Kawasaki KX™85

2013 Kawasaki KX™85
Lime Green
MSRP: $4,049.00
Manufacturer: Kawasaki
Condition: New

Description

When the time comes for every budding motocross racer to decide that being a winner is why he or she races, then the next step is obvious. Throwing a leg over the KX™ 85 not only carries Kawasaki’s motocross heritage with it, but speaks volumes about how serious the racer is about taking the checkered flag.

At A Glance…

  • Liquid-cooled, two-stroke, 84cc engine features a lightweight Electrofusion-coated cylinder that improves heat transfer while resisting abrasion and seizure
  • Kawasaki Integrated Power-valve System varies exhaust port height for increased horsepower and produces a powerband with more low-end torque and mid-range, while retaining excellent top-end power
  • Uni-Trak® rear suspension is fully adjustable for compression and rebound damping and spring preload
  • Rigid 36mm inverted cartridge forks are 18-way adjustable and provide better steering response and control
  • 28mm Keihin PWK carburetor is tuned for ideal fuel atomization, providing quicker throttle response and a smoother power delivery
  • Six-speed transmission has chrome-finished shift fork ends to resist wear and seizing while bushings on the second, third and fourth gears on the output shaft increase durability
  • Industry-leading amateur racer support through Team Green™

Specifications

Specifications

Engine
Two-stroke single with KIPS®
Displacement
84cc
Bore x Stroke
48.5 x 45.8mm
Cooling System
Liquid
Carburetion
Keihin PWK28
Induction
Crankcase reed valve
Compression ratio
10.0:1 (low speed) – 9.2:1 (high speed)
Ignition
Digital CDI
Transmission
Six-speed
Final drive
Chain
Frame Type
High-tensile steel perimeter design with subframe member
Rake/Trail
27 degrees / 3.5 in.
Front suspension / wheel travel
36mm inverted telescopic cartridge fork with 18-way compression damping / 10.8 in.
Rear suspension / wheel travel
Uni-Trak® single-shock system with 4-way compression and 16-way rebound damping, plus adjustable spring preload / 10.8 in.
Front Tire Size
70/100x17
Rear Tire Size
90/100x14
Front brakes / rear brakes
Hydraulic disc / Disc
Overall length
71.7 in.
Overall width
28.9 in.
Overall height
41.5 in.
Ground clearance
13.4 in.
Seat height
33.1 in.
Curb weight
152.1 lbs.
Fuel capacity
1.5 gal.
Wheelbase
49.4 in.
Color Choices
Lime Green


Features

At A Glance…

  • Liquid-cooled, two-stroke, 84cc engine features a lightweight Electrofusion-coated cylinder that improves heat transfer while resisting abrasion and seizure
  • Kawasaki Integrated Power-valve System varies exhaust port height for increased horsepower and produces a powerband with more low-end torque and mid-range, while retaining excellent top-end power
  • Uni-Trak® rear suspension is fully adjustable for compression and rebound damping and spring preload
  • Rigid 36mm inverted cartridge forks are 18-way adjustable and provide better steering response and control
  • 28mm Keihin PWK carburetor is tuned for ideal fuel atomization, providing quicker throttle response and a smoother power delivery
  • Six-speed transmission has chrome-finished shift fork ends to resist wear and seizing while bushings on the second, third and fourth gears on the output shaft increase durability
  • Industry-leading amateur racer support through Team Green™

Liquid-cooled, Two-stroke, Single-cylinder 84cc Engine

  • Lightweight Electrofusion-coated cylinder improves heat transfer while resisting abrasion and seizure
  • Intake and exhaust port bridges are machine-finished for reduced wear and improved reliability
  • Liquid cooling means even-running temperatures and consistent power output
  • Rotor comes with rare-earth magnets; the unitized piece is small, light and more efficient; low inertial moment improves low-rpm response
  • Connecting rod big-end bearing has more rigid cage for improved durability
  • Intake port shape and cylinder skirt allow cooling air into the crankcase chamber
  • Primary gear is secured using a lock-nut to help reduce mechanical noise
  • Metafoam gaskets for the generator and water pump covers improve sealing

Kawasaki Integrated Power Valve System (KIPS®)

  • KIPS system varies exhaust-port height for increased horsepower and torque at all rpm
  • Produces a broad powerband with more low-end torque and mid-range, while retaining excellent top-end power
  • Breather in KIPS cover improves high-rpm and overrun performance

Airbox

  • Large right-side cutout improves airflow for increased power
  • Reusable foam air filter

28mm Keihin PWK Carburetor

  • Large crescent slide positions the needle closer to intake ports for ideal fuel atomization, providing quicker throttle response and a smoother power delivery
  • Carburetor adjustable for various conditions

Exhaust System

  • Features large-diameter O-ring and groove on exhaust pipe for improved durability and easy installation
  • Aluminum silencer is re-packable like larger KX models

Clutch

  • Thick-base clutch hub rides on needle bearings for smooth action
  • Large, 119mm clutch plates add durability and control
  • Clutch-release lever ratio is designed for light clutch lever action
  • Clutch plate service cover simplifies maintenance and utilizes a metal-carbon composite gasket

Six-speed Transmission

  • Positive shifting action and rugged durability
  • Fifth and sixth gears ride on bushings for added reliability
  • Shift forks are hard chrome-finished to resist wear and seizing
  • Convenient oil-level window offers easy level checks
  • Bushings on the second, third and fourth gears increase durability

High-tensile Steel Perimeter Frame

  • Wide, steel footpegs offer added control and strength.
  • Thick footpeg-mount brackets withstand today’s rigorous tracks
  • Engine and chassis bolts feature rust-resistant coating

Fuel Tank

  • Fuel tank design lowers center of gravity for improved handling

Uni-Trak® Rear Suspension

  • Swingarm uses large cross-section beams for improved rigidity and control
  • Cast-aluminum drive chain adjuster sections allow easy chain adjustments
  • Shock is fully adjustable for compression and rebound damping and spring preload

36mm Inverted Cartridge Fork

  • Inverted fork is rigid, providing better steering response and control
  • Compression damping is 18-way adjustable
  • Aluminum upper fork tubes measure 49.5mm in diameter for flex-free performance

Disc Brakes

  • Front brake lever shape offers optimum feel
  • Forged-aluminum rear brake pedal is strong, lightweight and features two seals at the pivot for smooth operation and increased durability
  • Provide strong braking power with minimal effort

Lightweight Aluminum Rims

  • Black-coated lightweight aluminum rims offer a factory look
  • Rear hub features two bearings on the drive side for added durability
  • Large rear-axle diameter for optimum rigidity

Graphics

  • Aggressive Kawasaki graphics complement the black frame and wheels
  • Silver clutch and ignition covers resist the signs of boot rub to help keep the KX looking fresh, longer

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
