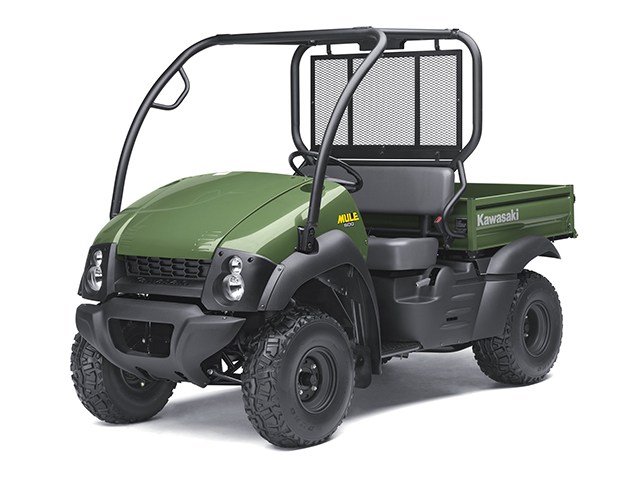

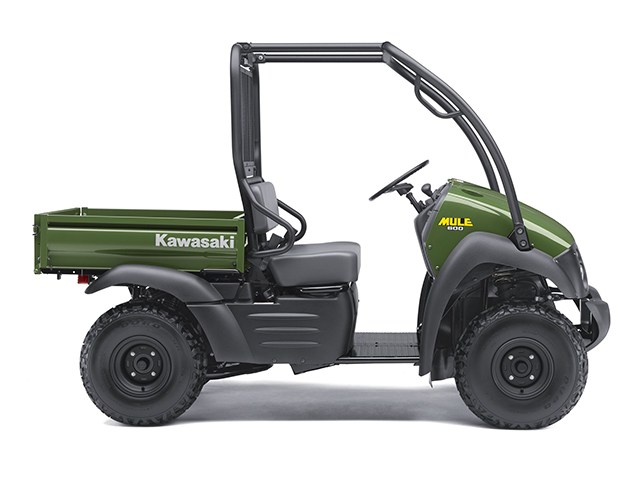

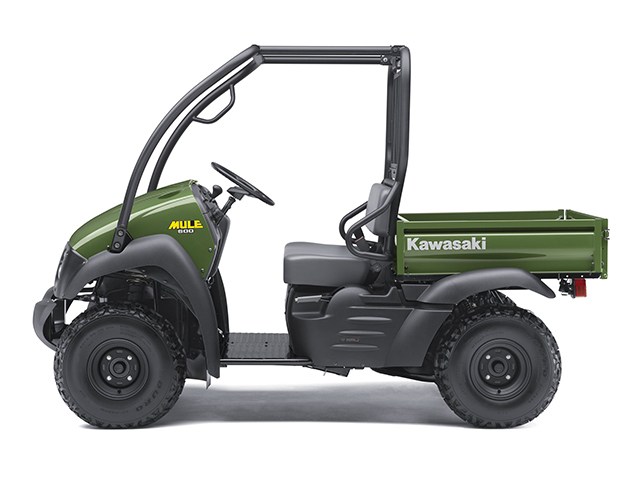

2013 Kawasaki MULE™ 600

2013 Kawasaki MULE™ 600
Scout Green
MSRP: $6,899.00
Manufacturer: Kawasaki
Condition: New

Description

Kawasaki’s Mule™ 600 utility vehicle offers an unbeatable combination of durability and value. It is a great tool for getting things done, whether your day calls for hauling tools around a construction site, delivering needed supplies to far-flung parts of a farm, or just enjoying some time out in the woods. The Mule 600 can help make every job quicker and easier. With a price tag that makes it easy on the wallet, the Mule 600 offers great value. And with its compact size, the Mule 600 fits easily into the bed of a full-sized pickup.

At A Glance…

  • Rugged and compact off-road utility vehicle
  • Easy to use, with low operating costs
  • Can be easily transported in the bed of a full-size pickup
  • Can tow up to 1,100 lbs. with optional Kawasaki trailer hitch installed

Specifications

Specifications

Engine
Four-stroke, air-cooled single
Displacement
401cc
Bore x Stroke
82 x 76mm
Compression ratio
8.3:1
Carburetion
Nikki 6C1026
Air filter
Snorkel-type with two-stage dry replaceable element
Oil filter
Automotive-type spin-on canister
Ignition
Magneto and transistor
Electrical
12VDC, 14 amp-hour battery, alternator
Transmission
Kawasaki Automatic Power-Drive System (KAPS), with reverse
Final drive
Shaft, dual-mode rear differential
Exhaust
Muffler with USFS-approved spark arrestor
Front Tire Size
22x9-10 tubeless
Rear Tire Size
22x11-10 tubeless
Front suspension / wheel travel
MacPherson struts / 3.1 in.
Rear suspension / wheel travel
Unit swing axle, adjustable shocks / 3.1 in.
Steering
Rack and pinion
Brakes
Four-wheel hydraulic drum
Fuel capacity
4.1 gallons
Curb weight
956 lbs.
Overall length
108.8 in.
Overall width
52.6 in.
Overall height
70.1 in.
Wheelbase
70.0 in.
Ground clearance
6.1 in.
Roll over protective structure (ROPS)
This structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5. This structure also meets FMVSS 216 Roof Crush resistance requirement
Cargo bed dimensions (LxWxH)
41.1 x 35.4 x 9.6 in. / 8.08 cu. ft.
Cargo bed capacity
400 lbs.
Load capacity
926 lbs.
Towing capacity
1,100 lbs.
Turning radius
10.8 ft.
Top speed
25 mph, governed
Lighting
(2) 35w headlights, and tail/brake light
Instruments
Hour meter
Color Choices
Scout Green
Warranty
12 Months
Good Times™ Protection Plan
12, 24, 36 or 48 months


Features

At A Glance…

  • Rugged and compact off-road utility vehicle
  • Easy to use, with low operating costs
  • Can be easily transported in the bed of a full-size pickup
  • Can tow up to 1,100 lbs. with optional Kawasaki trailer hitch installed

Fan-Cooled, Single-Cylinder Engine

  • Durable, lightweight, uncomplicated and quiet 401cc four-stroke engine
  • Modern four-stroke overhead valve design for great fuel economy
  • Cooling fan helps the engine maintain an ideal operating temperature

Easy Starting

  • Choke opens throttle during starting so accelerator pedal does not need to be depressed
  • Can be started in gear by depressing brake pedal

Gear-Driven Engine Balancer

  • Balance weight moves opposite the piston, dramatically reducing vibration, minimizing noise and wear
  • Maximizes operator comfort and diminishes fatigue

Environmentally Friendly Emissions

  • Carburetor settings reduce exhaust emissions
  • Positive crankcase ventilation system recycles blow-by gases to the intake tract to be burned in the engine
  • Muffler has USFS-approved spark arrestor
  • California models have a check valve on the fuel tank/charcoal canister connector hose to prevent gasoline from entering the canister when operating on inclines or over rough terrain

Kawasaki Automatic Power-Drive System (KAPS)

  • Simple and lightweight CVT is fully automatic and keeps engine speed in the most efficient range for any selected vehicle speed, load or terrain
  • An open-sided drive pulley keeps cool for longer belt life
  • Belt deflection can be easily adjusted by changing shim thickness of the adjuster bolt located on the outside of the driven converter
  • Cooling air flows in from a vent in the cab frame through a special air filter, which keeps out water and dust for increased belt life
  • Long-wearing double cog CVT belt

Dual-Mode Differential

  • Locked mode for maximum traction in difficult conditions
  • Unlocked mode decreases turning radius and minimizes ground disturbance – great for use on grass.

Rack-and-Pinion Steering

  • Rack-and-pinion steering helps to keep steering light and accurate, which makes maneuvering in tight working quarters a snap
  • Durable, simple and easy to maintain

MacPherson Strut Independent Front Suspension

  • Comfortable ride and excellent load-carrying capability
  • Simple, rugged single A-arm design offers tight turning radius for extra maneuverability

Unit Swingarm Rear Suspension

  • Unique design places engine and rear wheels on a sub-frame with a mid-point pivot
  • Isolates vibration
  • Can handle heavy loads, yet provides a comfortable ride even with an empty cargo bed

Off-Road Tires

  • Special tread pattern and 22-inch tires enhance off-road traction and ride quality while reducing tire wear

Chassis

  • Self-adjusting, hydraulic drum brakes at all four wheels provide ample stopping power
  • Front grille includes space for mounting a 3000-pound capacity winch
  • Compact, lightweight and easy to transport to the job; easily fits in the bed of a full-sized pickup
  • Bench seat is spacious and comfortable for two
  • Durable plastic body panels resist dents, while color is molded in for long-lasting good looks

Safety Equipment

  • Meets Roll Over Protective Structure (ROPS) requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5; also meets FMVSS 216 roof crush resistance requirement
  • Speed limited to 25 mph

Ample Storage

  • Large storage tub under the hood with four D-rings to secure the load
  • Passenger side glove box
  • Cup holders located at each side of the front hood by the dash

Tilting Cargo Bed

  • Steel cargo bed can carry up to 400 pounds
  • Thick tailgate panel and secure latching tailgate locking pins reduce vibration and noise, and add durability

Simple Maintenance

  • Crankcase oil level dipstick
  • Dual element air cleaner
  • CVT cover has a convenient drain plug

Cab Features

  • Automotive-style dash designed for ease of use with easy reach controls
  • Standard equipment hour meter makes maintenance intervals easy to track
  • Fuel gauge
  • Oil temperature warning light
  • Gear selector for Forward, Neutral and Reverse
  • Differential locking lever
  • Convenient parking brake
  • Headlight switch for powerful and stylish 35w headlights

Popular Accessory Items

  • Soft or Hard Top
  • Windshield
  • Winch
  • Enclosed Cab
  • Snow Plow
