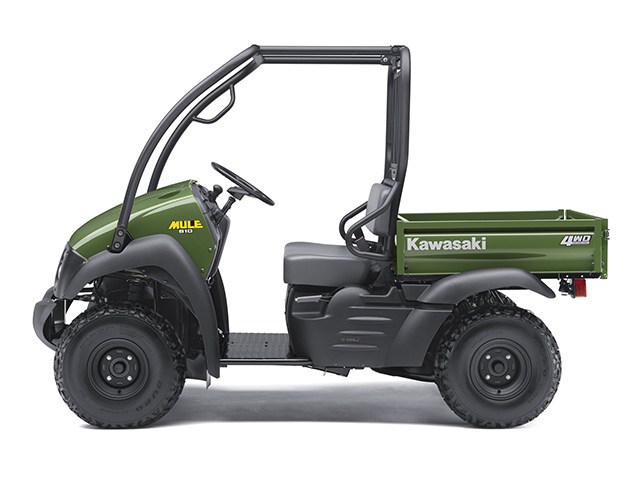

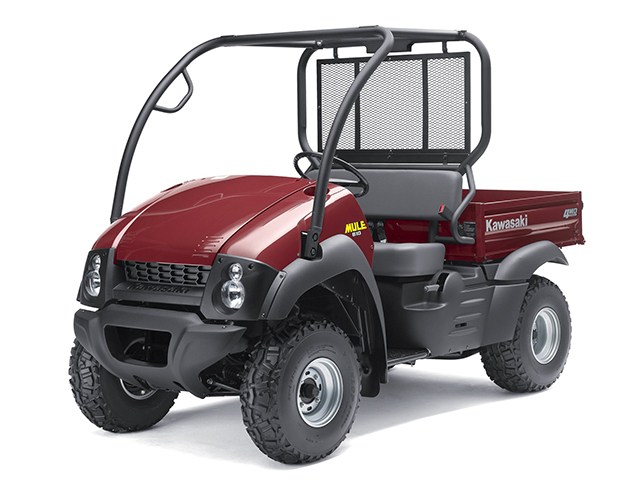

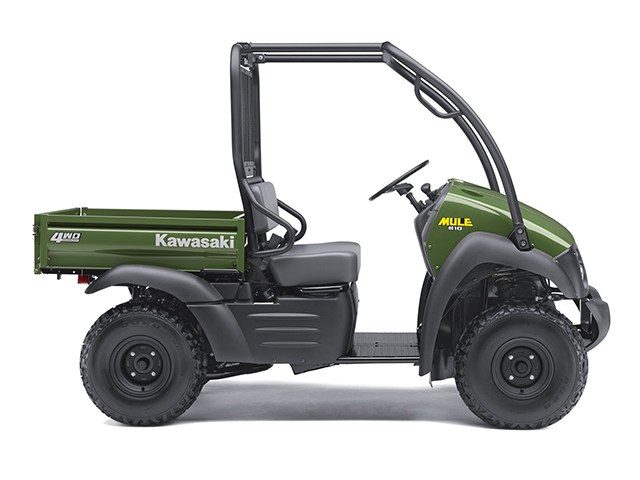

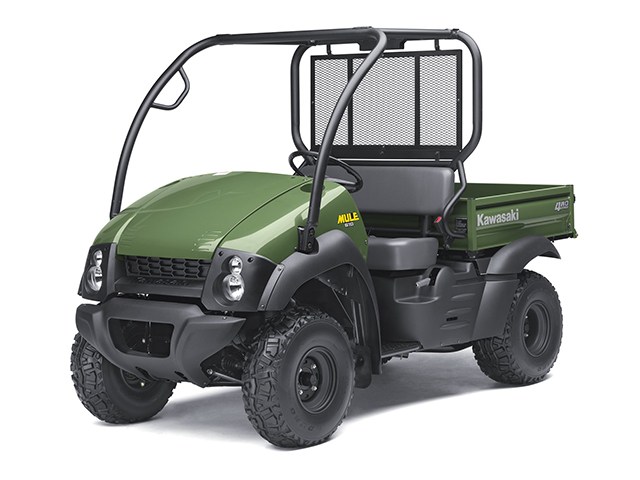

2013 Kawasaki MULE™ 610 4X4

2013 Kawasaki MULE™ 610 4X4
Dark Royal Red
MSRP: $7,699.00
Manufacturer: Kawasaki
Condition: New

Description

In addition to being a dependable compact utility vehicle, the Mule™ 610 4x4 also offers an extra boost of functionality thanks to selectable four-wheel drive. It includes all the handy and easy-to-use features of the Mule 600, so the 610 4x4 represents a great value – it is a truly versatile and durable utility vehicle. And because it easily fits into the bed of a full-sized pickup truck, the Mule 610 4x4 is easy to transport to remote job sites.

At A Glance…

  • Rugged and compact 4x4 off-road utility vehicle
  • Can be easily transported in the back of a full-size pickup truck
  • Can tow up to 1,100 lbs. with optional Kawasaki trailer hitch installed

Specifications

Specifications

Engine
Four-stroke, air-cooled single
Displacement
401cc
Bore x Stroke
82 x 76mm
Compression ratio
8.6:1
Carburetion
Nikki 6C1026
Air filter
Snorkel-type with two-stage dry replaceable element
Oil filter
Automotive-type spin-on canister
Ignition
Magneto and transistor
Electrical
12V DC, 14 amp-hour battery, alternator
Transmission
Continuously variable transmission with high and low range, plus reverse
Final drive
Shaft-driven selectable four-wheel drive, dual-mode rear differential
Exhaust
Muffler with USFS-approved spark arrestor
Front Tire Size
24x9-10 tubeless
Rear Tire Size
24x11-10 tubeless
Front suspension / wheel travel
MacPherson strut / 3.1 in.
Rear suspension / wheel travel
Unit swing axle / 3.1 in.
Front Tire Size
23x11-10 tubeless
Rear Tire Size
23x11-10 tubeless
Steering
Rack and pinion
Brakes
Four-wheel hydraulic drums, triple sealed
Fuel capacity
4.1 gal.
Curb weight
1,010 lbs.
Overall length
108.8 in.
Overall width
52.6 in.
Overall height
70.9 in.
Wheelbase
70.0 in.
Ground clearance
6.7 in.
Roll over protective structure (ROPS)
This structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5. This structure also meets FMVSS 216 Roof Crush resistance requirement
Cargo bed dimensions (LxWxH)
41.1 x 35.4 x 9.6 in. / 8.08 cu. ft.
Load capacity
926 lbs.
Cargo Bed Capacity
400 lbs.
Towing capacity
1,100 lbs.
Turning radius
10.8 ft.
Top speed
25 mph, governed
Lighting
(2) 35w headlights, and tail/brake light
Instruments
Oil temperature meter, hour meter
Color Choices
Dark Royal Red, Scout Green
Warranty
12 Months
Good Times™ Protection Plan
12, 24, 36 or 48 months


Features

At A Glance…

  • Rugged and compact 4x4 off-road utility vehicle
  • Can be easily transported in the back of a full-size pickup truck
  • Can tow up to 1,100 lbs. with optional Kawasaki trailer hitch installed

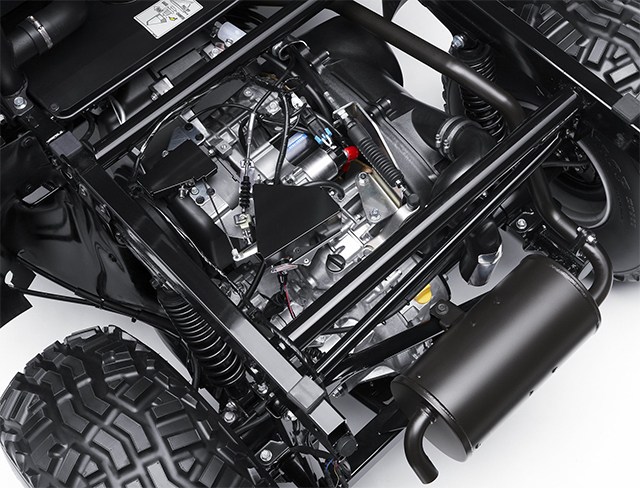

Fan-Cooled, Single-Cylinder Engine

  • Simple, lightweight, durable and quiet 401cc four-stroke engine
  • Modern four-stroke overhead valve design for efficient running and good fuel economy
  • Fan cooling helps the engine maintain an ideal operating temperature

Easy Starting

  • Choke opens throttle during starting so accelerator pedal does not need to be depressed
  • Can be started in gear by stepping on the brake pedal

Gear-Driven Engine Balancer

  • Balance weight moves opposite the piston, dramatically reducing vibration, minimizing noise and wear
  • Maximizes operator comfort and diminishes fatigue

Environmentally Friendly Emissions

  • Carburetor settings reduce exhaust emissions
  • Positive crankcase ventilation system recycles blow-by gases to the intake tract to be burned in the engine
  • Muffler has USFS-approved spark arrestor
  • California models have a check valve on the fuel tank/charcoal canister connector hose to prevent gasoline from entering the canister when operating on inclines or over rough terrain

Kawasaki Automatic Power-Drive System (KAPS)

  • Simple and lightweight CVT is fully automatic and keeps engine speed in the most efficient range for any selected vehicle speed, load or terrain
  • Fully automatic transmission with selectable 2
  • or 4-wheel drive
  • An open-sided drive pulley cools effectively for long belt life
  • Belt deflection can be easily adjusted by changing the shim thickness of the adjuster bolt located on the outside of the driven converter
  • Cooling air flows in from a vent in the cab frame through a special air filter, which keeps out water and dust for increased belt life
  • Exhaust duct design prevents contact with the frame
  • Long-wearing double cog CVT belt

Dual-Mode Differential

  • Locked mode for maximum traction in difficult conditions
  • Unlocked mode decreases turning radius and minimizes ground disturbance – great for use on grass

Rack-and-Pinion Steering

  • Rack-and-pinion steering helps keep steering light and accurate, which makes maneuvering in tight working quarters a snap
  • Durable, simple and easy to maintain

MacPherson Strut Independent Front Suspension

  • Comfortable ride and excellent load-carrying capability
  • Simple, rugged single A-arm design offers tight turning radius for extra maneuverability

Unit Swingarm Rear Suspension

  • Unique design places engine and rear wheels on a sub-frame with a mid-point pivot
  • Isolates vibration
  • Can handle heavy loads, yet provides comfortable ride even with an empty cargo bed

Tires

  • Large 24-inch tires feature a tread pattern that offers good off-road traction and ride quality while keeping tire wear low

Chassis

  • Self-adjusting, hydraulic drum brakes at all four wheels provide ample stopping power
  • Front grille includes space for mounting a 3,000-pound-capacity winch
  • Compact, lightweight and easy to transport to the job; easily fits in the bed of a full-sized pickup
  • Bench seat is spacious and comfortable for two
  • Durable plastic body panels resist dents, while color is molded in for long-lasting good looks

Safety Equipment

  • Meets Roll Over Protective Structure (ROPS) requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5, and also meets FMVSS 216 roof crush resistance requirement
  • Speed limited to 25 mph

Ample Storage

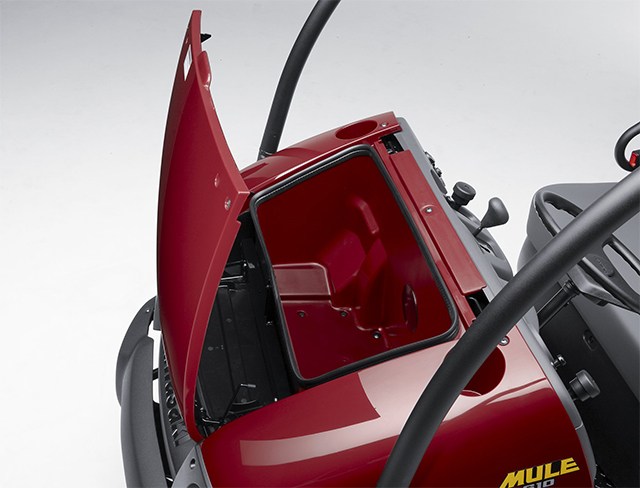

  • Large storage tub under the hood with four D-rings to secure the load
  • Passenger side glove box
  • Cup holders located at each side of the front hood by the dash

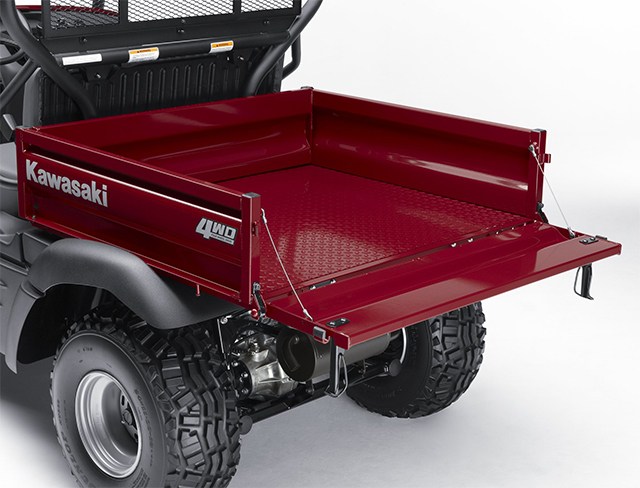

Tilting Cargo Bed

  • Steel cargo bed can carry up to 400 pounds
  • Thick tailgate panel and secure latching tailgate locking pins reduce vibration and noise, and add durability

Simple Maintenance

  • Crankcase oil level dipstick
  • Dual element air cleaner
  • CVT cover has a convenient drain plug

Cab Features

  • Automotive-style dash designed for ease of use with easy to reach controls
  • Standard equipment hour meter makes maintenance intervals easy to track
  • Fuel gauge
  • Oil temperature warning light

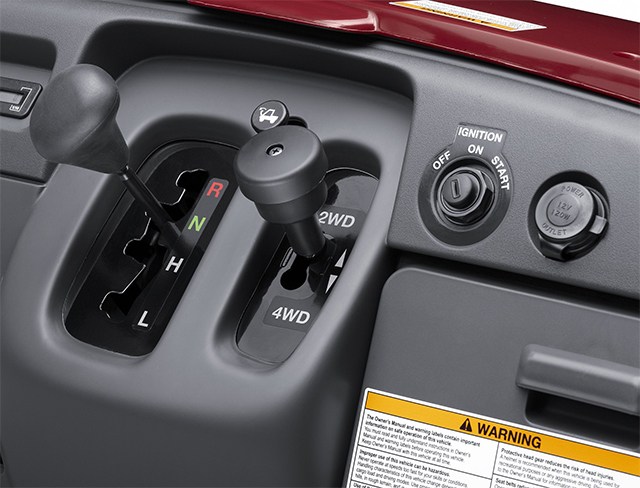

  • Gear selector for High, Low, Neutral and Reverse

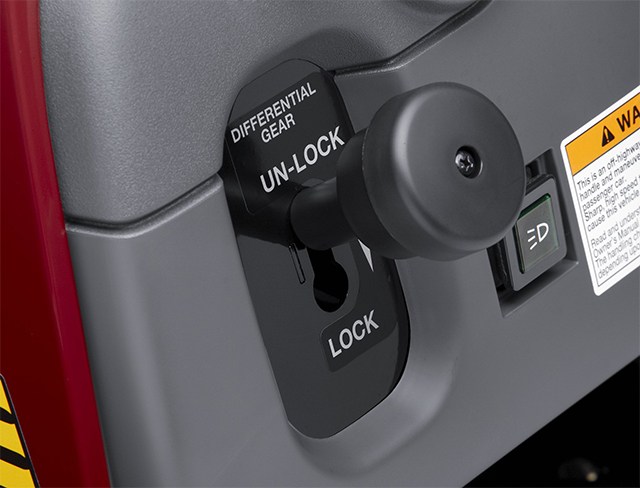

  • Differential locking lever
  • Convenient parking brake
  • Headlight switch for powerful and stylish 35w headlights

Popular Accessory Items

  • Soft or Hard Top
  • Windshield
  • Winch
  • Enclosed Cab
  • Snow Plow

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
