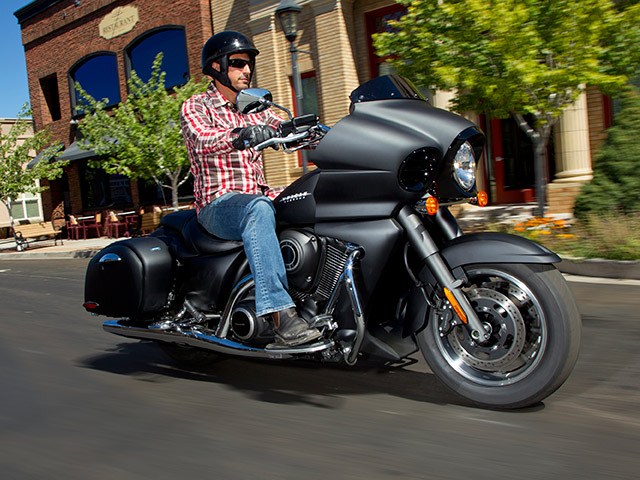

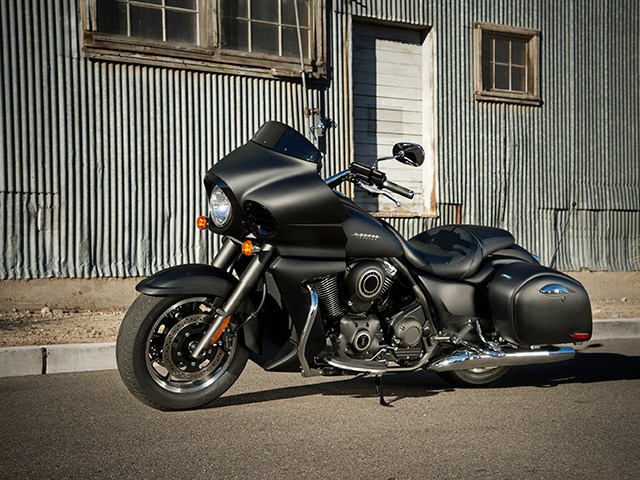

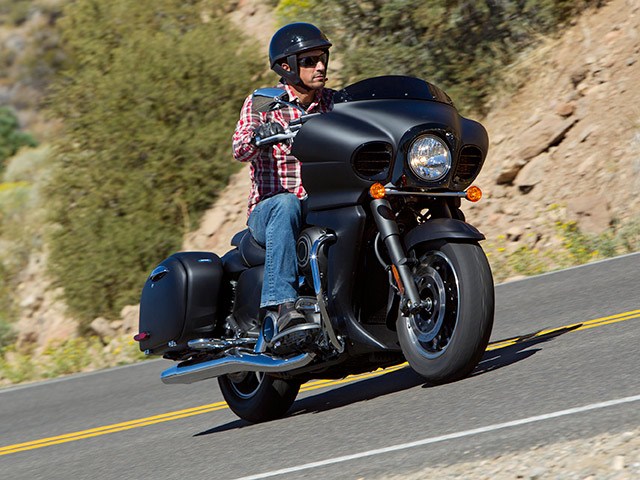

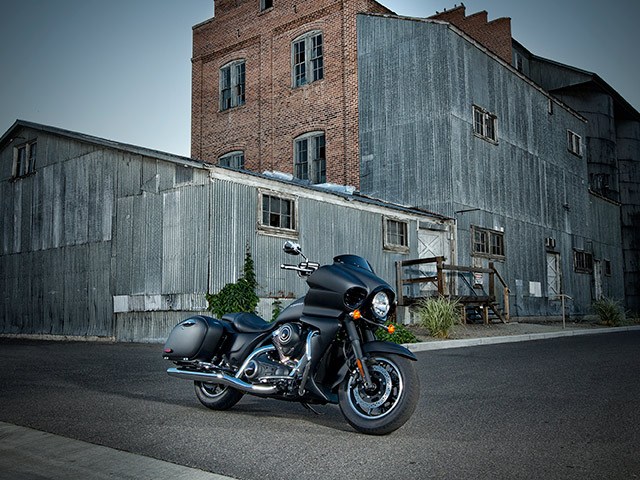

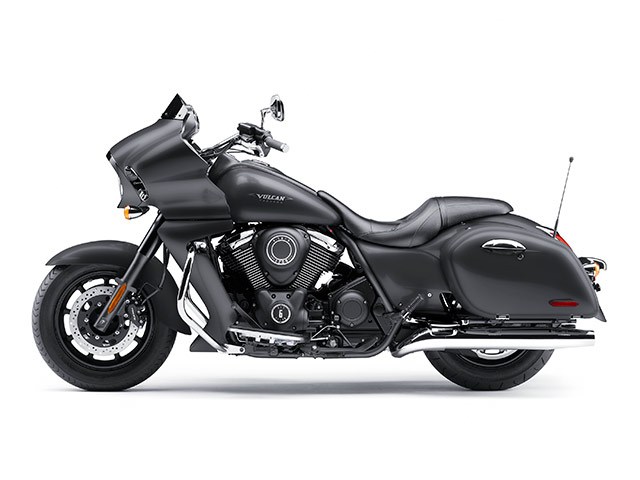

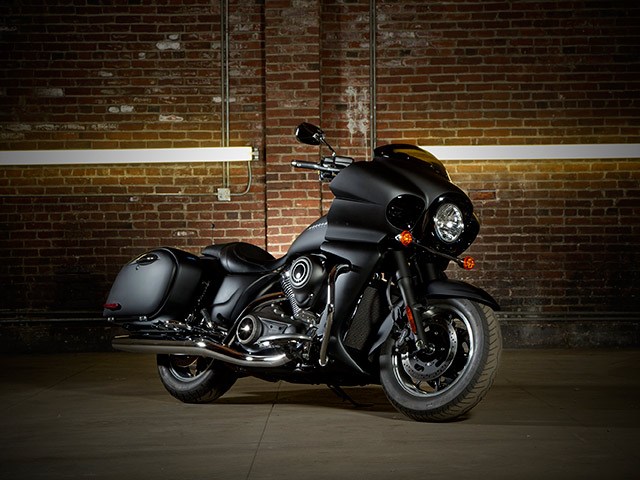

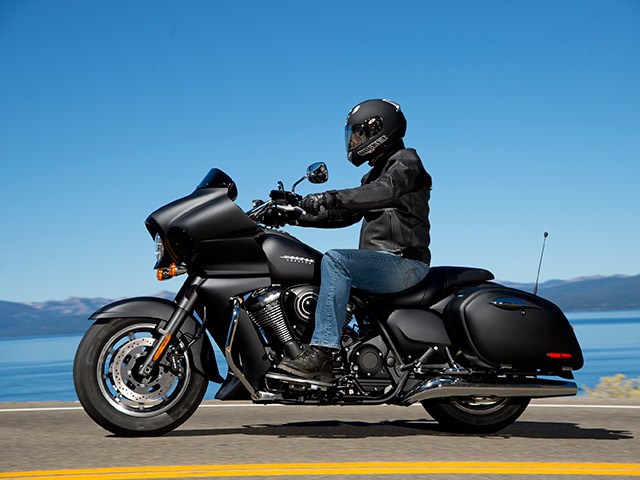

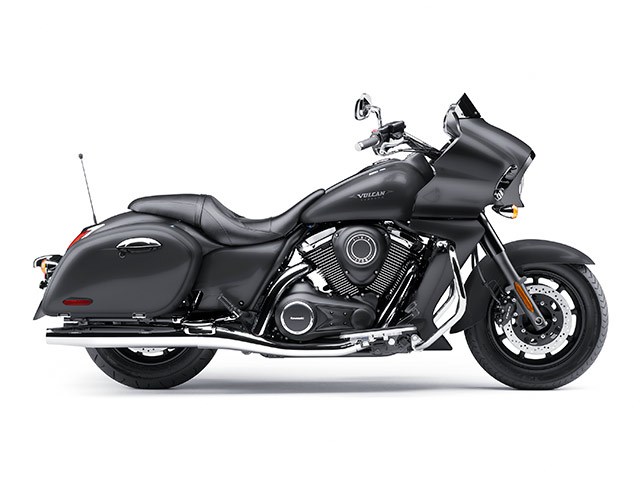

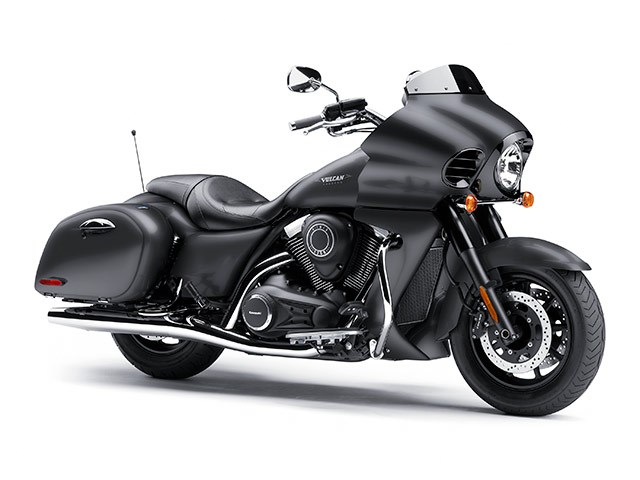

2013 Kawasaki VULCAN® 1700 VAQUERO®

2013 Kawasaki VULCAN® 1700 VAQUERO®
Metallic Flat Spark Black
MSRP: $17,149.00
Manufacturer: Kawasaki
Condition: New

Description

The Vulcan® 1700 Vaquero® has an impressive presence that lets everyone know this big, stylish V-twin bagger excels on the open road. Engineered and built for long-term dependability the Vaquero also brings a healthy dose of practicality in addition to its dominating presence. Its roomy cockpit and long list of standard features like electronic cruise control and a high output audio system make this much more than just a powerful cruiser, they give the Vaquero the impressive ability to handle a night on the town or a week on the road with an equal measure of grace and style!

Key Features

  • Aggressive blacked-out looks and strong styling cues emphasize the simple character of the body shapes
  • Low seat height with sporty one-piece seat contributes to long, low classic “bagger” look
  • Unique “muscle car” styled instrumentation keeps the rider fully informed
  • 1,700cc V-twin puts out loads of torque and offers outstanding passing power
  • 6-speed transmission allows for relaxed cruising
  • Electronic throttle actuation system helps ensure optimized injector timing and throttle valve position, resulting in an accurate, powerful engine response
  • Electronic cruise control maintains speed for more comfort on long trips
  • Frame-mounted front fairing directs aerodynamic forces to the chassis to keep steering feel light
  • Audio system has FM, AM and WX and is compatible with iPod, XM tuner, select GPS units, or a CB radio
  • Twin tapered mufflers maximize saddlebag capacity
  • Includes a 36 month limited factory warranty that can be supplemented with up to an additional 36 months of Kawasaki’s Good Times™ Protection Plan. That’s a total of up to an amazing SIX YEARS of coverage!

Specifications

Specifications

Engine
Four-stroke, liquid-cooled, SOHC, four valve per cylinder, 52° V-twin
Displacement
1,700cc / 103.7ci
Bore x Stroke
102 x 104mm
Compression ratio
9.5:1
Maximum Torque
108 lb-ft @ 2,750 rpm
Cooling System
Liquid, plus cooling fins
Ignition
TCBI with Digital Advance
Induction
Digital fuel injection, dual 42mm throttle bodies
Transmission
6-speed with overdrive and positive neutral finder
Final Drive
Belt
Frame Type
Steel, double-cradle with box-section single-tube backbone
Rake/Trail
30° / 7.0 in.
Front Suspension / wheel travel
45mm hydraulic fork / 5.5 in.
Rear Suspension / wheel travel
Swingarm with twin air-assisted shocks, with 4-way rebound damping / 3.1 in.
Front Tire Size
130/90x16
Rear Tire Size
170/70x16
Brakes, front / rear
Dual 300mm discs, dual twin-piston calipers / Single 300mm disc, twin-piston caliper
Overall length
98.8 in.
Overall width
38.2 in.
Overall height
50.8 in.
Ground Clearance
5.7 in.
Seat height
28.7 in.
Curb weight
835.7 lbs.**
Wheelbase
65.6 in.
Fuel capacity
5.3 gal.
Color Choices
Metallic Flat Spark Black
Warranty
36 months
Good Times™ Protection Plan
12, 24 or 36 months
**
Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90-percent capacity) and tool kit (if supplied).


Features

Key Features

  • Aggressive blacked-out looks and strong styling cues emphasize the simple character of the body shapes
  • Low seat height with sporty one-piece seat contributes to long, low classic “bagger” look
  • Unique “muscle car” styled instrumentation keeps the rider fully informed
  • 1,700cc V-twin puts out loads of torque and offers outstanding passing power
  • 6-speed transmission allows for relaxed cruising
  • Electronic throttle actuation system helps ensure optimized injector timing and throttle valve position, resulting in an accurate, powerful engine response
  • Electronic cruise control maintains speed for more comfort on long trips
  • Frame-mounted front fairing directs aerodynamic forces to the chassis to keep steering feel light
  • Audio system has FM, AM and WX and is compatible with iPod, XM tuner, select GPS units, or a CB radio
  • Twin tapered mufflers maximize saddlebag capacity
  • Includes a 36 month limited factory warranty that can be supplemented with up to an additional 36 months of Kawasaki’s Good Times™ Protection Plan. That’s a total of up to an amazing SIX YEARS of coverage!

Powerful 1,700cc V-twin engine

  • Fuel-injected 52-degree 1,700cc V-twin is liquid-cooled and features four valves per cylinder
  • Long-stroke 102 x 104mm bore and stroke dimensions deliver high torque levels with a powerful and distinct V-twin feel
  • Valve-actuation system uses a single overhead cam arrangement instead of pushrods for quicker revving and enhanced mid-high rpm power
  • Semi-dry sump design allows lower crankshaft positioning and a longer piston stroke without increasing engine height
  • Single-pin crankshaft accentuates the engine’s V-twin character by providing strong power pulses
  • Large-capacity airbox is located on both sides of the engine
  • Small-diameter iridium sparkplugs reach deep into the combustion chamber for high combustion efficiency, especially during low-load operation
  • Engine tuning, combined with long-stroke design, offers superior acceleration in the 50-70 mph range
  • Even in overdrive (5th and 6th gear) the engine pulls strongly, making highway passing easier

Digital Fuel Injection

  • The touring-oriented Voyager utilizes DFI® and an exhaust system tuned to reach peak torque and horsepower at a higher rpm than the engines used in standard Vulcan 1700 cruisers

Electronic Throttle Valve System

  • Fully electronic throttle actuation system enables the ECU to control the volume of intake air (via throttle valve angle) and fuel (via fuel injector timing) delivered to the engine
  • Optimized injector timing and throttle valve position results in accurate, powerful engine response
  • Control of both injection and airflow provides easy starting and precise cold-engine idle speed control
  • From the rider’s perspective, the ETV system works like a standard cable-operated throttle; the throttle grip remains connected to cables, so the feel at the grip is the same
  • Twisting the throttle turns a pulley on the throttle body, which triggers the Accelerator Position Sensor (APS) to send a signal to the ECU, which then modulates the throttle valves via a DC motor
  • Accurate throttle position is relayed to the ECU by a Throttle Position Sensor (TPS)
  • APS and TPS send two sets of signals to the ECU for system redundancy in the unlikely event of a sensor failure

Electronic Cruise Control System

  • System maintains a desired speed even on uphill climbs
  • Cruise control can be engaged and adjusted entirely from the right handlebar
  • Cruise system can be activated in 3rd gear or above at any speed between 30 mph and 85 mph
  • Pressure on the brake lever, clutch lever or rear brake pedal automatically disengages the cruise control, as does manually rolling off the throttle

On Board Diagnostics

  • Diagnostic system allows self testing of the electronic systems on the Vulcan 1700
  • System displays codes on the instrumentation, which can be read by owner

6-speed Transmission / Final Drive

  • Durable and easy-shifting six-speed transmission with positive neutral finder
  • 5th and 6th are overdrive gears for excellent fuel economy when cruising at highway speeds
  • Carbon fiber-reinforced final drive belt offers a 40 percent increase in tensile strength compared to current Kevlar belts
  • Belt drive system is quiet, efficient and offers reduced maintenance compared to a chain

Chassis

  • The strong steel frame allows a relatively short wheelbase for optimal ergonomics and easy maneuverability
  • The Vaquero frame minimizes the number of forged parts and trims any unnecessary metal to help keep weight in check. The only forged parts are areas that require additional strength: the down-tube joint, engine brackets, side-stand bracket and rear fender/shock absorber bracket

45mm Telescopic Fork

  • Provides superb steering feedback
  • 5.5 inches of travel for excellent ride quality
  • Optimized damping and spring settings for a plush but controlled ride

Dual Air-adjustable Rear Shocks

  • Air-adjustable shocks can be tuned to match varying rider and passenger loads
  • 4-way rebound damping adjustability helps the shocks compensate for changes in spring pressure

9-Spoke Cast Aluminum Wheels

  • Light and strong wheels allow the use of tubeless tires, while flat black paint nicely complements the Vaquero’s styling treatment
  • Fat and long-wearing 130/90 front and 170/70 rear tires
  • Tire choice and suspension settings augment the chassis’ light handling characteristics

Styling and Bodywork

  • Basic engine architecture supports the Vaquero’s factory-custom look, while its blacked-out color with machined and bare-aluminum accents sets off the bike’s color scheme
  • Gloss and matte finishes on the engine highlight aesthetics even further
  • Hand-formed body shapes create a highly customized appearance
  • Many of the parts are exclusive to the Vaquero, which add to its factory-custom look and feel. These include the engine shrouds, rear fender, one-piece side covers, saddlebags, fairing and seat
  • Cut-down fairing looks like a true custom piece, right down to the abbreviated smoked windscreen and headlight cover
  • Louvre-style fog lamp covers can be replaced with accessory lamps
  • Sculpted strut covers seamlessly fill the space between the rear fender and saddlebags
  • Mufflers are tapered at their ends for a thoroughly retro look
  • Sculpted, custom-look seat looks good and cradles the rider for maximum comfort
  • LED taillight is attractive and highly conspicuous when lit for added safety

Wind Protection

  • Large, wide fairing with abbreviated windscreen and integrated lowers provides substantial wind and weather protection for riders
  • With the fairing mounted to the frame, any wind buffeting is transferred to the bike rather than the handlebar, helping to enhance highway stability and reduce rider fatigue

Convenient Storage

  • Vaquero features hard, lockable and sealed side-opening side cases that provide nearly 10 gallons of storage space each for overnight touring
  • Their flowing, rounded shape is an attractive alternative to the square, boxy luggage found on other bagger models
  • Up front, lockable glove boxes provide a handy place for storing smaller items
  • Dual under-seat helmet holders

Classic Custom Dashboard / Advanced Audio

  • Instrument layout and large round dials give the Vaquero’s console a custom look with a retro flavor
  • The radio/stereo unit features a classically custom look from the 1960s
  • Multi-function LCD display in the center of the instrument console is controlled by switches on the right handlebar. Features include a gear position indicator, fuel gauge, clock, odometer, dual trip meters, remaining range and average fuel consumption
  • Analog displays include speedometer, tachometer and coolant temperature gauge
  • Audio system with twin speakers features radio (FM/AM/WX) and compatibility with optional iPod®, XM tuner or CB radio units
  • The audio system (and your iPod, which plugs easily into the left fairing pocket) can be operated by switches on the left handlebar
  • Ignition switch allows key removal in the on position, which prevents keys from damaging the black finish tank cover during operation
  • Turning the ignition switch collar to the ACC position allows accessories to be used while the engine is off; turning it to the “OFF” position turns the engine off and necessitates re-insertion of the key to restart

Comfort

  • Sculpted seat blends a stylish shape with ideal foam density for all-day comfort
  • Scooped shape allows an easy reach to the ground
  • Upright riding position and rubber-topped floorboards contribute to substantial riding comfort
  • Dual adjustable rear air-shocks use settings optimized for a compliant ride and higher-load carrying when needed

Long Range

  • 5.3-gallon fuel tank offers a substantial range, helping to minimize fuel stops when out on the open road

Optional Accessories

  • A large number of genuine Kawasaki accessories are available, including iPod connector, XM radio module, standard gel seat, dual gel saddle, saddlebag liners, auxiliary lights, DC power sockets, GPS mount, billet handlebar clamps, engine cover trim, saddlebag top rails, custom cover and more. See your Kawasaki dealer for more information

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
