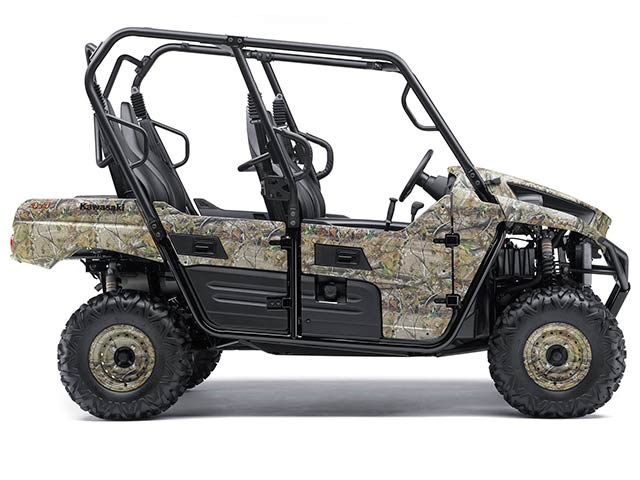

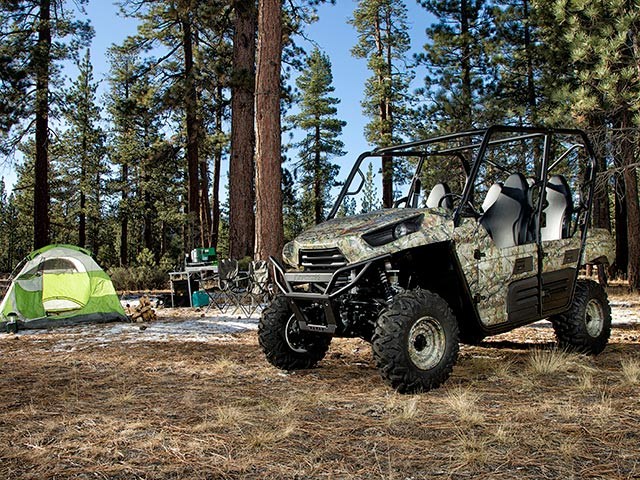

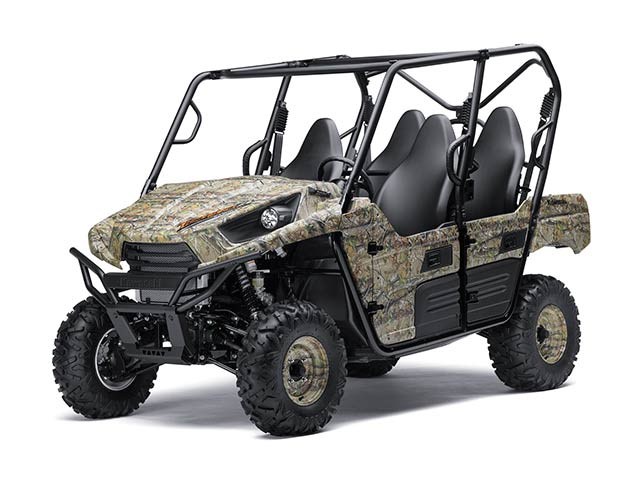

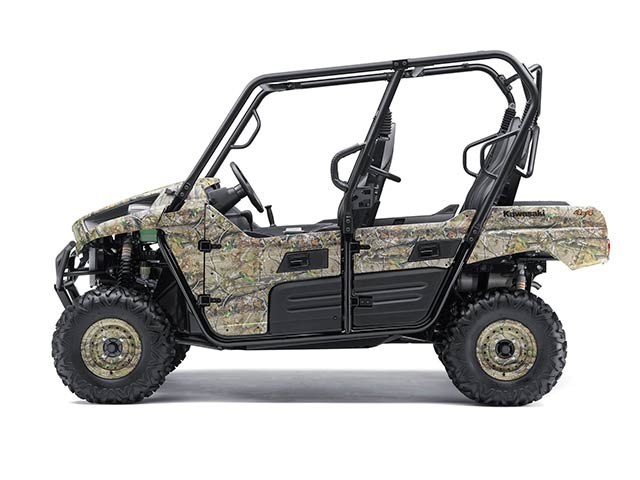

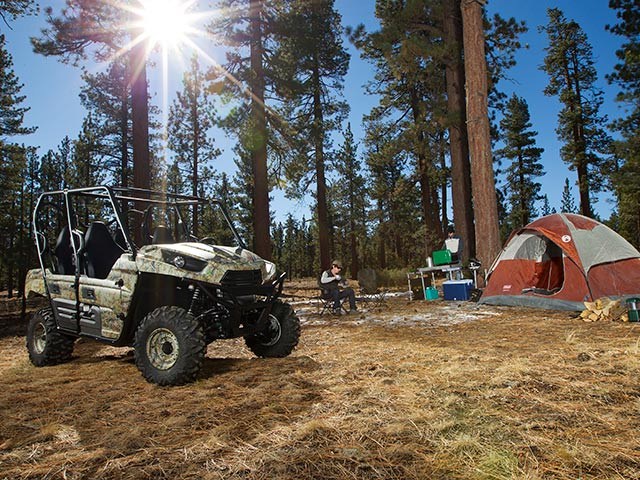

2013 Kawasaki TERYX4™ 750 4X4 EPS CAMO

2013 Kawasaki TERYX4™ 750 4X4 EPS CAMO
Realtree® APG™ HD®
MSRP: $15,299.00
Manufacturer: Kawasaki
Condition: New

Description

There are several choices in the four-seat camo side x side market, but none of them offer the strength of Kawasaki engineering coupled with the fun of a Teryx®, plus the convenience of electric power steering and the stealth of genuine Realtree® APG™ HD® camouflage. None, except the off-road rated Kawasaki Teryx4™ 750 4x4 EPS Camo! Its strong frame, torquey V-twin engine, and electric power steering make this durable Side x Side exceptionally fun and easy to drive, while additional camouflage on the door panels and wheels help maximize its outdoor style!

Key Features

  • Kawasaki engineering and construction that is visibly strong, with high-quality welds and a premium look that can only be found on Teryx side x sides
  • Genuine Realtree® APG™ HD® camouflage on the tough bodywork, door panels and wheels helps this durable Side x Side disappear into the great outdoors
  • Electric Power Steering (EPS) system offers low-effort steering and extra damping
  • Strong bodywork package offers good looks and extreme durability for the long haul, with scratch-resistant material used throughout, including the camouflaged doors
  • Roomy seating for four adults means twice the personal payload and twice the fun.
  • Perfectly balanced digital fuel injected 90o 749cc V-twin offers strong, usable power in the low and mid-range, exactly where a four-seat Side x Side needs it most
  • Super-strong double-X frame design offers rigidity and durability for the Teryx4’s extra weight and higher carrying capacity
  • Sport-focused suspension offers an ideal compromise between sporty control and plush ride comfort
  • Roomy interior lets the driver and three passengers stretch out, while ample cargo space means you can take along plenty of supplies and gear
  • Relatively short wheelbase allows a tight 16.7-foot turning radius (handy for close-quarters maneuvering) and the ability to climb over obstacles that would ground longer and lower vehicles
  • Superb off-road ability, including high-grade Maxxis Bighorn 26-inch tires on 12-inch rims, 10.8 inches of ground clearance, a 17-degree break-over angle, and 23.6-inch water fording depth
  • Continuously variable transmission (CVT) and a centrifugal clutch offer sporty performance and the slow-speed throttle precision needed in tricky or slow-speed conditions
  • Electronic three-mode transfer case is controlled by a handy cockpit switch and allows instantaneous changes from 2WD to 4WD and 4WD with differential lock for maximum traction situations
  • Dual 200mm front discs and a sealed multi-plate rear brake system help provide stopping power
  • Convenience features include standard body colored doors, auto-style parking brake, roomy cargo area, full instrumentation, passenger hand-holds, over fenders for mud protection, easy-opening front hood for maintenance and much more
  • Multi-function instrumentation offers the driver a host of important information, including speed, hour meter, fuel level and much more

Specifications

Specifications

Engine
Liquid-cooled, 90-degree, four-stroke V-twin
Valve system
SOHC, four valves per cylinder
Displacement
749cc
Starting System
Electric
Bore x stroke
85 x 66mm
Compression ratio
9.3:1
Fuel system
DFI® with two 36mm Mikuni throttle bodies
Ignition
TCBI w/ electronic advance
Transmission
Continuously variable belt-drive transmission w/ high and low range, reverse and a wet centrifugal clutch
Final drive
Selectable four-wheel drive w/ locking front differential, shaft
Frame
Double-X reinforced design using large-diameter, thin-walled, high-tensile tubular steel
Front suspension / wheel travel
Dual A-arm w/ preload-adjustable gas-charged shocks / 7.8 in.
Rear suspension / wheel travel
Adjustable Independent Rear Suspension (IRS) w/ fully adjustable, gas charged, reservoir shocks / 8.3 in.
Front tires
Maxxis 26x9-12
Rear tires
Maxxis 26x11-12
Front brakes
Dual hydraulic discs with 2-piston calipers
Rear brakes
Sealed, oil-bathed, multi-disc
Overall length
125.2 in.
Overall width
62.0 in.
Overall height
77.3 in.
Wheelbase
86.1 in.
Ground clearance
10.8 in.
Lighting
(2) 35W headlights, (2) 8 W taillight, 24 W stoplight
Cargo bed capacity
249 lbs., 47.6 W x 17.9 L x 8.7 in. H
Towing capacity
1,300 lbs.
Curb weight
1,624 lbs.
Fuel capacity
7.9 gal.
Instruments
Multi-function digital meter with speedometer, fuel gauge, clock hour meter, odometer, dual trip meter and parking-brake, CVT belt, R/N/P/4WD, water temp and oil pressure indicators
Color(s)
Realtree® APG™ HD®
Warranty
6 Months
Good Times™ Protection Plan
12, 24, 36 or 48 months


Features

Key Features

  • Kawasaki engineering and construction that is visibly strong, with high-quality welds and a premium look that can only be found on Teryx side x sides
  • Genuine Realtree® APG™ HD® camouflage on the tough bodywork, door panels and wheels helps this durable Side x Side disappear into the great outdoors
  • Electric Power Steering (EPS) system offers low-effort steering and extra damping
  • Strong bodywork package offers good looks and extreme durability for the long haul, with scratch-resistant material used throughout, including the camouflaged doors
  • Roomy seating for four adults means twice the personal payload and twice the fun.
  • Perfectly balanced digital fuel injected 90o 749cc V-twin offers strong, usable power in the low and mid-range, exactly where a four-seat Side x Side needs it most
  • Super-strong double-X frame design offers rigidity and durability for the Teryx4’s extra weight and higher carrying capacity
  • Sport-focused suspension offers an ideal compromise between sporty control and plush ride comfort
  • Roomy interior lets the driver and three passengers stretch out, while ample cargo space means you can take along plenty of supplies and gear
  • Relatively short wheelbase allows a tight 16.7-foot turning radius (handy for close-quarters maneuvering) and the ability to climb over obstacles that would ground longer and lower vehicles
  • Superb off-road ability, including high-grade Maxxis Bighorn 26-inch tires on 12-inch rims, 10.8 inches of ground clearance, a 17-degree break-over angle, and 23.6-inch water fording depth
  • Continuously variable transmission (CVT) and a centrifugal clutch offer sporty performance and the slow-speed throttle precision needed in tricky or slow-speed conditions
  • Electronic three-mode transfer case is controlled by a handy cockpit switch and allows instantaneous changes from 2WD to 4WD and 4WD with differential lock for maximum traction situations
  • Dual 200mm front discs and a sealed multi-plate rear brake system help provide stopping power
  • Convenience features include standard body colored doors, auto-style parking brake, roomy cargo area, full instrumentation, passenger hand-holds, over fenders for mud protection, easy-opening front hood for maintenance and much more
  • Multi-function instrumentation offers the driver a host of important information, including speed, hour meter, fuel level and much more

Liquid-cooled 749cc V-twin Engine

  • Digital fuel-injected 749cc SOHC, four-valve-per-cylinder, 90-degree V-twin with perfect primary balance pumps out substantial power, especially in the low and mid-range, precisely where a four-seat Side x Side needs it
  • More peak power and more focus on low and mid-range grunt than the two-seat Teryx® side x side
  • Oversquare (85 x 66mm) engine dimensions and high-flow four-valve cylinder heads contribute to the Teryx4’s superb acceleration, low and mid-range pulling power and overall engine flexibility
  • 90-degree V-twin configuration offers perfect primary balance, resulting in low engine vibration and maximum comfort for driver and passengers
  • Aluminum cylinders are electrofusion-plated for light weight and excellent heat dispersion – all of which add durability and reliability
  • Valve timing, lift and ignition timing are optimized, as is the exhaust system, for a powerplant that pumps out ideal power for a four-person Side x Side
  • Piston wall thickness, connecting rod bearing surfaces and crank journal surfaces are optimized for durability
  • Engine can be started in gear as long as the brake pedal is depressed
  • A heavy-duty liquid cooling system keeps temperatures under control in the harshest conditions, and provides long-term dependability
  • Underhood snorkel air intake and massive air box feed the engine plenty of clean air while minimizing intake noise. Easy maintenance design promotes long engine life
  • Paper air filter element offers plenty of surface area and excellent dust resistance
  • Large-capacity radiator is compact and placed high in the chassis for protection against mud and debris, while a large cooling fan increases cooling capacity, especially during slower going and while towing heavy loads
  • Large-diameter cooling-system hoses maximize coolant flow and overall capacity, while the coolant reservoir is located beneath the flip-up front cover for easy maintenance
  • Engine weight is reduced via numerous advanced technologies, including lightened crank webs, rare earth magnet usage, a small generator, and paring excess material wherever possible
  • An ignition cut-out protects the brake system by preventing driving when the parking brake is engaged

Digital Fuel Injection

  • Digital fuel injection system offers excellent throttle response and automatically adjusts for changes in temperature and elevation for optimum performance in a wide range of environments
  • The Teryx4’s FI system is controlled by a 32-bit ECU and continuously monitors coolant temperature, air-intake temperature and pressure, throttle position, vehicle speed and crankshaft angle to automatically provide the ideal amount of fuel via two 36mm throttle bodies, which include 12-hole fine-atomizing injectors, for extremely stable power delivery regardless of the conditions
  • FI system permits easy engine starting at low temperature and utilizes an Automatic Idle Speed Control and Automatic Fast Idle function to help ensure smooth engine warm up
  • The high-pressure fuel pump located within the tank features a unique reservoir chamber at the bottom of the pump to help ensure air does not leak into the fuel system
  • Specific Teryx-sized throttle bodies, optimized ignition timing and fine-atomizing injectors maximize low and mid-range torque as well as offer excellent response at higher rpm

Kawasaki Automatic Power-drive System CVT

  • Featuring high and low ranges, plus reverse, this advanced and continuously variable transmission provides extremely direct engine feel along with instantaneous acceleration from the centrifugal clutch
  • Transmission uses a strong, high-grade, Kevlar-impregnated belt designed to handle the high output of the engine. The drive converter shaft is hard chrome-finished for added durability
  • The CVT and power settings help prevent freewheel, improves rocky terrain performance and reduces belt overloading by adding Throttle Position Sensor (TPS) data into the system
  • Unnecessary belt wear is minimized with a system that reduces engine speed if the engine operates at high rpm for more than two seconds while the rear wheels are motionless
  • A large intake duct, located high to keep water and debris out, provides plenty of cooling air to the CVT
  • Heat shielding on the exhaust pipe below the intake duct helps minimize CVT temperatures

Responsive Centrifugal Clutch

  • The smooth centrifugal clutch is key to the Teryx4’s superior acceleration precision at slow and very slow speeds
  • Centrifugal clutch is located between the crankshaft and CVT drive pulley, which eliminates CVT belt shock and contributes to optimal transmission performance

Selectable Four-wheel Drive / Locking Front Differential

  • Selecting two or four-wheel drive is as easy as rotating a switch located on the dash to quickly choose between 2WD / 4WD / 4WD+differential lock
  • Limited-slip front differential reduces steering effort under normal four-wheel drive operation, while a convenient dash-mounted knob allows the front differential to be locked to help boost traction in slippery conditions

Electric Power Steering (EPS)

  • Electrically powered system reduces steering effort, especially at low speeds when turning effort is greatest
  • Input from vehicle speed and torque sensors determine the amount of steering assistance required from the system’s motor
  • Electric motor’s inertia reduces bump steer and kickback to the steering wheel caused by shocks to the wheels, resulting in a more comfortable and controlled ride

Strong Double-X Frame Design and Wide-body Chassis

  • The super-strong double-X frame design bridges each of the boxed sections with cross members that significantly stiffen and strengthen the overall structure, adding durability and reducing flex
  • Large-diameter yet thin-walled tubular steel frame combines high rigidity, light weight and mid-engine placement – a perfect combination for performance riding
  • Strong tubular steel cab framework meets SAE J1194, 7.1.1, 7.1.2, 7.4 and 7.5 requirements as a roll-over protective structure (ROPS) and protects driver and passengers from trees, bushes and other overhanging obstacles
  • Steel guards protect the engine from rocks and other trail hazards
  • Sport-focused suspension has optimized spring and damping settings for high-performance riding and a high degree of comfort with extra passengers
  • Wide-body track offers additional stability, especially at speed, yet turning radius remains surprisingly tight – 16.7 feet – thanks to the Teryx4’s short, 86.1-inch wheelbase
  • Short wheelbase offers other advantages, including a favorable breakover angle, which allows the Teryx4 to climb over obstacles without high-centering
  • Chassis offers 10.8 inches of ground clearance, an ideal compromise between sport handling and the ability to clear tough off-road obstacles
  • Frame design optimizes front and rear suspension lower A-arm lengths for precise handling and minimal geometry change throughout the suspension’s travel
  • Engine and undercarriage guards provide maximum protection from rocks and debris
  • Chassis and suspension serve up an ideal balance of bump absorption, taut steering and ride comfort with one, two, three or four occupants

Underhood Snorkel Air Intake

  • Underhood snorkel air intake and massive air box feed the engine plenty of clean air while reducing intake noise. Easy maintenance design promotes long engine life
  • Paper air filter element offers plenty of surface area and increased dust resistance

Sport-focused Suspension

  • High-performance preload adjustable gas-charged Kayaba shocks up front provide excellent fade-resistant damping performance in the toughest conditions while providing 7.8 inches of plush, controlled wheel travel
  • Independent rear suspension with fully adjustable piggyback-reservoir shocks provides 8.3 inches of wheel travel and the best possible performance and handling at high speeds
  • The piggyback reservoirs on the rear shocks help reduce oil frothing under hard conditions by keeping the shocks cooler under strain
  • A rear torsion bar helps minimize body roll, maximizing chassis performance

High-Performance Brakes

  • Dual front 200mm disc brakes gripped by rigid-mount 27mm twin-piston calipers provide powerful, fade-free braking and solid feel. To protect against damage and debris, the discs are tucked within wheel recesses
  • A sealed, oil-bathed multi-plate rear brake system provides maximum stopping power in almost any condition along with reduced maintenance due to its completely sealed design
  • The sealed rear brake’s compact design contributes to excellent ground clearance

Large, 26-inch Tires

  • 26-inch Maxxis tires developed specifically for the Teryx side x side provide outstanding traction in many different conditions
  • Mounted on 12-inch rims, they are some of the largest tires available in the Side x Side category and provide outstanding rough terrain performance and obstacle clearance

Handy Cargo Bed

  • Strong 18" x 48" cargo bed is both durable and plenty useful, especially with the extra passengers the Teryx4 can easily carry
  • With a 249-pound capacity and standard cargo hooks, the Teryx4’s cargo bed helps carry quite a bit of gear, making the four-person Teryx4 one massively functional Side x Side

Comfortable Cockpit and Ergonomics

  • With its massive passenger compartment, the Teryx4 provides plenty of shoulder and legroom
  • Form-fitting bucket seats (the front ones are three-way adjustable) and retractable three-point seatbelts (with an anti-cinch system) help provide a comfortable and secure ride
  • Rear seats are mounted higher than those in front, which helps passengers see clearly ahead and makes getting in and out much easier
  • Roomy seating position makes the Teryx4 easier get in and out of than other four-passenger sport Side x Sides
  • Hand holds for front and rear passengers are standard, making it easier to climb in and out
  • A drink holder for each seat is standard and helps keep occupants comfortable on long drives
  • Padded sport-style steering wheel is positioned low for comfort

Multi-function Digital Display

  • Standard on all models, the Multi-function Display includes a digital speedometer (mph or kph), clock, dual trip meters plus 2WD/4WD/4WD w/ differential lock indicator, water temperature and fuel-injection warning indicators, digital fuel gauge, hour meter, parking-brake indicator, CVT belt warning, neutral, reverse and low-oil-pressure warning lights, and much more

Bodywork

  • Strong thermoplastic olefin bodywork looks great and offers a scratch-resistant surface that’ll stay good looking much longer than the cheap plastic bodywork offered by some competitors
  • Premium automotive-style doors are covered in genuine Realtree® APG™ HD® camouflage, and offer easy access and an enhanced driving experience
  • Special over-fenders help keep flinging mud at bay, as well
  • Strong all-steel front guard helps protect the nose from brush, trail debris and minor impacts Forward-tilting front hood assembly offers aggressive styling and allows quick access to the radiator and front suspension components for easy maintenance and suspension tuning
  • Dual 35W headlights and 8/27W dual taillights mean you’ll see and be seen

Range / Transportability

  • Large 7.9-gal. (30L) fuel tank and excellent fuel efficiency provide workers, campers, hunters and trail explorers the ability to get far, far away and back again
  • Even with its wide track and big tires, the Teryx4 is compact enough to fit in the bed of most full-size pickup trucks
