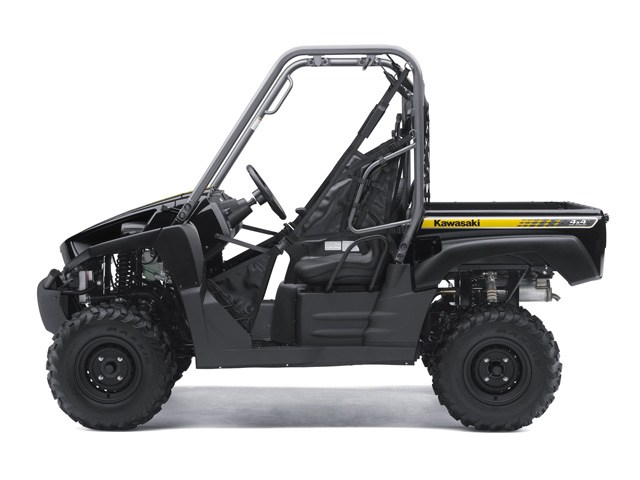

- 2013 Kawasaki TERYX® 750 FI 4X4

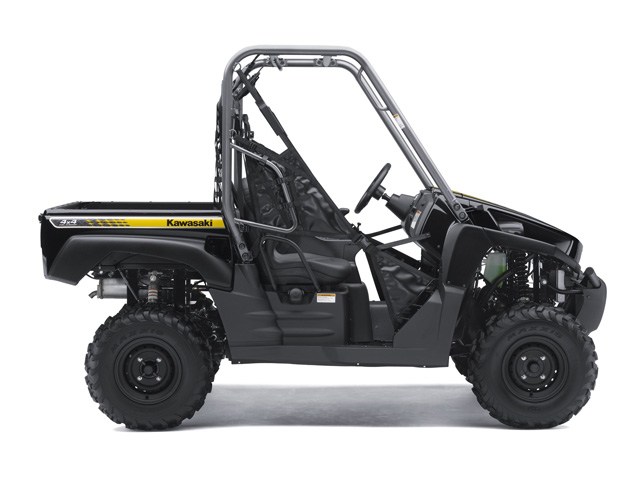

2013 Kawasaki TERYX® 750 FI 4X4
Super Black
MSRP: $10,999.00
Manufacturer: Kawasaki
Condition: New
Description
The Kawasaki Teryx™ 750 FI 4x4 side x side is the perfect companion for work and play. Impressive power and torque help to ensure the Teryx is ready for hard work on the job and hard play on the trail. Drivers will appreciate its wide range of capabilities and the crisp throttle response from the digital fuel injected (DFI®) V-twin as they blast down the trail. This fun and reliable Teryx proves to be one satisfying ride.
At a glance...
- Liquid-cooled, 749cc SOHC, four-valve, 90-degree V-twin engine provides excellent power with a distinctive V-twin sound
- Mid-ship engine placement provides optimum front/rear balance
- Digital fuel injection enhances throttle response, automatically adjusts for changes in temperature and elevation, and permits easy engine starting
- Continuously Variable Transmission features high and low ranges, a reverse gear, very direct feel from the engine, and instantaneous acceleration – ideal characteristics for sport riding
- Limited-slip front differential reduces steering effort under normal four-wheel drive operation, while Variable Front Differential Control permits the rider to distribute torque equally to left and right front wheels for maximum traction via a hand lever located between the seats
- Wide track chassis design helps enhance vehicle stability and provides plenty of shoulder and legroom to comfortably accommodate two adults
- Suspension designed to operate over varying terrain features a narrow frame to maximize the length of the front and rear lower A-arms, contributing to excellent handling traits
- Dual front 200mm disc brakes gripped by 27mm twin-piston calipers and Kawasaki’s sealed, oil-bathed, multi-disc rear brake system provide maximum stopping power in all conditions
- Large 26-inch Maxxis tires were specially developed for the Teryx to maximize forward traction while promoting optimum handling characteristics
- Battery and electric parts are located high in the chassis, out of the way of water and mud
Specifications
Specifications
Engine
Liquid-cooled, 90-degree, four-stroke V-twin
Valve system
SOHC, four valves per cylinder
Displacement
749cc
Starting System
Electric
Bore x stroke
85 x 66mm
Compression ratio
8.8:1
Fuel system
DFI® 2 x Mikuni 34 mm throttle bodies
Ignition
Digital DC-CDI
Transmission
Continuously variable belt-drive transmission with high and low range, plus reverse, and Kawasaki Engine Brake Control
Final drive
Selectable four-wheel drive with Variable Front Differential Control, shaft
Frame
Large diameter, thin-walled, high-tensile tubular steel
Front suspension / wheel travel
Adjustable dual A-arm with gas charged shocks / 7.5 in.
Rear suspension / wheel travel
Adjustable Independent Rear Suspension (IRS) with gas charged, reservoir shocks / 7.5 in.
Front tires
Maxxis 26x8-12
Rear tires
Maxxis 26x10-12
Front brakes
Dual hydraulic discs with 2-piston calipers
Rear brakes
Sealed, oil-bathed, multi-disc
Overall length
116.3 in.
Overall width
58.5 in.
Overall height
75.8 in.
Wheelbase
76.0 in.
Ground clearance
11.6 in.
Lighting
(2) 40W headlights, (2) 8W taillight, 27W stoplight
Cargo bed capacity
500 lbs., 44.2 W x 32.7 L x 11.1 in. H
Towing capacity
1,300 lbs.
Curb weight
1,397.3 lbs.
Fuel capacity
7.4 gal.
Instruments
Multi-Function Digital Meter with speedometer (mph or kph), fuel gauge, clock hour meter, odometer, dual trip meter and parking brake, R/N/P/4WD, water temp and oil pressure indicators
Color(s)
Super Black
Warranty
6 months
Good Times™ Protection Plan
12, 24, 36, & 48 months
Features
At a glance...
- Liquid-cooled, 749cc SOHC, four-valve, 90-degree V-twin engine provides excellent power with a distinctive V-twin sound
- Mid-ship engine placement provides optimum front/rear balance
- Digital fuel injection enhances throttle response, automatically adjusts for changes in temperature and elevation, and permits easy engine starting
- Continuously Variable Transmission features high and low ranges, a reverse gear, very direct feel from the engine, and instantaneous acceleration – ideal characteristics for sport riding
- Limited-slip front differential reduces steering effort under normal four-wheel drive operation, while Variable Front Differential Control permits the rider to distribute torque equally to left and right front wheels for maximum traction via a hand lever located between the seats
- Wide track chassis design helps enhance vehicle stability and provides plenty of shoulder and legroom to comfortably accommodate two adults
- Suspension designed to operate over varying terrain features a narrow frame to maximize the length of the front and rear lower A-arms, contributing to excellent handling traits
- Dual front 200mm disc brakes gripped by 27mm twin-piston calipers and Kawasaki’s sealed, oil-bathed, multi-disc rear brake system provide maximum stopping power in all conditions
- Large 26-inch Maxxis tires were specially developed for the Teryx to maximize forward traction while promoting optimum handling characteristics
- Battery and electric parts are located high in the chassis, out of the way of water and mud
Liquid-cooled 749cc V-twin Engine
- Teryx’s liquid-cooled, 749cc SOHC, fuel-injected, 90-degree V-twin engine cranks out class-leading power and offers unmatched smoothness
- Impressive torque is available from the oversquare (85 x 66mm) engine design, while 4-valve heads contributes to the Teryx’s superb acceleration
- The 90° V-Twin configuration offers perfect primary balance, resulting in low engine vibration
- Aluminum cylinders are Electrofusion-plated for light weight, long wear and excellent heat dispersion
- Engine can be started in any gear, as long as the brake pedal is depressed
- Kawasaki Engine Brake Control helps to slow the side x side on down hills
- The engine is positioned mid-ship, providing optimum front/rear balance and superb traction
- Ducts located by the cargo bed direct cooling air to the engine, while a heavy-duty liquid-cooling system keeps temperatures under control in the harshest conditions
- Large-capacity radiator is compact and placed high in the chassis for protection against mud and debris; a large cooling fan maximizes cooling capacity in slow going
- Ignition cut-out feature protects the brake system by preventing riding with the parking brake on
Digital Fuel Injection system
- Digital Fuel Injection enhances throttle response and automatically adjusts for changes in temperature and elevation for optimum performance in a wide range of environments
- The fuel injection system is controlled by a 32-bit CPU and continually monitors coolant temperature, air intake temperature, throttle position, air intake pressure, vehicle speed and crankshaft angle to automatically meter out the ideal amount of fuel via two 34mm throttle bodies for extremely stable power delivery – regardless of the conditions
- DFI system permits easy engine starting at low temperature and utilizes an Automatic Idle Speed Control and Automatic Fast Idle function to ensure smooth engine warm up
- High-pressure fuel pump located inside the tank features a unique reservoir chamber at the bottom of the fuel pump to ensure air does not get into the fuel system
- Specific Teryx-sized throttle bodies and optimized ignition timing maximize low and mid-range power and high rpm response
Kawasaki Automatic Power-Drive System CVT
- Featuring high and low ranges, plus reverse, the continuously variable transmission provides a direct feel from the engine and instantaneous acceleration – ideal characteristics for sportier riding
- Transmission uses a high-grade, super-durable Kevlar-impregnated belt designed to handle the high output of the engine. The drive converter shaft is hard chrome-finished for added durability
- The CVT Belt Protection System helps prevent tire freewheel, improves rocky terrain performance and reduces belt overloading by using Throttle Position Sensor (TPS) data to compare throttle position with wheel speed
- Unnecessary belt wear is minimized by a system that reduces engine speed if the engine operates at high rpm for more than two seconds while the rear wheels are motionless.
- A large CVT intake duct, located to keep water and debris out, provides plenty of cooling air to the transmission
- Heat shielding on the exhaust pipe below the intake duct minimizes intake temperatures
Snorkel Air Intake
- Voluminous air cleaner box containing an oval filter with lots of surface area feeds the engine plenty of clean air while minimizing intake noise. Easy maintenance design promotes long engine life
Selectable Four-wheel-drive / Variable Front Differential Control
- Selecting two
- or four-wheel-drive is as easy as pressing a switch located on the dash, as the electrically selectable 2WD/4WD system engages instantly
- Limited-slip front differential reduces steering effort under normal four-wheel drive operation, while Variable Front Differential Control permits the rider to distribute torque equally to left and right front wheels for maximum traction via a hand lever located between the seats
- Rear gear case keeps wheels locked and turning together for maximum forward thrust
Wide-body Chassis
- Large-diameter thin-walled tubular steel frame combines high rigidity, light weight and mid-engine placement – a perfect combination for performance riding
- Tubular cab frame meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5, requirements as a roll-over protective structure (ROPS)
- Performance-focused suspension is designed with high-performance driving in mind
- Wide track helps provide a great ride, but the unit still fits in a standard pickup truck bed
- Chassis has 11.6 inches of ground clearance – a perfect compromise between great handling and the ability to clear tough off-road obstacles
- Narrow frame design maximizes the length of the front and rear suspension’s lower A-arms for excellent road handling performance and minimal geometry changes throughout the suspension’s travel
- Chassis serves up a near-perfect balance of bump absorption and steering control
- The tilt bed’s frame is highly rigid for added durability
- Inset headlights complement the modern, aggressive styling

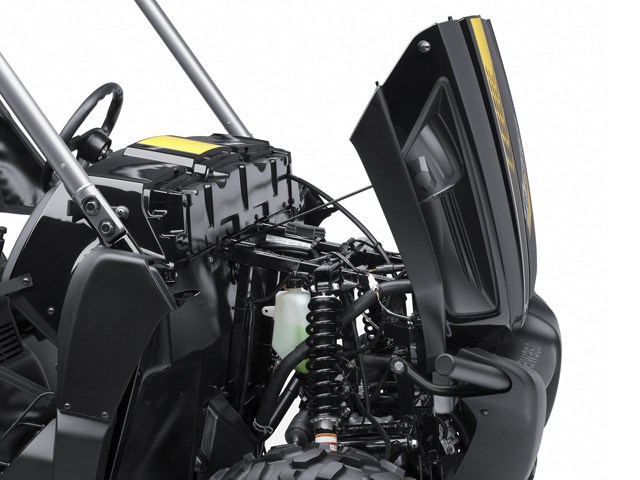

- Hinged, forward-tilting front hood enforces aggressive styling and allows quick access to the radiator and front suspension components for easier maintenance and suspension tuning
Sport-focused Suspension
- High-performance, single-chamber, preload-adjustable gas-charged Kayaba shocks provide excellent fade-resistant damping performance in the toughest conditions, while providing 7.5 inches of plush, controlled wheel travel

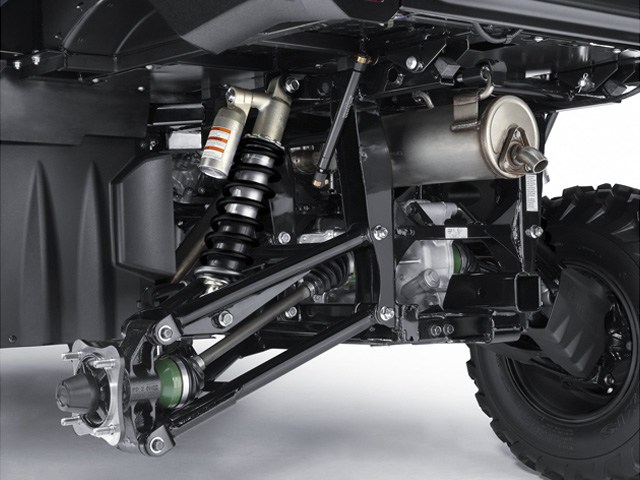

- Independent rear suspension provides the best balance of rider comfort and handling at high speeds, along with 7.5 inches of sport-tuned wheel travel.
- The preload-adjustable gas-charged Kayaba rear shocks feature piggyback reservoirs, further reducing the tendency of oil to froth under hard conditions, while a torsion bar out back helps keep body roll to a minimum
High-performance Brakes
- Dual front 200mm disc brakes gripped by rigid-mount 27mm twin-piston calipers provide powerful, fade-free braking and solid feel. Discs are tucked inside the wheels where they’re protected from debris
- Kawasaki’s sealed, oil-bathed multi-disc rear brake system provides maximum stopping power in almost any condition along with reduced maintenance thanks to being completely sealed
- The rear brake system’s compact design contributes to excellent ground clearance
Large 26-inch Tires
- Custom 26-inch MAXXIS tires specially developed for the Teryx™ side x sides maximize performance
- Mounted on 12-inch rims, the largest tires available in the side x side category provide outstanding rough terrain performance and obstacle clearance

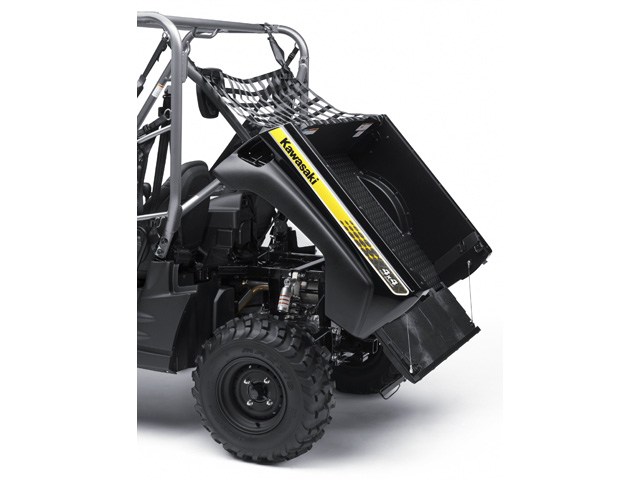

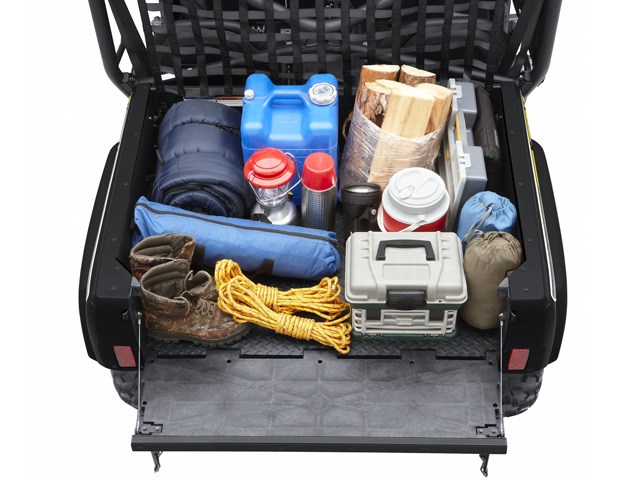

Tilting Cargo Bed
- With 500-pound capacity, tie-down hooks in all four corners, tilting bed, standard cargo net and generous dimensions, the Teryx is a highly functional and massively fun ride.
- Gas-assist struts keep the bed up for easy maintenance
- Reinforced bed frame offers substantial durability
Ergonomics
- Making maximum use of its cockpit space, the Teryx provides plenty of shoulder and legroom to comfortably accommodate two adults

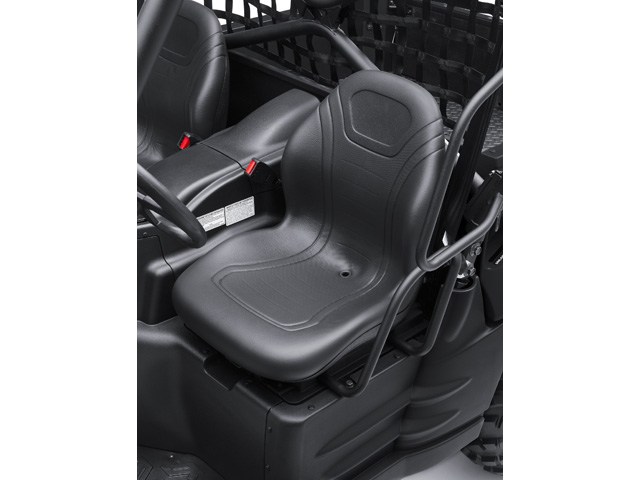

- Form-fitting bucket seats and retractable three-point seatbelts serve up a comfortable ride
- Padded steering wheel is positioned low for optimum control when sport riding, and provides additional driver protection
Multi-Function Digital Display
- Standard on all models, the Multi-Function Display includes a digital speedometer (mph or kph), clock, dual trip meters plus 2WD/4WD indicator, water temperature and fuel-injection warning indicators, digital fuel gauge, hour meter, parking brake indicator, CVT belt temperature warning, neutral, reverse and low oil-pressure warning lights
Bodywork
- Thermo-Plastic Olefin bodywork has a beautiful high-gloss finish that’s more scratch-resistant than the polyethylene used by some other side x sides, so the Teryx stays great-looking, longer
- Engine and undercarriage guards provide maximum protection from rocks and debris
- Teryx’s battery and electrical parts are located higher and further away from water and harm’s way
- Dual 40W headlights and 8/27W dual taillights mean you’ll see and be seen
Range / Transportability
- Large, 7.4 gal. (28L) fuel tank and excellent fuel efficiency provides the range campers and hunters need to get deep into the bush and back again
- Even with its wide track and large tires, the Teryx is compact enough to fit in the bed of most full-size pickup trucks
