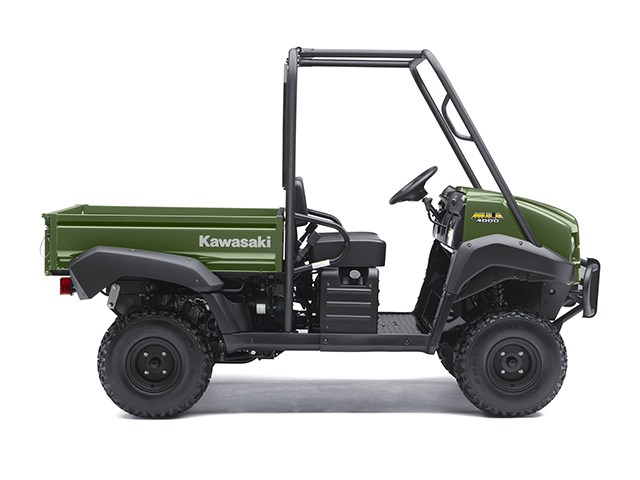

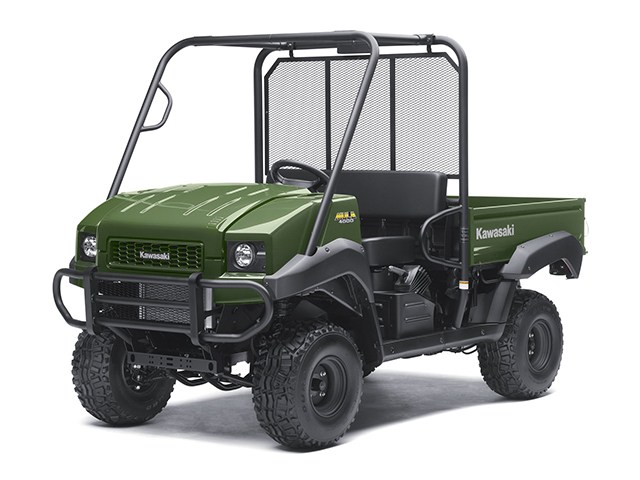

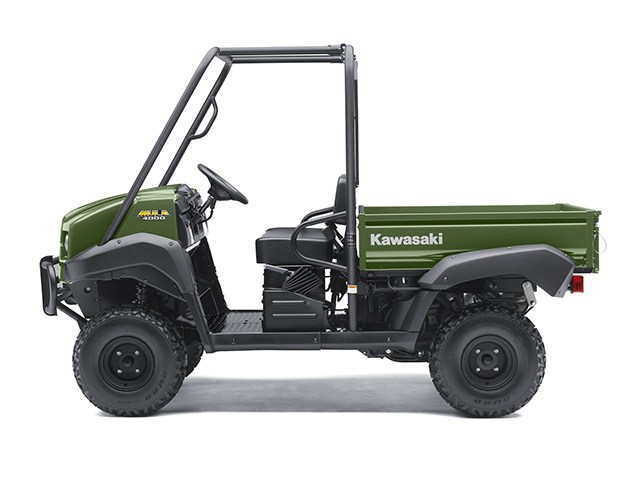

2013 Kawasaki MULE™ 4000

2013 Kawasaki MULE™ 4000
Scout Green
MSRP: $8,799.00
Manufacturer: Kawasaki
Condition: New

Description

The Kawasaki Mule™ 4000 is ready to work. As the foundation of Kawasaki’s full-sized 4000 series utility line, it offers all the hardware and technology you need to tackle really big jobs, including a heavy-duty chassis and a powerful industrial grade four-stroke V-twin engine with digital fuel injection. The Mule 4000 also offers serious towing capacity, a fully automatic transmission, locking rear differential and a tilting cargo bed.

At a glance…

  • New strong tubular steel front brush guard improves durability and helps protect the nose from trail debris and minor impacts
  • New easy to read digital fuel gauge and hour meter
  • New dash-mounted horn button eliminates unintended honking
  • New sport-style steering wheel is covered in softer material and 33% thicker than last year’s model for enhanced comfort
  • New 2” hitch receiver hitch allows towing of up to 1,200 lbs
  • Digital fuel injected four-stroke V-twin engine
  • Modern styling and low operating costs
  • User friendly dashboard and controls
  • Extremely strong large-diameter steel Roll Over Protective Structure (ROPS) meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5 requirements for wheeled tractors, and also meets FMVSS 216 roof crush resistance requirement

Specifications

Specifications

Engine
Four-stroke, liquid-cooled, overhead valve V-twin
Displacement
617cc
Bore x Stroke
76 x 68mm
Compression ratio
10.3: 1
Fuel injection
DFI® w/ (2) 34mm Mikuni throttle bodies
Air filter
Snorkel-type with cyclone-type two-stage dry replaceable element
Oil filter
Automotive-type spin-on canister
Ignition
Digital electronic
Electrical
12V DC, 18 amp-hour battery, alternator
Transmission
Continuously variable transmission (CVT) with forward and reverse
Final drive
Shaft, dual-mode rear differential
Exhaust
Muffler with USFS-approved spark arrestor
Front suspension / wheel travel
Independent, MacPherson strut / 3.9 in.
Rear suspension / wheel travel
Semi-independent, De Dion axle with leaf springs and shocks / 2.8 in.
Front Tire Size
23x11-10 tubeless
Rear Tire Size
23x11-10 tubeless
Steering
Rack and pinion
Brakes
Four-wheel hydraulic drums, sealed
Fuel capacity
6.3 gal.
Curb Weight
1,336 lbs.
Overall length
116.7 in.
Overall width
62.0 in.
Overall height
75.8 in.
Wheelbase
73.6 in.
Ground clearance
7.5 in.
Roll over protective structure (ROPS)
This structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5. This structure also meets FMVSS 216 Roof Crush resistance requirement
Cargo bed dimensions (LxWxH)
46.3 x 51.6 x 11.3 in. / 15.6 cu. ft.
Load capacity
1,330 lbs.
Cargo Bed Capacity
800 lbs.
Towing capacity
1,200 lbs.
Turning radius
11.0 ft.
Top speed
25 mph, governed
Lighting
(2) 35-watt sealed-beam headlights, (2) 5/21-watt tail/brake lights
Instruments
Parking brake warning light, coolant temperature warning light, horn, 12V DC outlet
Color Choices
Dark Royal Red, Scout Green
Warranty
12 Months
Good Times™ Protection Plan
12, 24, 36 or 48 months


Features

At a glance…

  • New strong tubular steel front brush guard improves durability and helps protect the nose from trail debris and minor impacts
  • New easy to read digital fuel gauge and hour meter
  • New dash-mounted horn button eliminates unintended honking
  • New sport-style steering wheel is covered in softer material and 33% thicker than last year’s model for enhanced comfort
  • New 2” hitch receiver hitch allows towing of up to 1,200 lbs
  • Digital fuel injected four-stroke V-twin engine
  • Modern styling and low operating costs
  • User friendly dashboard and controls
  • Extremely strong large-diameter steel Roll Over Protective Structure (ROPS) meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5 requirements for wheeled tractors, and also meets FMVSS 216 roof crush resistance requirement

Liquid-cooled, V-twin Engine

  • Industrial strength four-stroke, 617cc V-twin engine produces exceptional torque at low engine speeds
  • Modern four-stroke design with overhead valves for efficient running and good fuel economy
  • Large capacity radiator and fan maintain consistent engine temperatures, even in hot climates
  • Rubber engine mounts minimize vibration, noise and wear to maximize operation comfort and diminish fatigue

Digital Fuel Injection

  • Computer-controlled Digital Fuel injection (DFI®) system automatically compensates for atmospheric pressure, air and engine temperature for easy, prompt engine starting under a variety of conditions
  • Automatic fast idle speed control eliminates the need for a choke, allowing the operator to drive off immediately after a cold engine start
  • Throttle bodies feature sub-throttle valves for optimum performance and drivability. The sub-throttles are located behind the main throttle valves and controlled by the ECU for smooth throttle response
  • Automatic digital ignition system helps ensure smooth, efficient operation
  • Maximum engine speed is controlled by the ECU, eliminating the need for a mechanical governor
  • Offers easy engine operation and reduced maintenance requirements

Cab Frame Air Intake

  • Draws engine air and converter cooling air from the top of the cab frame where there is less dust, so the air filter stays cleaner longer

Environmentally Friendly Emissions

  • DFI precision reduces fuel consumption and cuts exhaust emissions
  • Positive crankcase pressure ventilation system sends blow-by gases back through the intake tract to be burned by the engine
  • Muffler features a U.S. Forest Service-approved spark arrestor

Kawasaki Automatic Power-Drive System (KAPS)

  • Fully automatic continuously variable transmission (CVT) features forward and reverse, and helps keep the engine in the right operating rpm for a variety of vehicle speeds, loads or terrain
  • The CVT has a wide spread of drive ratios for quick acceleration and ample pulling power
  • An open sided drive pulley cools better for longer belt life
  • Offers adjustable belt deflection

Dual-mode Differential

  • Dual-mode rear differential can be locked for extra pulling power and maximum traction or unlocked for more nimble handling, or when traversing delicate terrain

Independent Strut-type Front Suspension

  • MacPherson strut long-travel front suspension provides a comfortable ride and excellent load-carrying capability
  • Firm springs help prevent bottoming and provide increased ground clearance

DeDion Rear Suspension

  • Overload-style leaf springs can handle heavy loads, yet provide a smooth ride when the cargo box is empty
  • Semi-independent action offers improved handling over traditional leaf spring layouts

Four-wheel, Self-adjusting Sealed Hydraulic Drum Brakes

  • Four wheel brakes are self-adjusting
  • The brake drums have an added flange and seal to resist mud and water contamination
  • Low maintenance design

Wheels and Tires

  • 23-inch tires with stiff sidewalls for extra ground clearance and an improved ride
  • The rear wheel bearings use two rollers in one large bearing for added durability
  • The wheel bearing seals on all four wheels have three lips for better protection

Front Hood with Storage Tub

  • Offers quick, easy access with the pull of a dash-mounted knob
  • Deeper under hood storage tub holds cargo out of sight
  • Includes four D-rings for securing loads

Tilting Cargo Bed

  • Steel cargo bed can carry up to 800 pounds
  • Tilts for quick unloading
  • Thick tailgate panel and secure locking pins reduce noise and vibration, add durability
  • Adjustable bed latches

Rugged and Capable

  • New 2” receiver hitch allows towing of up to 1,200 pounds with optional Kawasaki draw bar
  • Durable bodywork features modern styling inspired by heavy-duty trucks
  • New strong tubular steel front guard improves durability and helps protect the nose from brush, trail debris and minor impacts
  • Roll Over Protective Structure (ROPS) meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5 requirements for wheeled tractors, and also meets FMVSS 216 roof crush resistance requirement
  • Durable chassis includes winch-ready mounts to simplify winch installation

Simple Maintenance

  • Oil dipstick and filler tube are located under the seat, for quick, easy access
  • Cyclone-type engine air cleaner has flow meter to indicate when filter requires maintenance
  • Convenient automotive-style fuse box uses easy-to-find blade-type fuses

Cab Features

  • New digital fuel gauge and hour meter makes it easier to see how much fuel is in the tank
  • New dash-mounted horn eliminates unintended honking while turning
  • New sport-style steering wheel is 33% thicker than last year’s model
  • Rack-and-pinion steering is light and precise
  • Dashboard has dual glove boxes and cupholders for both the driver and passenger
  • Comfortable bench seat can carry up to three occupants
  • 12V DC outlet with 10 amp capacity
  • Parking brake and coolant temperature warning lights are easier to see
  • Push button headlight switch activates 35-watt cat-eye headlights

Popular Accessory Items

  • Soft or Hard Top
  • Windshield
  • Winch
  • Enclosed Cab
  • Snow Plow

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.

Request Quote or More Information
