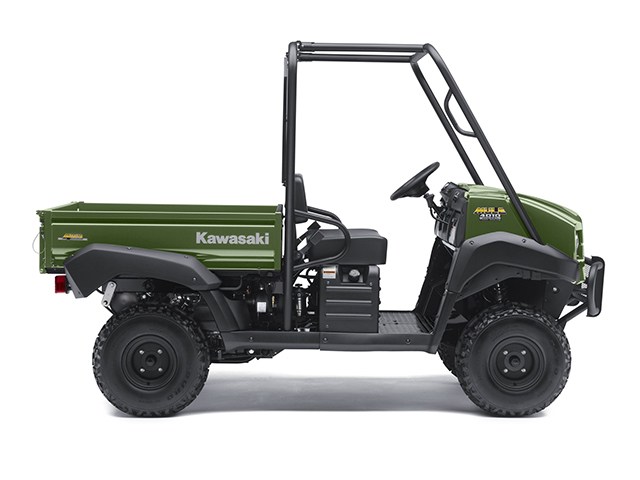

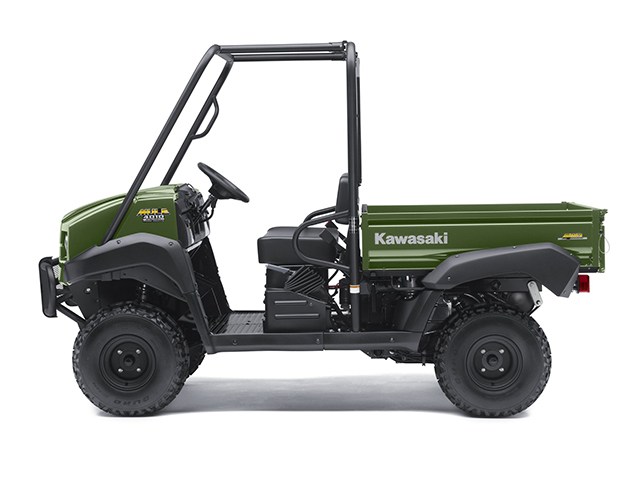

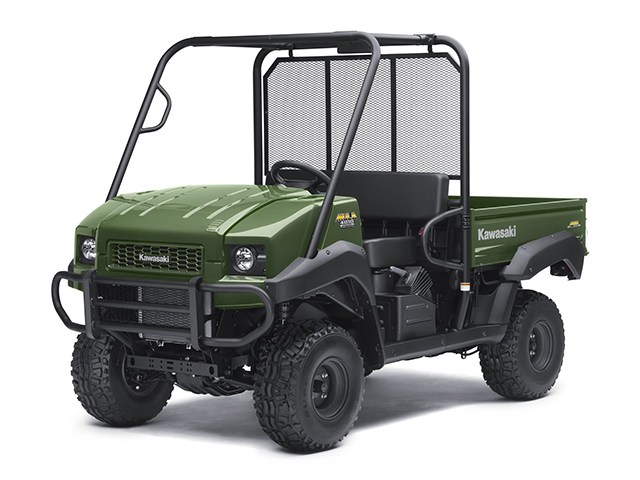

2013 Kawasaki MULE™ 4010 4X4 DIESEL

2013 Kawasaki MULE™ 4010 4X4 DIESEL
Scout Green
MSRP: $11,999.00
Manufacturer: Kawasaki
Condition: New

Description

If you need straightforward reliability in a vehicle that was designed by some of the finest heavy-duty engineers in the world, then you need a Diesel Mule side x side! In its purest form, that means a 2013 Kawasaki Mule™ 4010 4x4 Diesel. No other utility vehicle on this planet can match a Mule’s combination of strong Kawasaki engineering, ease of use and long term dependability.

At a glance…

  • New strong tubular steel front brush guard improves durability and helps protect the nose from trail debris and minor impacts
  • New easy to read digital fuel gauge and hour meter
  • New dash-mounted horn button eliminates unintended honking
  • New sport-style steering wheel is covered in softer material and 33% thicker than last year’s model for enhanced comfort
  • New 2” hitch receiver hitch allows towing of up to 1,200 lbs
  • Renowned diesel strength, performance, reliability and economy
  • Fully automatic transmission with selectable two
  • or four-wheel drive
  • Electric power steering system (EPS) provides light response with minimum kickback
  • Modern styling with user friendly dashboard and controls
  • Extremely strong large-diameter steel Roll Over Protective Structure (ROPS) meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5 requirements for wheeled tractors, and also meets FMVSS 216 roof crush resistance requirement

Specifications

Specifications

Engine
Four-stroke, liquid-cooled, three-cylinder, overhead valve diesel
Displacement
953cc
Bore x Stroke
72 x 78mm
Compression ratio
24.8:1
Air filter
Snorkel-type with cyclone-type two-stage dry replaceable element
Oil filter
Automotive-type spin-on canister
Fuel Injection
Denso VE injector
Ignition
Compression with glow plugs for starting
Electrical
12V DC, 52 amp-hour battery, 40 amp alternator
Transmission
Kawasaki Automatic Power-Drive System (KAPS), with reverse, dual range, 2WD/4WD
Final drive
Shaft, selectable four-wheel drive with dual-mode rear differential
Exhaust
Muffler with USFS-approved spark arrestor
Front suspension / wheel travel
Independent, MacPherson strut / 3.9 in.
Rear suspension / wheel travel
Semi-independent, De Dion axle with leaf springs and shocks / 2.8 in.
Front Tire Size
23x11-10 tubeless
Rear Tire Size
23x11-10 tubeless
Steering
Electric power steering assisted rack-and-pinion
Brakes
Four-wheel hydraulic drums, sealed
Fuel capacity
6.3 gal.
Curb weight
1,613 lbs.
Overall length
116.7 in.
Overall width
62.0 in.
Overall height
75.8 in.
Wheelbase
73.6 in.
Ground clearance
6.9 in.
Roll over protective structure (ROPS)
This structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5. This structure also meets FMVSS 216 Roof Crush resistance requirement
Cargo bed dimensions (LxWxH)
46.3 x 51.6 x 11.3 in. / 15.6 cu. ft.
Load capacity
1,632 lbs.
Cargo Bed Capacity
1,100 lbs.
Towing capacity
1,200 lbs.
Turning radius
11.2 ft.
Top speed
25 mph, governed
Lighting
(2) 35-watt sealed-beam headlight, (2) 5/21-watt tail/brake lights
Instruments
Parking brake warning light, coolant temperature warning light, horn, 12V DC outlet, speedometer
Color Choices
Dark Royal Red, Scout Green
Warranty
12 Months
Good Times™ Protection Plan
12, 24, 36 or 48 months


Features

At a glance…

  • New strong tubular steel front brush guard improves durability and helps protect the nose from trail debris and minor impacts
  • New easy to read digital fuel gauge and hour meter
  • New dash-mounted horn button eliminates unintended honking
  • New sport-style steering wheel is covered in softer material and 33% thicker than last year’s model for enhanced comfort
  • New 2” hitch receiver hitch allows towing of up to 1,200 lbs
  • Renowned diesel strength, performance, reliability and economy
  • Fully automatic transmission with selectable two
  • or four-wheel drive
  • Electric power steering system (EPS) provides light response with minimum kickback
  • Modern styling with user friendly dashboard and controls
  • Extremely strong large-diameter steel Roll Over Protective Structure (ROPS) meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5 requirements for wheeled tractors, and also meets FMVSS 216 roof crush resistance requirement

Engine

  • Liquid-cooled, three-cylinder diesel engine produces incredible torque: 38.3 lb-ft @ 2,800 rpm coupled with exceptional fuel economy
  • Perfect for commercial job sites where diesel fuel is readily available
  • Exhaust pipe routing allows easy hydraulic lift kit installation
  • Overhead valve design maximizes efficiency
  • Cast iron block and head provide extreme durability

Environmentally Friendly Emissions

  • Positive crankcase ventilation system sends blow-by gases to the intake tract to be burned in the engine
  • Muffler features a U.S. Forest Service-approved spark arrestor

Cyclone-Type Engine Air Cleaner

  • Cyclone design is effective and needs less frequent cleaning even in extremely dusty conditions
  • Restriction gauge tells when to change the filter
  • Donaldson® air cleaner has a replaceable paper element

Cab Frame Air Intake

  • Draws engine air and converter cooling air from the top of the cab frame where there is less dust, so the air filter stays cleaner longer

Heavy-Duty Battery and Alternator

  • 52 amp-hour battery ensures positive starts, while the high-output, 40-amp alternator keeps the battery charged

Kawasaki Automatic Power-Drive System (KAPS)

  • Fully automatic continuously variable transmission (CVT) features forward high/low and reverse, and helps keep the engine in the right operating rpm for a variety of vehicle speeds, loads or terrain
  • The CVT has a wide spread of drive ratios for quick acceleration and ample pulling power
  • Large drive and driven torque converters maximize engagement area of the unit’s strong drive belt for improved heat dissipation and added durability
  • High-flow cover helps cool the CVT while providing superb splash protection and waterproofing
  • Sheaves with high silicon type material for increased durability

Torque Converter Air Filter

  • Efficient intake cooling fan draws plenty of air into the CVT
  • Special air cleaner with easily replaceable filter element cuts torque converter wear by cooling it with filtered air

Dual-Mode Differential

  • Strong bevel gear set and rear axle for increased durability
  • Locked mode for maximum traction, unlocked mode to minimize ground disturbance

Limited-Slip Front Differential

  • Allows great traction with low steering effort

Four-Wheel Drive with Two-Speed Transfer Case

  • Selectable four-wheel drive gives the operator traction options
  • Shift to four-wheel drive and low range for maximum traction in adverse conditions, or select two-wheel drive and high range to cut gear wear and increase fuel economy

Electric Power Steering (EPS)

  • The EPS system reduces steering effort, especially at low speeds when turning effort is greatest
  • The electric motor’s inertia significantly reduces bump steer and kickback to the steering wheel caused by shocks to the wheels for a more comfortable and controlled ride
  • Input from vehicle speed and torque sensors determine the amount of steering assistance required from the system’s motor
  • No power steering pump means no power loss from the engine
  • EPS only operates when the engine is running to keep from draining the battery

Independent Strut-Type Front Suspension

  • MacPherson strut long-travel front suspension provides a comfortable ride and excellent load-carrying capability

DeDion Rear Suspension

  • Overload-style leaf springs can handle heavy loads, yet provide a smooth ride when the cargo box is empty
  • Semi-independent action

Self-Adjusting, Sealed Hydraulic Drum Brakes

  • Four wheel drum brakes are self-adjusting and feature extra sealing for protection against mud, dust and debris

Front Hood with Storage Tub

  • Large underhood storage tub holds cargo out of sight
  • Quick and easy access with a push-button latch
  • Includes four D-rings for securing loads

Tilting Cargo Bed

  • Steel cargo bed can carry up to 1,100 pounds and tilts for quick unloading
  • Thick tailgate panel and secure latching tailgate locking pins reduce vibration and noise, and add durability

Rugged and Capable

  • New 2” receiver hitch allows towing of up to 1,200 pounds with optional Kawasaki draw bar
  • Durable bodywork features modern styling inspired by heavy-duty trucks
  • New strong tubular steel front guard improves durability and helps protect the nose from brush, trail debris and minor impacts
  • Roll Over Protective Structure (ROPS) meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5 requirements for wheeled tractors, and also meets FMVSS 216 roof crush resistance requirement
  • Bench seat can carry up to three people
  • Durable chassis includes winch-ready mounts to simplify winch installation

Simple Maintenance

  • Crankcase oil level dipstick under the seat
  • Automotive-type, spin-on oil filter
  • Coolant, battery electrolyte level sight gauges

Cab Features

  • New digital fuel gauge and hour meter makes it easier to see how much fuel is in the tank
  • New dash-mounted horn eliminates unintended honking while turning
  • New sport-style steering wheel is 33% thicker than last year’s model
  • 12V DC outlet with 10-amp capacity
  • The 2WD / 4WD lever is mounted on the dash for easy access
  • Parking brake and coolant temperature warning lights are easy to see
  • Shift lever with Y-gate pattern eliminates need for High-Low switch lever
  • Push-button headlight switch activates 35-watt cat-eye headlights

Popular Accessory Items

  • Soft or Hard Top
  • Windshield
  • Winch
  • Enclosed Cab
  • Cab Heater
  • Snow Plow

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.

Request Quote or More Information
