2013 Kawasaki MULE™ 4010 TRANS4X4® DIESEL

2013 Kawasaki MULE™ 4010 TRANS4X4® DIESEL

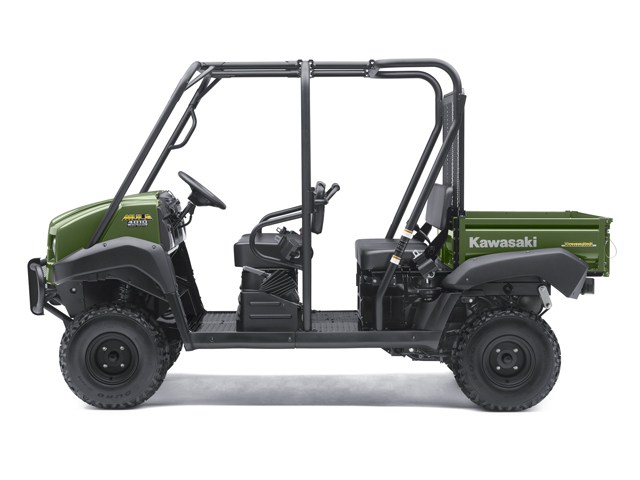

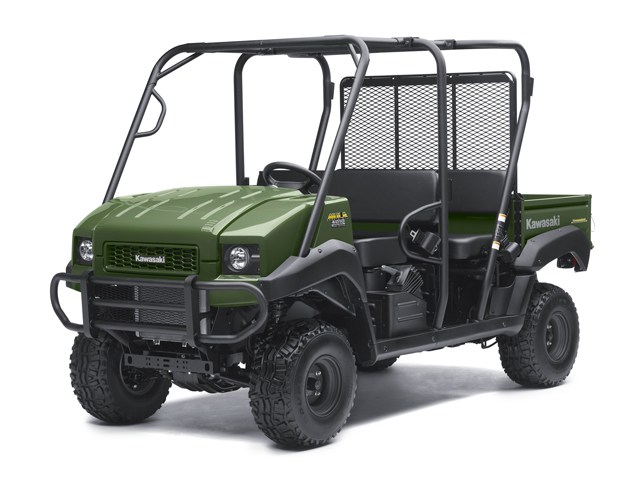

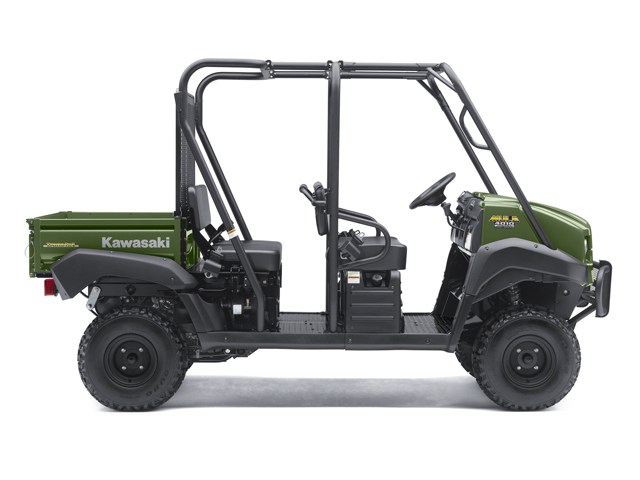

Scout Green
MSRP: $12,999.00
Manufacturer: Kawasaki
Condition: New

Description

Intelligent upgrades make the 2013 Kawasaki 4010 Trans4x4® Diesel the best Mule™ utility vehicle ever! It all starts with the incredible strength of a diesel Mule and builds with upgraded features, including a new tubular steel front brush guard that improves durability and helps protect the nose from trail debris and minor impacts, a new multi-function digital fuel level and hour meter, a new dash-mounted horn button that eliminates unintended beeps when turning, a new thicker sport-style steering wheel that’s more comfortable to grip, and a new 2” receiver hitch that allows towing of up to 1,200 lbs.

At a glance…

  • Renowned diesel performance, reliability and economy
  • Seating for two or four passengers via its easily transformable design
  • Fully automatic transmission with selectable two
  • or four-wheel drive
  • Modern styling and low operating costs
  • Electric power steering system (EPS)

Specifications

Specifications

Engine
Four-stroke, three-cylinder, liquid-cooled, OHV, diesel
Displacement
953cc
Bore x Stroke
72.0 x 78.0mm
Compression Ratio
24.8:1
Air Filter
Snorkel-type with cyclone-type two-stage dry replaceable element
Oil Filter
Automotive-type spin-on canister
Fuel Injection
Denso VE injector
Ignition
Compression with glow plugs for starting
Electrical
12V DC, 52 amp-hour battery, 40 amp alternator
Transmission
Kawasaki Automatic Power-Drive System (KAPS), with reverse, dual range, 2WD/4WD
Final Drive
Shaft, selectable four-wheel drive with dual-mode rear differential
Exhaust
Muffler with USFS-approved spark arrestor
Front suspension / wheel travel
Independent MacPherson strut / 3.9 in.
Rear suspension / wheel travel
Semi-independent, DeDion axle with leaf springs and shocks / 2.8 in.
Front Tire Size
23x11-10 tubeless
Rear Tire Size
23x11-10 tubeless
Steering
Electric power steering assisted rack-and-pinion
Brakes
Four-wheel hydraulic drums, sealed
Fuel capacity
6.3 gal.
Curb weight
1752 lbs.
Overall Length
128.5 in.
Overall Width
58.5 in.
Overall Height
75.8 in.
Wheelbase
85.2 in.
Ground clearance
7.1 in.
Roll over protective structure (ROPS)
This structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5. This structure also meets FMVSS 216 Roof Crush resistance requirement
Cargo bed dimensions (LxWxH)
50.4 x 47.6 x 11.3 in. / 15.6 cu. ft. (2-person) 30.3 x 47.6 x 11.3 in. / 10.2 cu. ft. (4-person)
Load capacity
1,632 lbs.
Cargo Bed Capacity
400 lbs. (4-person mode) / 1,100 lbs. (2-person mode)
Towing capacity
1,200 lbs.
Turning radius
12.8 ft.
Top Speed
25 mph (Governed)
Lighting
(2) 35-watt sealed-beam headlight, (2) 5/21-watt tail/brake lights
Instruments
Parking brake warning light, coolant temperature warning light, horn, 12V DC outlet, speedometer
Color Choices

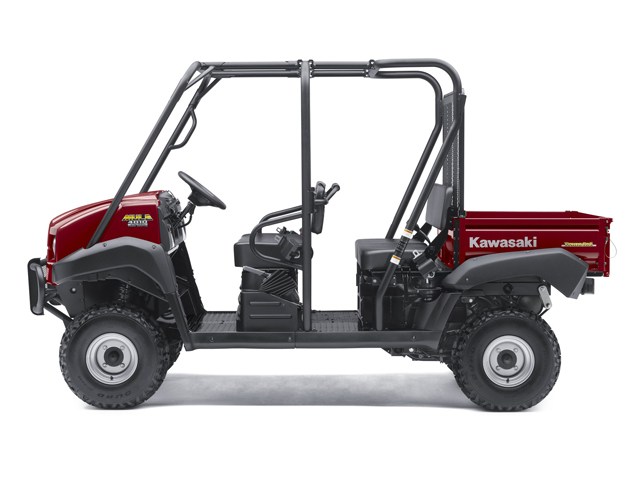

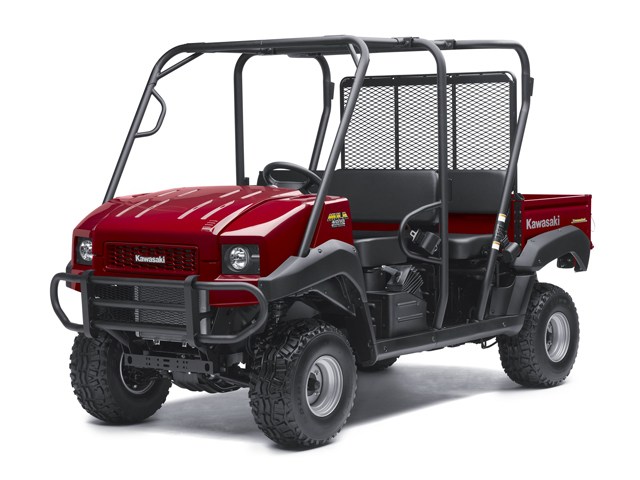

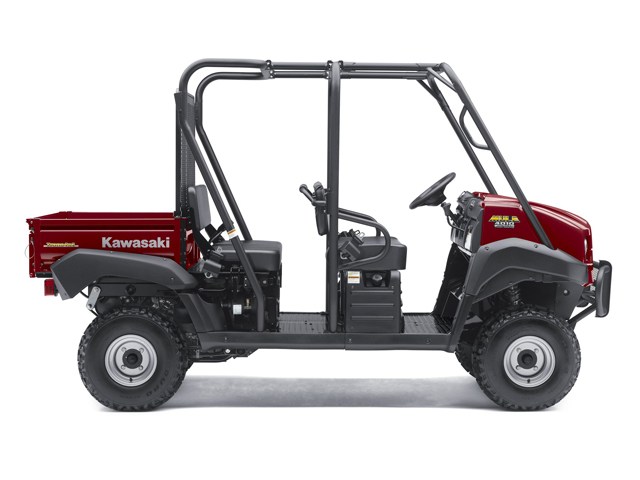

Dark Royal Red, Scout Green
Warranty
12 Months
Good Times™ Protection Plan
12, 24, 36 or 48 months


Features

At a glance…

  • Renowned diesel performance, reliability and economy
  • Seating for two or four passengers via its easily transformable design
  • Fully automatic transmission with selectable two
  • or four-wheel drive
  • Modern styling and low operating costs
  • Electric power steering system (EPS)

Four-Passenger, Off-Road, Four-Wheel Drive Utility Vehicle with...

  • Two rows of seats easily accommodate up to four persons
  • Rear seat can be folded down and the cargo bed expanded to carry larger payload – 1,100 pounds with two passengers, 400 pounds with four passengers
  • Retractable lap-belts

Engine

  • Liquid-cooled, three-cylinder diesel engine produces substantial torque – 38.3 lb-ft @ 2,800 rpm – and exceptional fuel economy
  • Perfect for commercial job sites where diesel fuel is readily available
  • Exhaust pipe routing allows easy hydraulic lift kit installation
  • Overhead valve design maximizes efficiency
  • Cast iron block and head help ensure extreme durability

Environmentally Friendly Emissions

  • Positive crankcase ventilation system sends blow-by gases to the intake tract to be burned in the engine
  • Muffler has a U.S. Forest Service-approved spark arrestor

Cyclone-Type Engine Air Cleaner

  • Cyclone design is effective and needs less frequent cleaning even in extremely dusty conditions
  • Restriction gauge tells when to change the filter
  • Donaldson® air cleaner has a replaceable paper element

Cab Frame Air Intake

  • Draws engine air and converter cooling air from the top of the cab frame where there is less dust, so air filters last longer

Heavy Duty Battery and Alternator

  • 52 amp-hour battery provides positive starts while the high-output, 40-amp alternator keeps the battery charged

Kawasaki Automatic Power-Drive System (KAPS)

  • Fully automatic continuously variable transmission (CVT) features forward high and low and reverse, and helps keep the engine in the right operating rpm for a variety of vehicle speeds, loads or terrain
  • The CVT has a wide spread of drive ratios for quick acceleration and ample pulling power
  • Tuned to accommodate higher loads
  • Large drive and driven torque converters maximize engagement area of the thick and strong drive belt for improved heat dissipation and added durability
  • High-flow cover helps cool the CVT while providing superb splash protection and waterproofing
  • Sheaves with high silicon type material for increased durability
  • An open-sided drive pulley cools better for longer belt life
  • Offers adjustable belt deflection

Torque Converter Air Filter

  • Efficient intake cooling fan draws plenty of air into the CVT
  • Special air cleaner with easily replaceable filter element cuts torque converter wear by cooling it with filtered air

Dual-Mode Rear Differential

  • Strong bevel gear set and rear axle offer increased durability
  • Locked mode maximizes traction, unlocked mode minimizes ground disturbance

Limited-Slip Front Differential

  • Allows great traction with little steering effort

Four-Wheel Drive with Two-Speed Transfer Case

  • Selectable four-wheel drive gives the operator traction options
  • Shift to four-wheel drive and low range for maximum traction in adverse conditions, or select two-wheel drive and high range to cut gear wear and increase fuel economy

Electric Power Steering (EPS)

  • The EPS system reduces steering effort, especially at low speeds when turning effort is greatest
  • The electric motor’s inertia significantly reduces bump steer and kickback to the steering wheel caused by shocks to the wheels for a more comfortable and controlled ride
  • Input from vehicle speed and torque sensors determine the amount of steering assistance required from the system’s motor
  • No power steering pump means no power loss from the engine
  • EPS only operates when the engine is running to keep from draining the battery

Independent Strut-Type Front Suspension

  • Stiffer springs prevent bottoming and increase ground clearance
  • Comfortable ride and excellent load-carrying capability

DeDion Rear Suspension

  • Overload-style leaf springs allow a comfortable unladen ride and is durable under maximum loads
  • Semi-independent action

Four-Wheel, Self-Adjusting Sealed Hydraulic Drum Brakes

  • Brake drums have an added flange and seal to keep out mud and water
  • Low maintenance and powerful
  • Keeps productivity up and operating costs down

Wheels and Tires

  • 23-inch tires have stiff sidewalls to improve the ride and add ground clearance
  • Rear wheel bearings use two rollers in one large bearing for added durability
  • Seals on all four wheels have three lips to better protect the wheel bearings

Front Hood with Storage Tub

  • Large under hood storage tub holds cargo out of sight
  • Offers quick, easy access with a push-button latch
  • Includes four D-rings for securing loads

Tilting Cargo Bed

  • Steel cargo bed can carry up to 1,100 pounds and tilts for quick unloading
  • Thick tailgate panel and secure latching tailgate locking pins reduce vibration and noise, and add durability

Rugged and Capable

  • New 2” receiver hitch allows towing of up to 1,200 pounds with optional Kawasaki draw bar
  • Durable bodywork features modern styling inspired by heavy-duty trucks
  • New strong tubular steel front guard improves durability and helps protect the nose from brush, trail debris and minor impacts
  • Roll Over Protective Structure (ROPS) meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5 requirements for wheeled tractors, and also meets FMVSS 216 roof crush resistance requirement
  • Durable chassis includes winch-ready mounts to simplify winch installation

Simple Maintenance

  • An automatic-style fuse box is convenient and uses blade-type fuses
  • Crankcase oil level dipstick under the seat
  • Automotive-type, spin-on oil filter
  • Coolant, battery electrolyte level sight gauges

Cab Features

  • New digital fuel gauge and hour meter makes it easier to see how much fuel is in the tank
  • New dash-mounted horn eliminates unintended honking while turning
  • New sport-style steering wheel is 33% thicker than last year’s model
  • 12V DC outlet with 10-amp capacity
  • The 2WD / 4WD lever is mounted on the dash for easier access
  • Parking brake and coolant temperature warning lights are easy to see
  • Shift lever with Y-gate pattern eliminates need for High-Low switch lever
  • Comfortable front and folding rear bench seats can carry up to four occupants
  • Push-button headlight switch activates 35-watt cat-eye headlights

Popular Accessory Items

  • Soft or Hard Top
  • Windshield
  • Winch
  • Enclosed Cab
  • Cab Heater
  • Snow Plow
