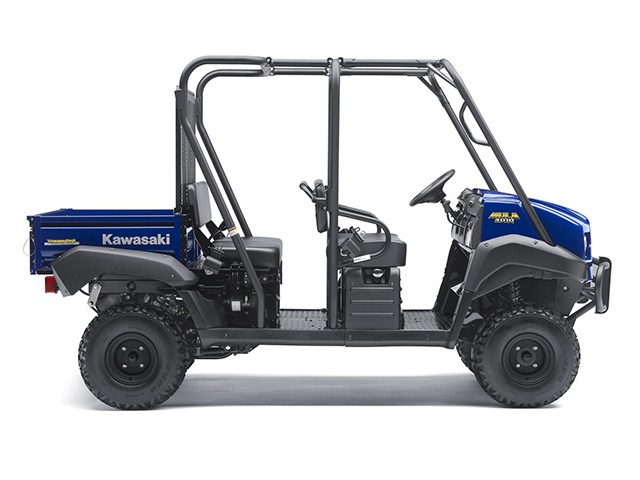

2013 Kawasaki MULE™ 4010 TRANS4X4®

2013 Kawasaki MULE™ 4010 TRANS4X4®

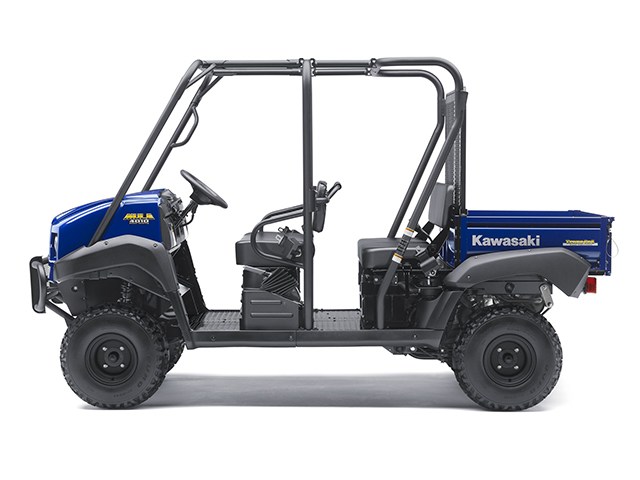

Adventure Blue
MSRP: $10,999.00
Manufacturer: Kawasaki
Condition: New

Description

Jobs change, one day you might need to haul materials around, and the next may find you transporting crew members to a remote job site. The Mule™ 4010 Trans4x4® utility vehicle is the perfect solution. As a tough two-seater, the Mule 4010 Trans4x4 can haul a serious amount of lumber, tools, or hay around the farm or construction site. But if job requirements suddenly change, it easily transforms into a four passenger transport in just a few quick steps, making it one of the most versatile vehicles in its class. No extra parts to remove, no extra tools required.

At a glance…

  • Easily transformable design allows seating for two or four passengers
  • Easily selectable four-wheel drive
  • Optional SE two-tone paint for maximum style
  • New strong tubular steel front brush guard improves durability and helps protect the nose from trail debris and minor impacts
  • New easy to read digital fuel gauge and hour meter
  • New dash-mounted horn button eliminates unintended honking
  • New sport-style steering wheel is covered in softer material and 33% thicker than last year’s model for enhanced comfort
  • New 2” hitch receiver hitch allows towing of up to 1,200 lbs.
  • Digital fuel injected V-twin power
  • Fully automatic transmission with selectable two
  • or four-wheel drive
  • Electric power steering system (EPS)
  • Modern styling and low operating costs
  • Extremely strong large-diameter steel Roll Over Protective Structure (ROPS) meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5 requirements for wheeled tractors, and also meets FMVSS 216 roof crush resistance requirement

Specifications

Specifications

Engine
Four-stroke, liquid-cooled, overhead valve V-twin
Displacement
617cc
Bore x Stroke
76 x 68mm
Compression Ratio
10.3:1
Fuel injection
DFI® w/ (2) 34mm Mikuni throttle bodies
Air Filter
Snorkel-type with cyclone-type two-stage dry replaceable element
Oil Filter
Automotive-type spin-on canister
Ignition
Digital electronic
Electrical
12V, 18 amp-hour battery, alternator
Transmission
Continuously variable transmission (CVT) with high and low range, forward, neutral and reverse
Final Drive
Shaft, selectable four-wheel drive with dual-mode rear differential
Exhaust
Muffler with USFS-approved spark arrestor
Front suspension / wheel travel
Independent, MacPherson strut / 3.9 in.
Rear suspension / wheel travel
Semi-independent, DeDion axle with leaf springs and shocks / 2.8 in.
Front Tire Size
23x11-10 tubeless
Rear Tire Size
23x11-10 tubeless
Steering
Electric power assisted rack-and-pinion
Brakes
Four-wheel hydraulic drums, sealed
Fuel capacity
6.3 gal.
Curb weight
1,586.9 lbs.
Overall Length
128.5 in.
Overall Width
58.5 in.
Overall Height
75.8 in.
Wheelbase
85.2 in.
Ground clearance
7.1 in.
Roll over protective structure (ROPS)
This structure meets ROPS requirements for wheeled tractors under SAE J1194, 7.1.1, 7.1.2, and 7.5. This structure also meets FMVSS 216 Roof Crush resistance requirement
Cargo bed dimensions (LxWxH)
50.4 x 47.6 x 11.3 in. / 15.6 cu. ft. (2-passenger mode); 30.3 x 47.6 x 11.3 / 10.2 cu. ft. (4-passenger mode)
Load capacity
1,330 lbs.
Cargo Bed Capacity
400 lbs. (4-passenger mode) / 800 lbs. (2-passenger mode)
Towing capacity
1,200 lbs.
Turning radius
12.5 ft.
Top Speed
25 mph (Governed)
Lighting
(2) 35-watt sealed-beam headlights, (2) 5/21-watt tail/brake lights
Instruments
Parking brake warning light, coolant temperature warning light, horn, 12V DC outlet, speedometer
Color Choices
Adventure Blue, Scout Green, Super Black/Firecracker Red(SE), Realtree® APG™ HD® Camouflage
Warranty
12 Months
Good Times™ Protection Plan
12, 24, 36 or 48 months


Features

At a glance…

  • Easily transformable design allows seating for two or four passengers
  • Easily selectable four-wheel drive
  • Optional SE two-tone paint for maximum style
  • New strong tubular steel front brush guard improves durability and helps protect the nose from trail debris and minor impacts
  • New easy to read digital fuel gauge and hour meter
  • New dash-mounted horn button eliminates unintended honking
  • New sport-style steering wheel is covered in softer material and 33% thicker than last year’s model for enhanced comfort
  • New 2” hitch receiver hitch allows towing of up to 1,200 lbs.
  • Digital fuel injected V-twin power
  • Fully automatic transmission with selectable two
  • or four-wheel drive
  • Electric power steering system (EPS)
  • Modern styling and low operating costs
  • Extremely strong large-diameter steel Roll Over Protective Structure (ROPS) meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5 requirements for wheeled tractors, and also meets FMVSS 216 roof crush resistance requirement

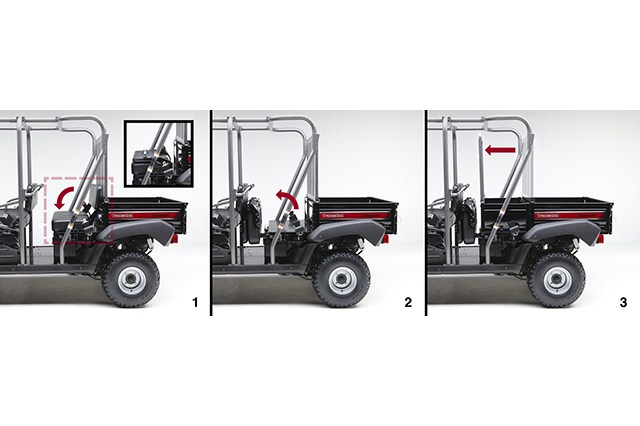

Transformable Cargo Bed

  • Two rows of seats easily accommodate up to four people
  • Transformable from a four-passenger/short-bed into a two-passenger long-bed with the rear seat folded down and the cargo bed expanded to carry larger payload – from 400 pounds of cargo with four passengers up to 800 pounds with two passengers
  • Rear bench seat includes retractable seat belts and padded rear-passenger grab handle

Liquid Cooled V-Twin Engine

  • Industrial strength four-stroke, 617cc V-twin engine produces exceptional torque at low engine speeds
  • Modern four-stroke design with overhead valves for efficient running and good fuel economy
  • Large capacity radiator and fan maintain consistent engine temperatures, even in hot climates
  • Rubber engine mounts minimize vibration, noise and wear to maximize operation comfort and diminish fatigue

Environmentally Friendly Emissions

  • DFI precision reduces fuel consumption and cuts exhaust emissions
  • Positive crankcase ventilation system sends blow-by gases to the intake tract to be burned in the engine
  • Muffler features a U.S. Forest Service-approved spark arrestor

Kawasaki Automatic Power-Drive System (KAPS)

  • Fully automatic continuously variable transmission (CVT) features forward high and low and reverse, which helps keep the engine in the right operating rpm for a variety of vehicle speeds, loads or terrain
  • The CVT has a wide spread of drive ratios for quick acceleration and ample pulling power
  • Tuned to accommodate higher loads
  • Large drive and driven torque converters maximize engagement area of the thick and strong drive belt for improved heat dissipation and added durability
  • High-flow cover helps cool the CVT while providing superb splash protection and waterproofing
  • Sheaves with high silicon type material for increased durability
  • An open-sided drive pulley offers better cooling for longer belt life
  • Offers adjustable belt deflection

Cab Frame Air Intake

  • Draws engine air and converter cooling air from the top of the cab frame where there is less dust, so the air filter stays cleaner longer

Torque Converter Air Filter

  • Efficient intake cooling fan draws plenty of air into the CVT
  • Special air cleaner with easily replaceable filter element cuts torque converter wear by cooling it with filtered air

Four-Wheel Drive with Two-Speed Transfer Case

  • Selectable four-wheel drive gives the operator traction options
  • Shift to four-wheel drive and low range for maximum traction in adverse conditions, or select two-wheel drive and high range to cut gear wear and increase fuel economy

Dual-Mode Rear Differential

  • Dual-mode rear differential can be locked for extra pulling power and maximum traction, or unlocked when traveling across delicate terrain

Electric Power Steering (EPS)

  • The EPS system reduces steering effort, especially at low speeds when turning effort is greatest
  • Electric motor’s inertia significantly reduces bump steer and kickback to the steering wheel caused by shocks to the wheels for a more comfortable and controlled ride
  • Input from vehicle speed and torque sensors determine the amount of steering assistance required from the system’s motor
  • No power steering pump means no power loss from the engine
  • EPS only operates when the engine is running to keep from draining the battery

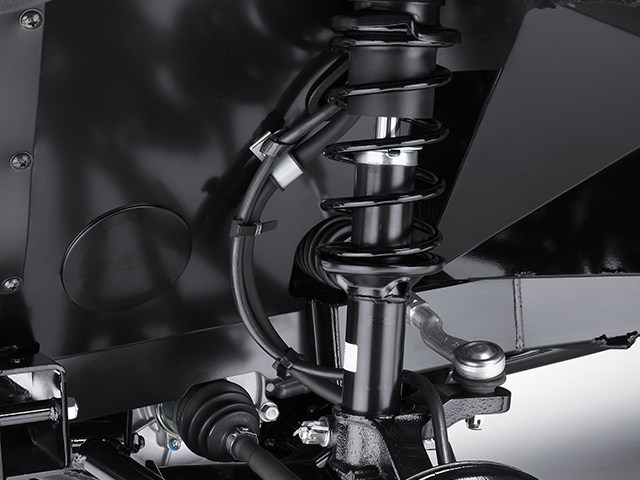

Independent Strut-Type Front Suspension

  • MacPherson strut long-travel front suspension provide a comfortable ride and excellent load-carrying capability
  • Stiffer springs prevent bottoming and increase ground clearance

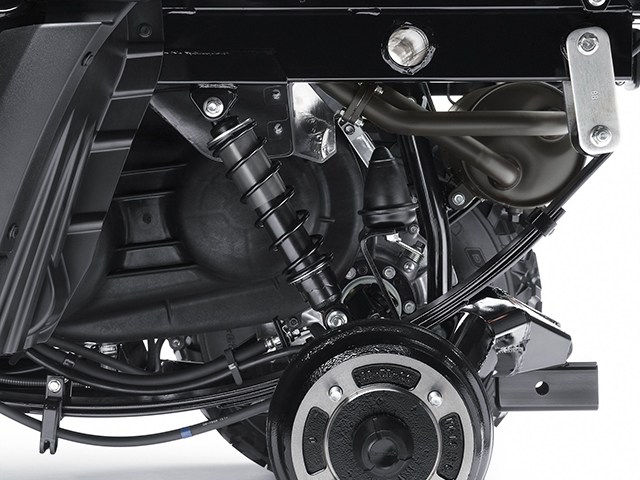

DeDion Rear Suspension

  • Overload-style leaf springs can handle heavy loads, yet provide a smooth ride when the cargo box is empty
  • Semi-independent action

Four-Wheel, Self-Adjusting Sealed Hydraulic Drum Brakes

  • Powerful, low maintenance four wheel brakes are self-adjusting and feature extra sealing for protection against mud, dust and debris
  • Brake drums have an added flange and seal to resist mud and water

Wheels and Tires

  • 23-inch tires with stiff sidewalls for an improved ride and added ground clearance
  • Rear wheel bearings use two rollers in one large bearing for added durability
  • Durable wheel bearings seals on all four wheels have three lips for better protection

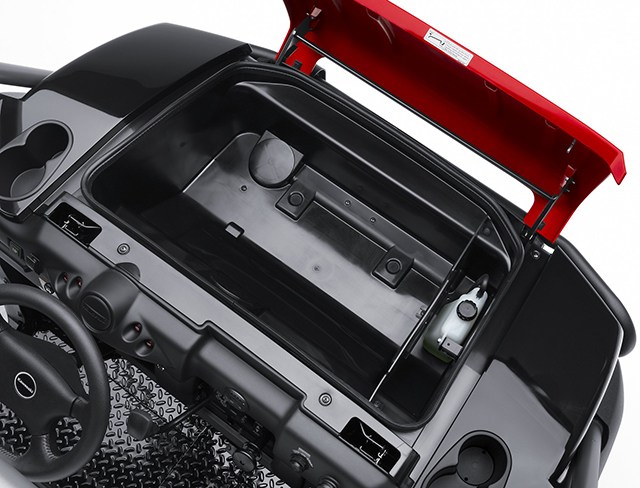

Front Hood with Storage Tub

  • Large under hood storage tub holds cargo out of sight
  • Offers quick, easy access with a push-button latch
  • Includes four D-rings for securing loads

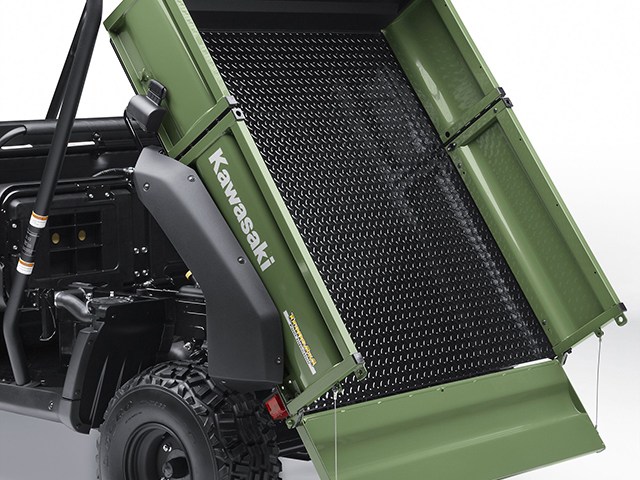

Tilting Cargo Bed

  • Steel cargo bed can carry up to 800 pounds and tilts for quick unloading
  • Thick tailgate panel and secure latching tailgate locking pins reduce vibration and noise, and add durability

Rugged and Capable

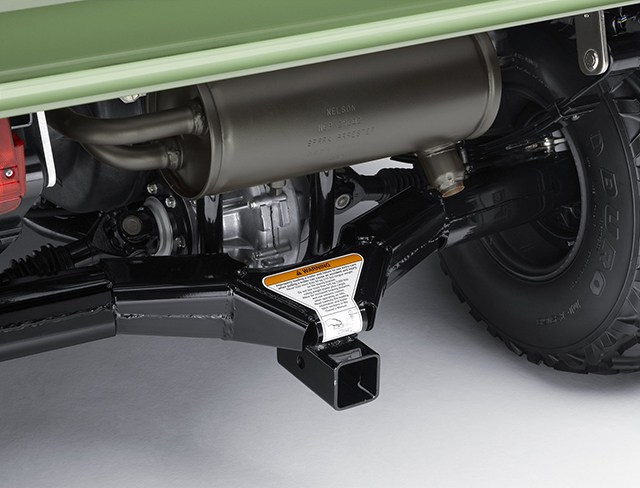

  • New 2” receiver hitch allows towing of up to 1,200 pounds with optional Kawasaki draw bar

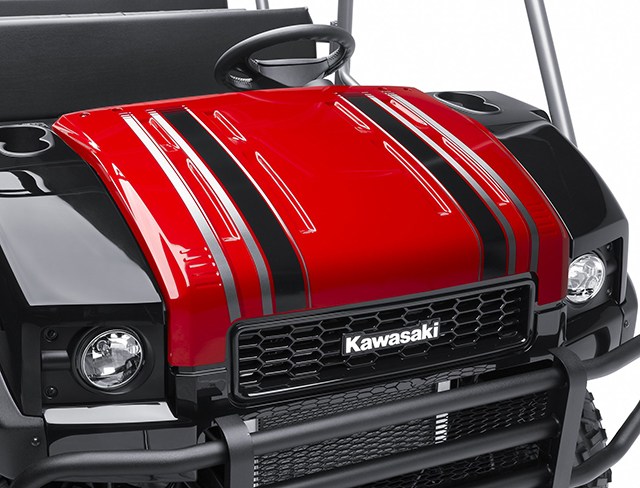

  • Durable bodywork features modern styling inspired by heavy-duty trucks and is available in a SE version with a high-quality two-tone finish

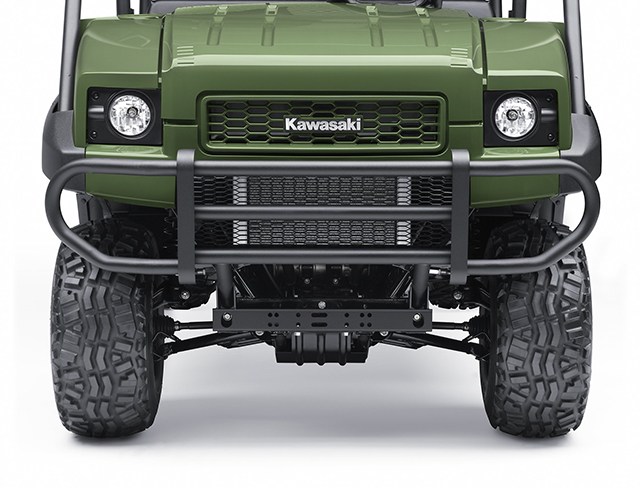

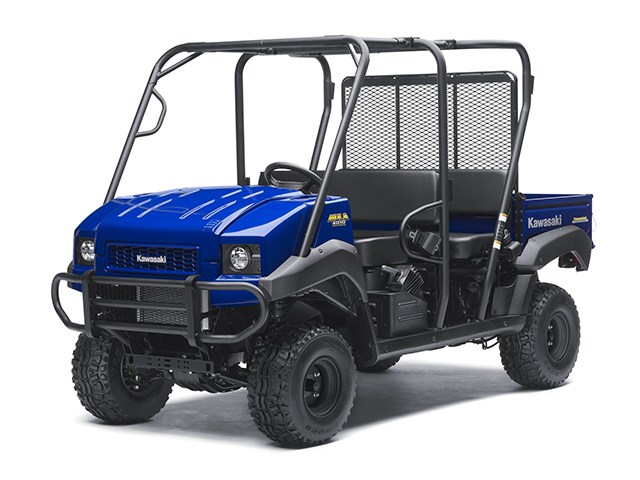

  • New strong tubular steel front guard improves durability and helps protect the nose from brush, trail debris and minor impacts
  • Roll Over Protective Structure (ROPS) meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5 requirements for wheeled tractors, and also meets FMVSS 216 roof crush resistance requirement
  • Durable chassis includes winch-ready mounts to simplify winch installation

Front Hood with Storage Tub

  • Large under hood storage tub holds cargo out of sight
  • Offers quick, easy access with a push-button latch
  • Includes four D-rings for securing loads

Simple Maintenance

  • The oil dipstick and filler tube are accessed under the seat
  • Cyclone-type engine air cleaner has meter to indicate when to replace the filter
  • An automotive-style fuse box is convenient and uses blade-type fuses

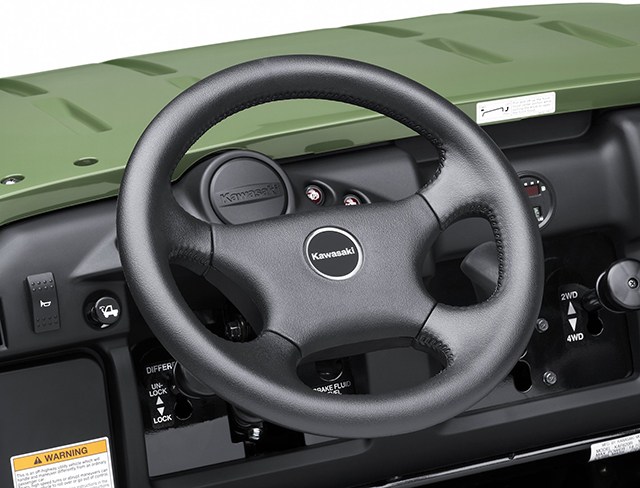

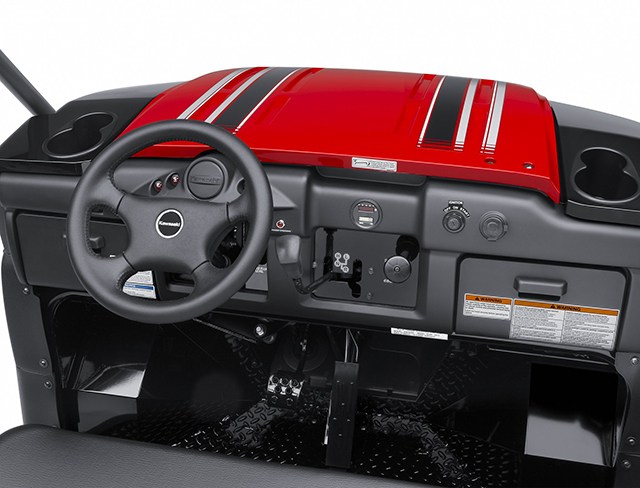

Cab Features

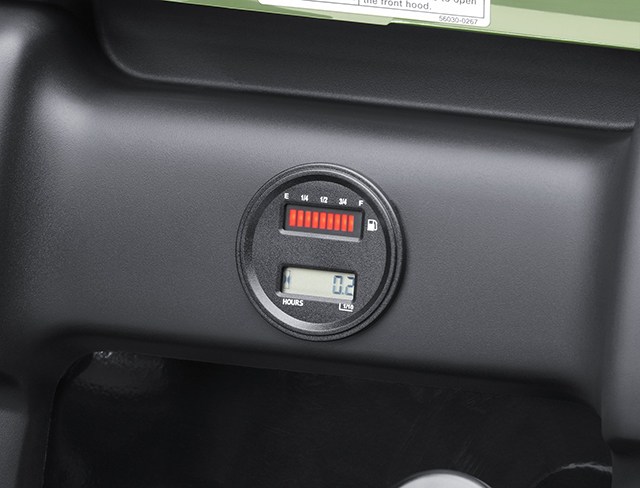

  • New digital fuel gauge and hour meter makes it easier to see how much fuel is in the tank

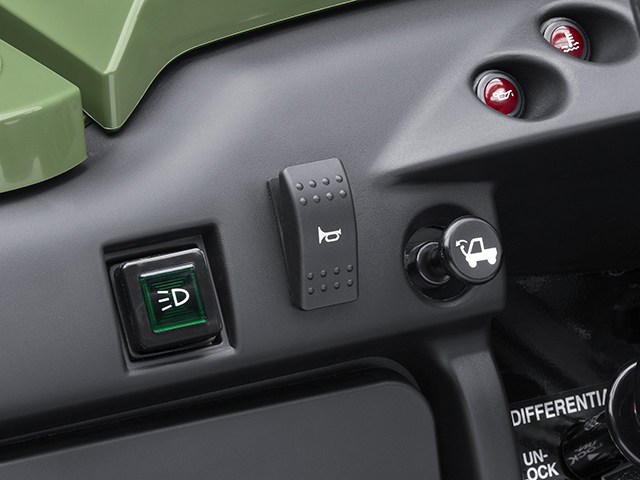

  • New dash-mounted horn eliminates unintended honking while turning
  • New sport-style steering wheel is 33% thicker than last year’s model
  • 12V DC outlet with 10-amp capacity
  • The 2WD / 4WD lever is mounted on the dash for easy access

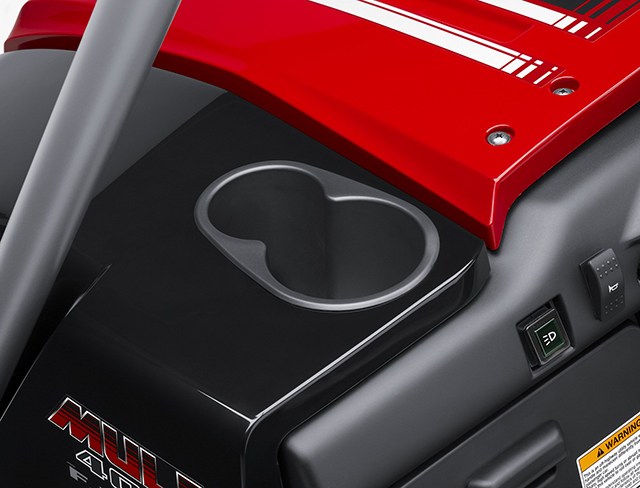

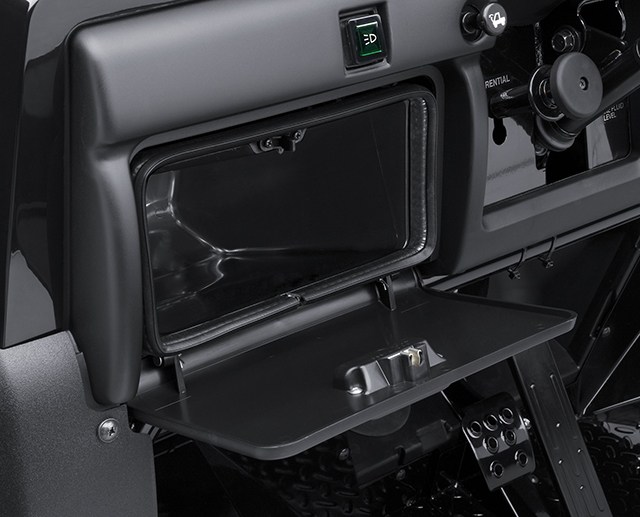

  • Dashboard has dual glove boxes and cupholders for both the driver and passenger
  • Parking brake and coolant temperature warning lights are easy to see
  • Shift lever with Y-gate pattern eliminates need for High-Low switch lever
  • Push-button headlight switch activates 35-watt cat-eye headlights
  • Hour meter and a horn are standard equipment

Popular Accessory Items

  • Soft or Hard Top
  • Windshield
  • Winch
  • Enclosed Cab
  • Cab Heater
  • Snow Plow

Digital Fuel Injection

  • Computer-controlled Digital Fuel Injection (DFI®) system automatically compensates for atmospheric pressure, air and engine temperature for easy, prompt engine starting under a variety of conditions
  • Automatic fast idle speed control eliminates the need for a choke, allowing the operator to drive off immediately after a cold engine start
  • Throttle bodies feature sub-throttle valves for optimum performance and drivability. The sub-throttles are located behind the main throttle valves and controlled by the ECU for smooth throttle response
  • Automatic digital ignition system helps ensure smooth, efficient operation
  • Maximum engine speed is controlled by the ECU, eliminating the need for a mechanical governor
  • Offers easy engine operation and reduced maintenance requirements
